60Hz IP67 Waterproof LED Driver 150W 6.5A with Single Output 24V

Name: 60Hz IP67 Waterproof LED Driver 150W 6.5A with Single Output 24V
Brand: all-electronics-online.com
SKU: 832043575
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 10-12/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WP-150W
Package:	White Box
Dimming Range:	5%-100%
Output Power:	150W
Warranty:	5years
Efficiency:	86%
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Brand:	Runled

Product Description

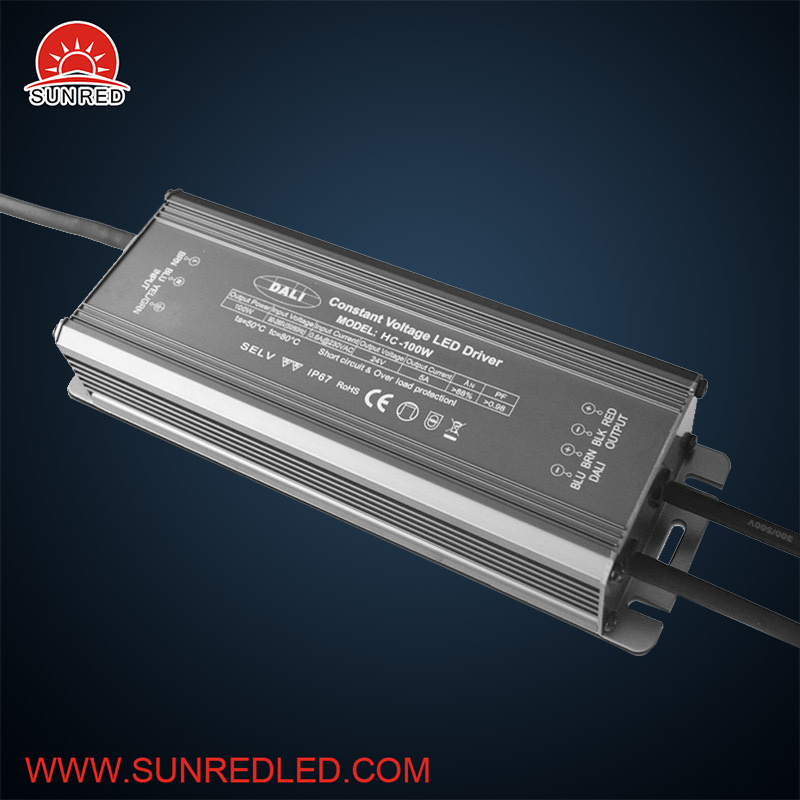

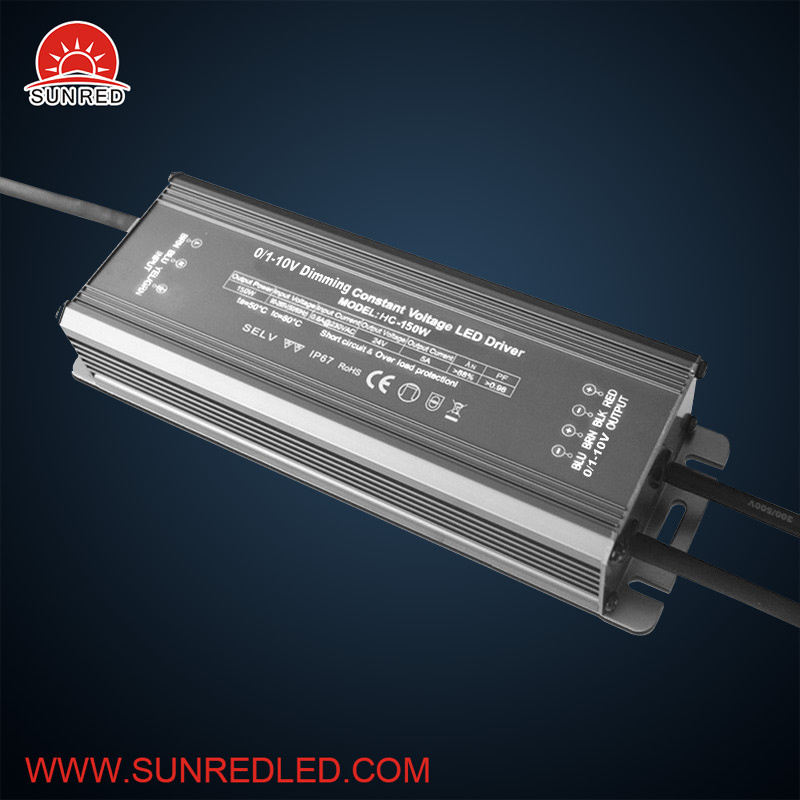

60Hz IP67 Waterproof LED Driver 150W 6.5A With Single Output
Over-voltage Protection Waterproof LED Driver Power Supply 150W 24VDC 6.5A IP67 EN60950-1
Competitive Advantage:
•IP67 protection grade •100% load test, b•Full range of input voltage •output voltage accurate and stable •Output over-voltage, over-current and short-circuit protection •Output low ripple and noise
•Three year warranty •Average working no trouble >50, 000 hours

IP67 Waterproof LED Driver 150W 6.5A With Single Output , 24v LED Driver
constant voltage
Model No.:WP-150W
Input Voltage Range:100-240V/AC
AC Frequency:48-62Hz
output model :constant voltage
output current :12.5.A/6.25A/
no load voltage 12V.24V.
on load voltage 12V/24V
output power 150w
power factory >0.95
efficiency 80%-86%
dimension 210*68*38mm

Model and operating parameters
Constant voltage

WP-150W	triac dimmable Non dimmable 0-10v dimmable dali dimmable	100-240	150	12.5A	12V±5%	12V±5%	>0.95	80-86%
				6.25A	24V±5%	24V±5%
				3.125A	48V±5%	48V±5%

We can make 6W to 300w led driver. We have 5 kinds of led drivers or led power supply:

1. NON dimmable led driver

2. TRIAC dimmable led driver,

3. 0-10v dimmable led driver,

4. PWM dimmable led driver

5. and DALI dimmable led drivers.

Constant current and constant voltage both ok.

If you are interested in our products pls feel free to contact me at

SUNRED LED Co., Limited!

We are LED driver manufacturer and LED car lighting trader located in Shenzhen, China

Which established in 2017.

Our main products are

0-10V/PWM dimmable drivers.

TRIAC dimmable LED driver,

DALI dimmable LED driver

IP67 Waterproof LED power supply

Low voltage LED transformer

LED car lighting

We have many good partners and suppliers, all of our products are with certificates,

CE EMC LVD TUV for Europ and SAA for Australia, For America market we have ETL UL certificates.

Also we can offer you good price, acceptable lead time and excellent after sale service.

Sunred LED, this young and flexible company will keep the innovation and honest in heart. To built a long good and mutual business relationship with you. Always fighting to prop the hope of green and lighten the future of the world.
