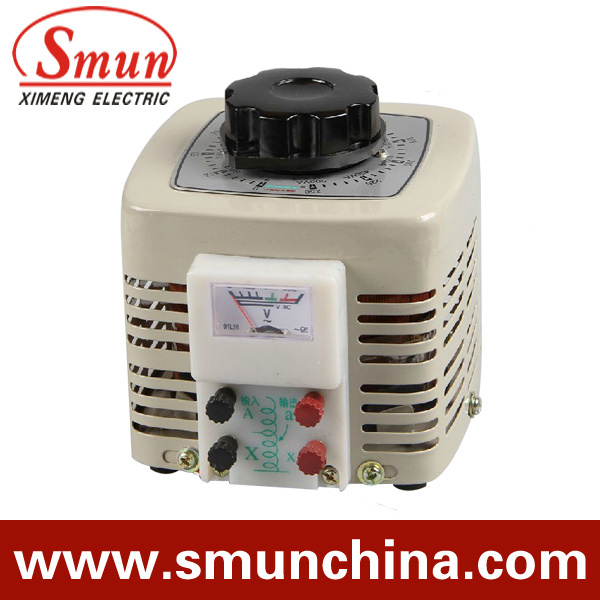

| Prod Model: |
TDGC2-60KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
60kVA |
| Input Voltage: |
220VAC |
| Output Voltage: |
0~250VAC |
| Cooling: |
Dry Type Self Cooling |
| Output AMP: |
40 AMP |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
| Frequency: |
Industrial Frequency |
Product Description
TDGC, TSGC Series voltage regulator, can successively adjust the output voltage with a beautiful shape, do not wave distortion, small size, light weight, high efficiency, easy to use, reliable operation, and other characteristics of its superior performance can be widely used in industry ( such as chemical industry, metallurgy industry, apparatus & meter, mechanical and electrical equipment industry, and light industry, etc. ), scientific experiment, public equipment and household electrical appliance to voltage regulate, temperature control, light change and power control. It is an ideal AC voltage regulator.
TDGC2, TSGC2, TDGC2J, TSGC2J is series energy-saving voltage regulator are made of imported silicon steel, it can successively adjust the output voltage(single-phase 0~250V, three-phase(0~430V), with the features of no waveform distortion, small volume, light weight, high efficiency, convenient use, reliable performance and so on
ModelInput voltOutput volt
TDGC2-0.2KVAsingle phase 220V0~250V
TDGC2-0.5KVAsingle phase 220V
TDGC2-1KVAsingle phase 220V
TDGC2-2KVAsingle phase 220V
TDGC2-3KVAsingle phase 220V
TDGC2-5KVAsingle phase 220V
TDGC2-10KVAsingle phase 220V
TDGC2-15KVAsingle phase 220V
TDGC2-20KVAsingle phase 220V
TDGC2-30KVAsingle phase 220V
TDGC2J-0.5KVAsingle phase 220V0~250V
TDGC2J-1KVAsingle phase 220V
TDGC2J-2KVAsingle phase 220V
TDGC2J-3KVAsingle phase 220V
TDGC2J-5KVAsingle phase 220V
TDGC2J-15KVAsingle phase 220V
TSGC2-1.5KVAthree phase 380V0~430V
TSGC2-3KVAthree phase 380V
TSGC2-9KVAthree phase 380V
TSGC2J-6KVAthree phase 380V0~430V
TSGC2J-9KVAthree phase 380V
TSGC2J-15KVAthree phase 380V
TSGC2J-30KVAthree phase 380V
|
Phase NO |
1 |
3 |
|
Frequency |
50HZ |
50HZ |
|
Rated input voltage |
220V |
380V |
|
Output voltage range |
0-250V |
0-430V |
|
Model |
Input volt |
Output volt |
Frequency |
Output current |
|
sinlge phase voltage regulator |
|
|
TDGC2-0.2KVA |
220V |
0~250V |
50/60Hz |
0.8A |
|
TDGC2-0.5KVA |
2A |
|
TDGC2-1KVA |
4A |
|
TDGC2-2KVA |
8A |
|
TDGC2-3KVA |
12A |
|
TDGC2-5KVA |
20A |
|
TDGC2-10KVA |
40A |
|
TDGC2-15KVA |
60A |
|
TDGC2-20KVA |
80A |
|
TDGC2-30KVA |
120A |
|
TDGC2J-0.5KVA |
2A |
|
TDGC2J-1KVA |
4A |
|
TDGC2J-2KVA |
8A |
|
TDGC2J-3KVA |
12A |
|
TDGC2J-5KVA |
20A |
|
TDGC2J-15KVA |
40A |
|
three phase voltage regulator |
|
|
TSGC2-1.5KVA |
220/380 |
0~430 |
50/60Hz |
2A |
|
TSGC2-3KVA |
4A |
|
TSGC2-9KVA |
12A |
|
TSGC2J-6KVA |
8A |
|
TSGC2J-9KVA |
12A |
|
TSGC2J-15KVA |
20A |
|
TSGC2J-30KVA |
40A |
