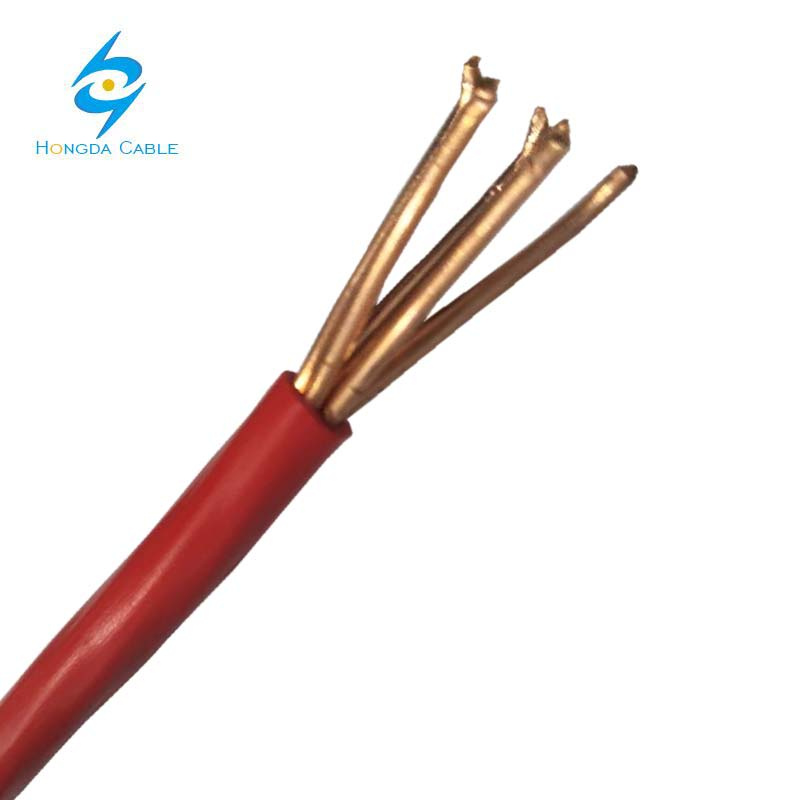

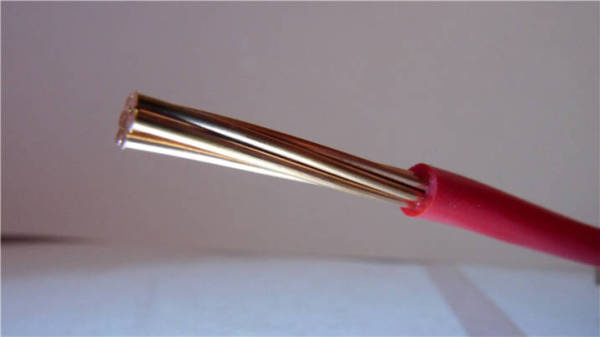

7 Stranded PVC Insulated Copper Electrical Wire

Name: 7 Stranded PVC Insulated Copper Electrical Wire
Brand: all-electronics-online.com
SKU: 732640582
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	US $ 0.18-1.825/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Application:	Housing
Sheath Material:	No Jacket
Brand:	OEM

Product Description

Characteristics

Rated voltage: 450/750V
Ambient Temperature: -20° C ~+70ºC
Minimum bending Radius: 8 x D (D=Overall diamter of cable) for fixed installation
low smoke, Halogen free

Electrical Date

DC conductor resistance at 20ºC: See the cable dimensions
Voltage test: AC 2500V, 5min.
Mechanical characteristics
Insulation
Tensile strength(N/mm2),min. 9.0
Elongation at break (%), min. 125
Ageing condition 121ºC*168h
Tensile strength Variation ,Max. ±20%
Elongation at break Variation, Max. ±20%

Conductor type	Code	Nominal voltage U0/U	No. of cores	Range of cross section mm2
Conductor type	Code	Nominal voltage U0/U	No. of cores	Range of cross section mm2
Cooper core PVC insulated wire	BV	450/750V	1	1.5-120
Cooper core PVC insulated flame retardant wire	ZR-BV	450/750V	1	1.5-120
Aluminum core PVC insulated wire	BLV	450/750V	1	2.5-120
Copper core PVC insulated flexible wire	BVR	450/750V	1	2.5-70
Copper core PVC insulated and sheathed round wire	BVV	300/500V	1-5	0.75-35
Aluminum core PVC insulated and sheathed round wire	BLVV	300/500V	1-5	2.5-10
Copper core PVC insulated and sheathed flat wire	BVVB	300/500V	2-3	0.75-10
Aluminum core PVC insulated and sheathed flat wire	BLVVB	300/500V	2-3	2.5-10

Nominal cross section	Conductor core	Insulation thickness	Average outer diameter		Conductor resistance at 20°C max.		Insulation resistance at 70°C max.
Nominal cross section	No. of individual wires/diameter	Insulation thickness	Min.	Max.	Cu	Al	Insulation resistance at 70°C max.
mm2	mm	mm	mm	mm	Ω/km	Ω/km	≤MΩ•km

1.5	1/1.38	0.7	2.6	3.2	12.1	/	0.011
2.5	1/1.78	0.8	3.2	3.9	7.41	11.8	0.010
4	1/2.25	0.8	3.6	4.4	4.61	7.39	0.0085
6	1/2.76	0.8	4.1	5.0	3.08	4.91	0.0070
10	7/1.35	1	5.6	6.7	1.83	3.08	0.0065
16	7/1.70	1	6.4	7.8	1.15	1.91	0.0050
25	7/2.14	1.2	8.1	9.7	0.727	1.20	0.0050
35	7/2.52	1.2	9.0	10.9	0.524	0.868	0.0043
50	19/1.78	1.4	10.6	12.8	0.387	0.641	0.0043
70	19/2.14	1.4	12.1	14.6	0.268	0.443	0.0035
95	19/2.52	1.6	14.1	17.1	0.193	0.320	0.0035
120	37/2.03	1.6	15.6	18.8	0.153	0.253	0.0032

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

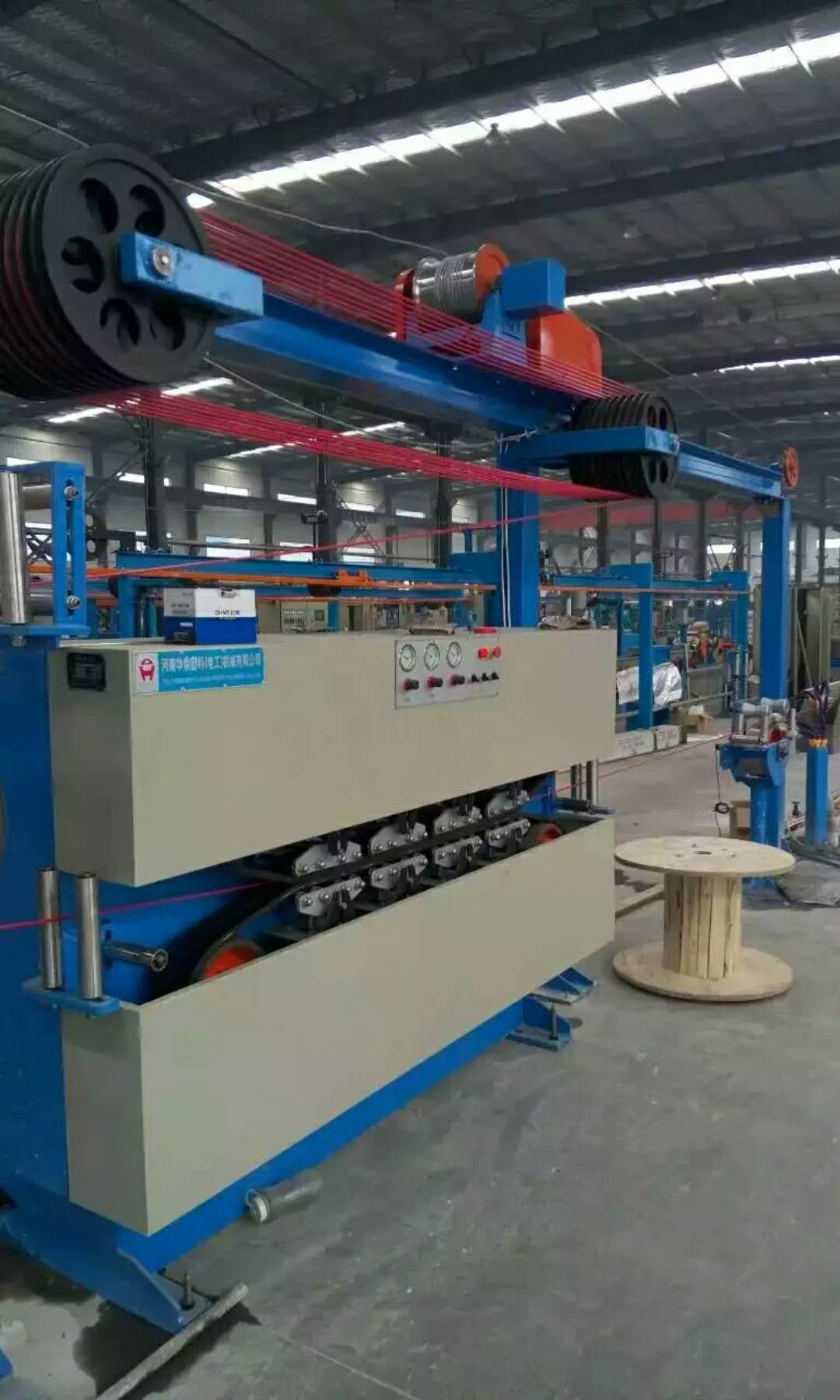

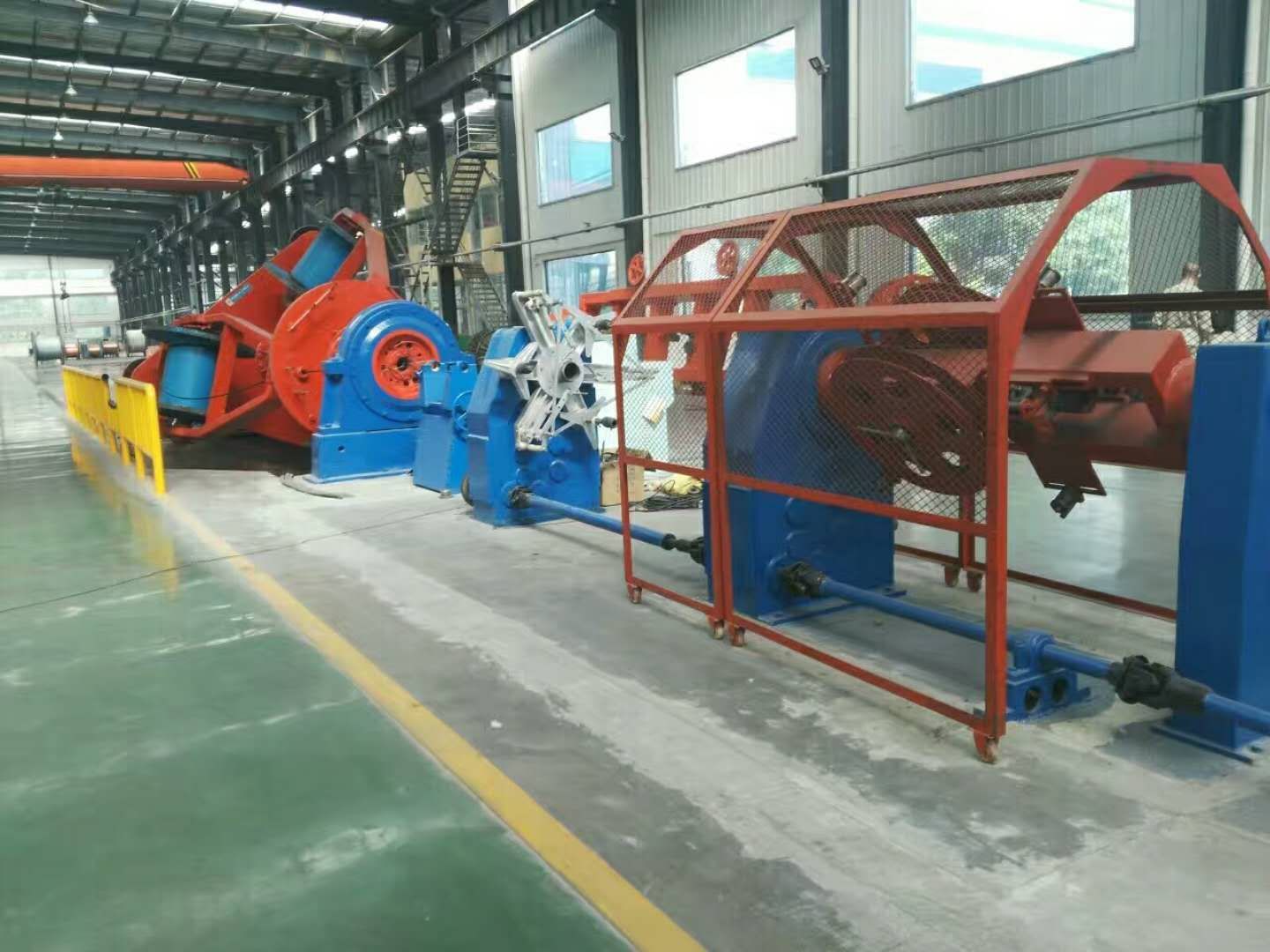

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

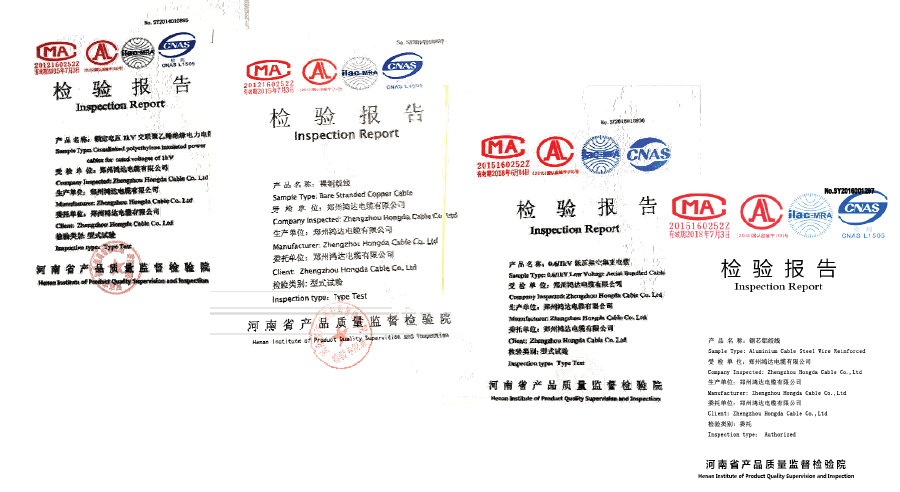

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
