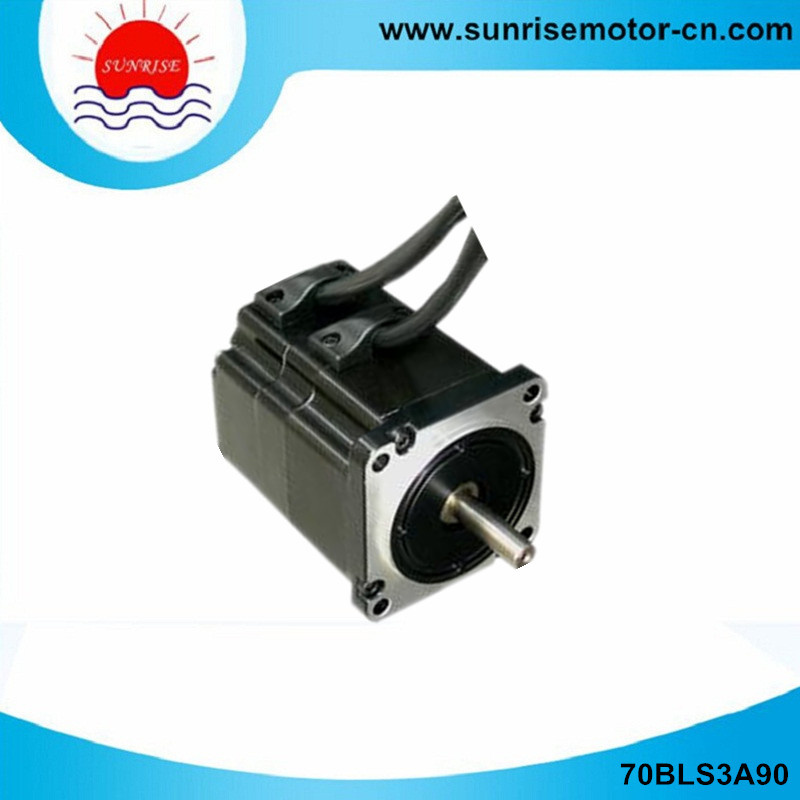

70bls3a90 310VDC 313W 3000rpm 1n. M Brushless DC Servo Motor

Name: 70bls3a90 310VDC 313W 3000rpm 1n. M Brushless DC Servo Motor
Brand: all-electronics-online.com
SKU: 726008425
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 103.55-112.18/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	70BLS3A90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	70bls3s90
Voltage:	310VDC
Power:	313W
Rated Speed:	3000rpm
Rated Torque:	1n.M
Encoder:	1000CPR
Number Of Poles:	8
Winding Class:	B
Structure And Working Principle:	Brushless
Operating Speed:	High Speed
Application:	Industrial
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	BLDC
Certification:	SGS

Product Description

BRUSHLESS DC SERVO MOTOR

MODEL: 70BLS3A90
VOLTAGE: 310V
POWER: 313W
SPEED: 3000RPM
CURRENT: 1.4A
TORQUE: 1N. M
ENCODER: 1000CPR
WINDING CLASS: B
MOTOR LENGTH: 116mm
MOTOR WEIGHT: 2.1KG

Motor are available with diffent winding and mechancial modification to meet specific applications.

			70BLS3A60	70BLS3A90	70BLS3A120
Specification		Unit
Rated voltage	U	V	+24	+310	+310
Rated out power	P out	W	157	313	470
Rated speed	n N	rpm	3000
Rated current	I N	A	8.8	1.4	2
Rated torque	T N	N. m	0.5	1.0	1.5
Peak current	I P	A	26.5	4.2	6
Peak torque	T p	N. m	1.5	3.0	4.5
Voltage constant	K E	V/ Krpm	4.1	55	55
Torque constant	K T	N. m/A	0.04	0.525	0.525
Number of poles	N P		8
Encoder		CPR	1000
Winding class			B
Motor Length	L	mm	86	116	149
Motor weight		Kg	1.3	2.1	2.8

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
