70W AC Dimmable LED Power Transformer for Downlight

Name: 70W AC Dimmable LED Power Transformer for Downlight
Brand: all-electronics-online.com
SKU: 807755865
Availability: InStock
Rating: 4.5 (72 reviews)

Price:	US $ 3.9-4.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T70
Dimension:	92 X 42 X 20cm
IP Degree:	IP67
Dimmable:	No
Protection:	Short Circuit
Workspace:	1W-70W
Output Voltage:	12V
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Triac
Power Supply Mode:	Customed
Modulation System:	Triac
Brand:	No Brand

Product Description

70W AC Dimmable LED power transformer for downlight

Features:
1.AC 12V transformer
2.Workspace: 1 watt to 70 watts
3.Dimmable
4.Only suitable for 12V AC LEDs! Not for 12V DC LEDs!
5.Dimensions: (length / width / height): 92 x 42 x 20mm

Specifications:

Brand	Yochan
Product weight	64 g
Product Dimensions	92 x 42 x 2 cm
Manufacturer Reference	T70AC
Color	white
Power	70w
Lamp diameter	92 mm
Lamp length	42 mm
Input voltage	220-240V ~ 50 / 60Hz
Output voltage ~	AC 12 V
Application	Only for use in enclosed spaces

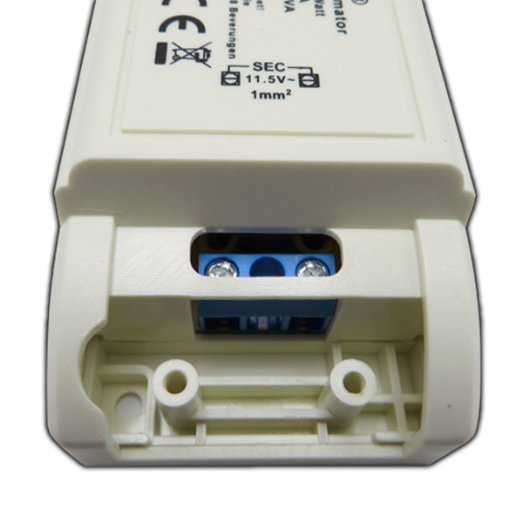

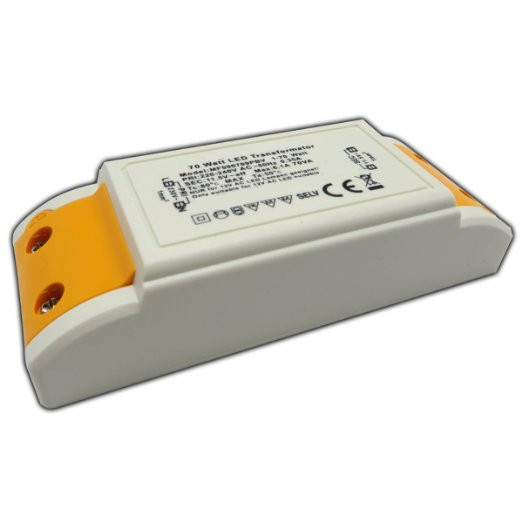

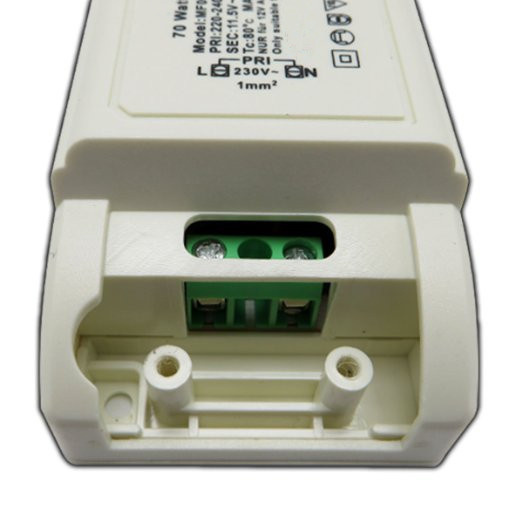

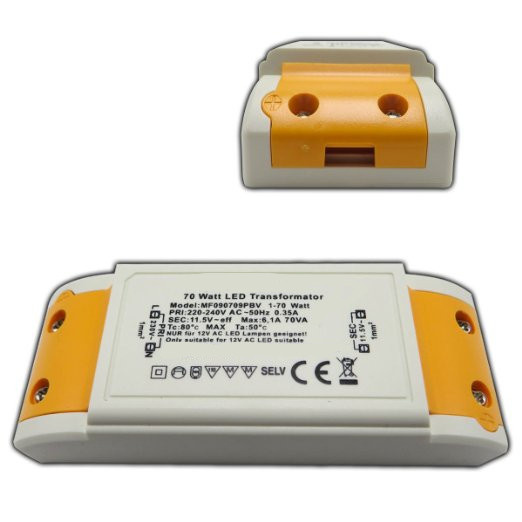

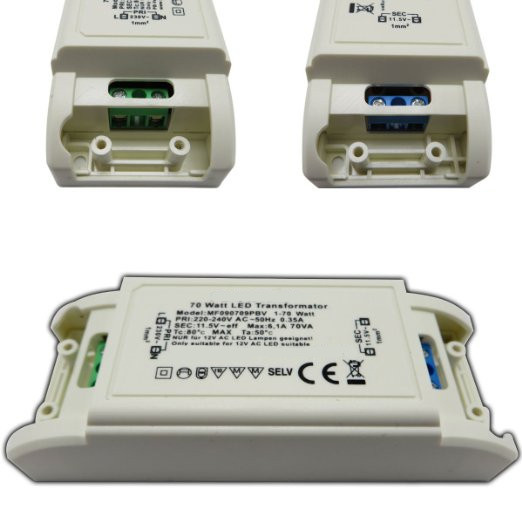

Pictures:

Conformity & Standards:
EN55022
EMI                                    EN55015 Class B
Safety                                 EN60598
Electromageric                     EN61547,ENV5024
Immunity                             EN61000-4-2/3/4/6/8/11
Harmonic                             EN61000-3-2
Current Emissons EN61000-3-3
