| Prod Model: |
DCS-15120801 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
1.02 Bc/CCS |
| Insulation: |
4.57/4.8mm Fpe |
| Braiding: |
CCA/Bc/Al-Mg Wire |
| Shield: |
Al/Cu Foil |
| Jacket: |
PVC |
| Function: |
CCTV/CATV System |
| Certificate: |
CE/RoHS/ISO9001/SGS |
| Key Words: |
Coaxial Cable RG6 |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ISO |
| Type: |
Coaxial Cable |
| Wire Core Material: |
CCS |
Product Description

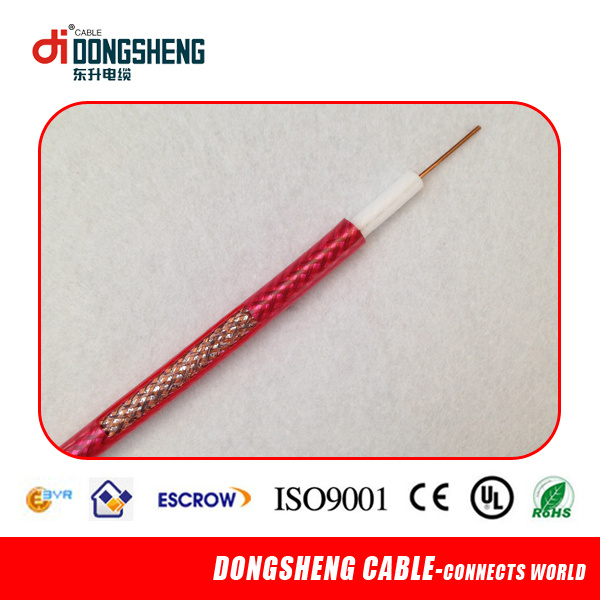

75ohm Coaxial Cable 305m/Wooden Spool for RG6 Note:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil
3) Braiding wire:Al,BC,,TC,CCA,CCS
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm
5) Braiding net:32,48,64,72,80,96,120,128,144 and more
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL
RG6 Cable Materials and other mechanical parameters-RG6
ITEM | RG6SM | RG6S | RG6T | RG6Q |
Center conductor | 1.02mm + 0.01mm | 1.02mm + 0.01mm | 1.02mm+ 0.01mm | 1.02mm+ 0.01mm |
Dielectric | 4.75+ 0.05mm Foam PE | 4.75+ 0.05mm Foam PE | 4.75+ 0.05mm Foam PE | 4.75+ 0.05mm Foam PE |
Shield | Bonded AL Foil | Bonded AL Foil | Bonded AL Foil | Bonded AL Foil |
Braid coverage | 60% | 60% | 60% | 60% |
Shield | | | Al Foil | Al Foil |
Braid coverage | | | 40% | 40% |
Jacket | 6.91+0.05mm PVC | 6.91+0.05mm PVC | 7.06+0.05mm PVC | 7.54+0.05mm PVC |
Messenger | 1.30mm | | | |
Characteristics-RG6
(MHz) | Standard Data |
Nom. Impedance. (Ohm) | SRL | Attenuation [@68o F. (20o C.)] |
Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 75±3 | 20 | 0.58 | 1.9 |
50 | 1.5 | 4.9 |
200 | 2.8 | 9.2 |
700 | 5.6 | 18.4 |
900 | 6.2 | 20.3 |
1000 | 6.5 | 21.4 |
1800 | 8.5 | 27.9 |
2250 | 10.0 | 34.0 |
Application:-RG6
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required.

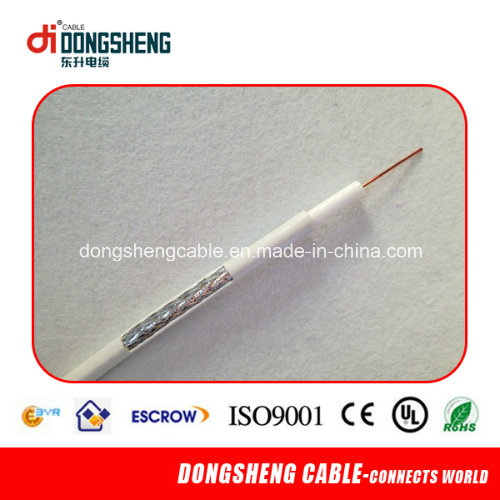

Photos of Products:-RG6
Packing:-RG6
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
Exhibition Trade Show
We attend to Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.
More Products Choose
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
1. Q: What kind of cable do you produce?
We specialize in producing lan cable,coaxial cable,alarm cable,telephone cable speaker cable etc.
2. Q: What's your MOQ?
A: Our MOQ is 30km per item. Free samples can be sent for your quality evaluation.
3. Q: What's your delivery time?
Normally, our delivery time is 20 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C, DP at sight,Other payments accept through negotiation.
5. Q: What is your manner of packing?
the color box and cartons,or wooden plates,wooden splints
It can as the customers'requests
6. Q: Can your factory customize cables based on customer's samples?
Yes, we can. OEM and ODM are both welcome.
