8 Channel Video Fiber Optic Converter with Audio and Data

Name: 8 Channel Video Fiber Optic Converter with Audio and Data
Brand: all-electronics-online.com
SKU: 819450435
Availability: InStock
Rating: 4.3 (28 reviews)

Price:	US $ 67-80/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-054
Video Bandwidth:	10MHz
Video Digital Bid Width:	10/12 bits
Differential Gain:	<1%
Differentia Phase:	<1
SNR:	>70dB
Type:	Fiber Transceiver
Wiring Devices:	Integrated Wiring
Certification:	GS
Condition:	New

Product Description

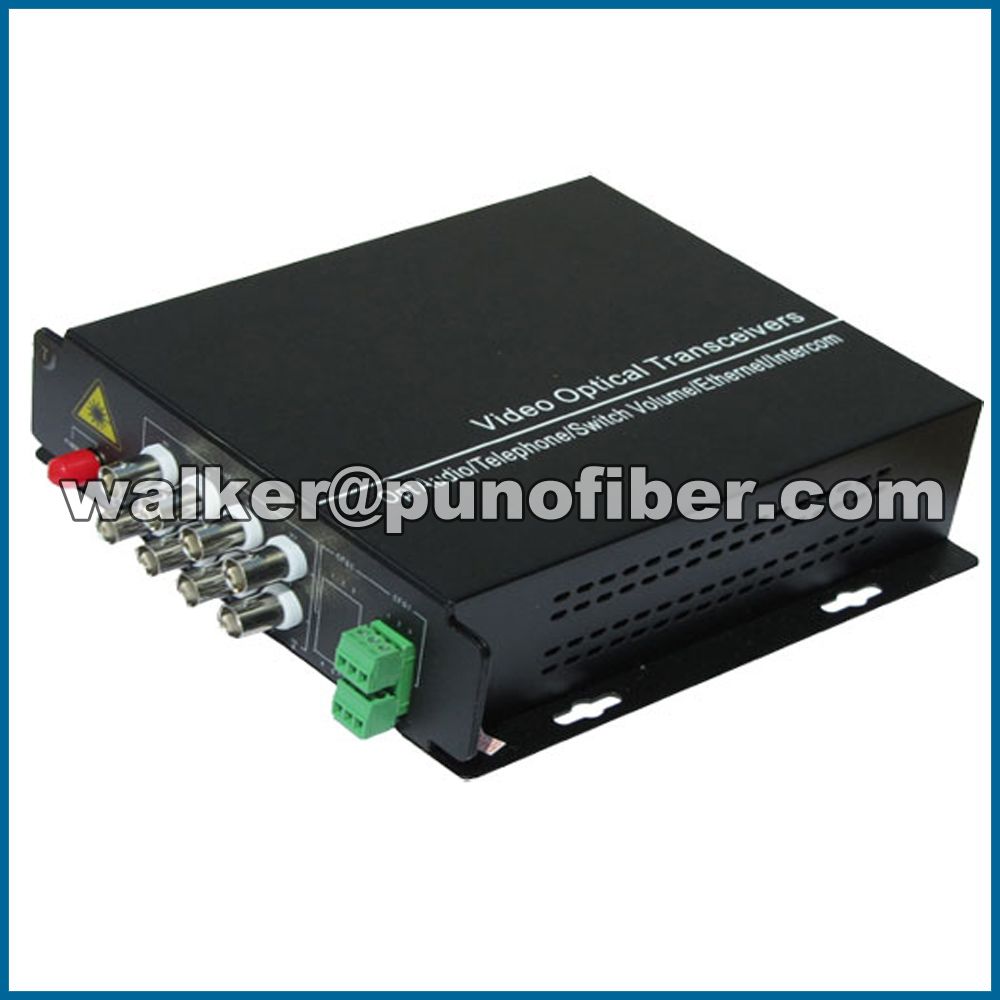

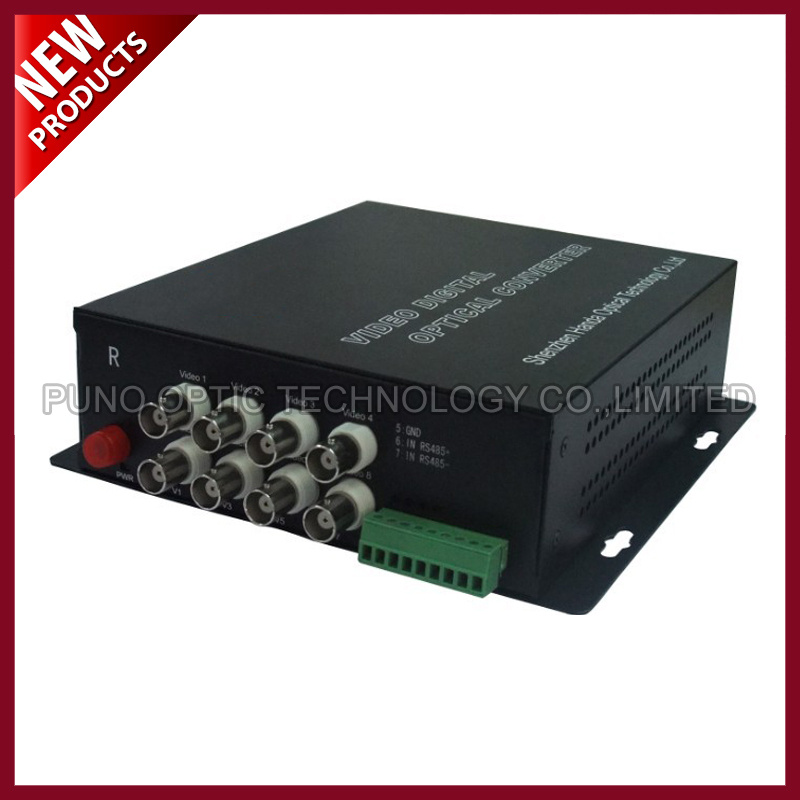

8 Channel Video Fiber Optic Converter with Audio and Data

About:

Our Standard video transmitter/Audio/data transceiver and video receiver/Audio/data
transceiver series utilizes uncompressed digital encoding and decoding for high-quality video
transmission. These environmentally hardened units provide transmission of 8 independent
video channels, 1 audio channel and 1 bi-directional data channel over one single-mode or
multimode optical fiber and are ideal for use in unconditioned roadside or out-of-plant
installations. The product is widely used in the field of CCTV, video surveillance, and national
defense.

Physical Characteristics:

√ 8 Channel Video out, 1 Data Channel in ,and 1 Audio Channel out;
√ Card type or independent structure, which is applied to centralized management 2.5U
chassis. 8/10-bit digital code and non-compression type video transmission;
√ Support any high-resolution video signal 5Hz-10MHz video channel;
√ Automatic compatible PAL, NTSC and SECAM video system;
√ With APC circuit, constant input optical power, and large dynamic range;
√ Kilomega optical fiber transmission, large capacity, and easy to upgrade;
√ Support no-damage regenerative trunk of video;
√ Advanced self-adapting technology, and it is unnecessary to implement the adjustment of
spot electrics or optics when using;
√ Industry-grade design and modularization design make the equipment reliable and flexible;
√ External dimensions (94mmX70mmX26mm) Internal power dissipation of power supply:
2.6W (Input: AC 140~260V).

Video Interface:

Video I/O Impedance	BNC 75Ω non- balanced interface	Video I/O Voltage	Typical Peak -1Vpp.
Video Bandwidth	10MHZ	Video Digital Bid Width	10/12 bits
Differential Gain	<1%	Differentia Phase	<1°
Field Tilt	<0.5%	SNR	>70dB
Connectors	BNC

Optical Interface:

Physical Interface	FC/PC; ST/PC, and SC/PC
Type of Fiber	Mono mode/Multimode Fiber; Single /Double Fiber
Transmission Distance	Multimode: 0-3km; Single mode: 0-25km, 0-60km, and 0-100km

Data Interface:

Interface	industrial connecting terminals
RS-232 Rate	DC-115.2Kbps
RS-422/485 Rate	DC-250Kbps
RS-422/485 Distance	0 - 1200M
RS-422/485 Protocol	Transparently supports random RS-485/422 protocol I/O Switching Value, Warning Data, and supports controlled relay output
