| Prod Model: |
PV8000-48 Pure Sine Wave Inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Pure Sine Wave Inverter 8000W |
| DC Voltage: |
48V Pure Sine Wave Inverter |
| Rated Power: |
8000W Solar Pure Sine Wave Inverter |
| Dimension: |
L*W*H=538*255*630mm |
| Weight: |
58kgs Solar Inverter |
| Frequency: |
50Hz/60Hz(Auto Sensing) |
| Output AC Voltage: |
110/120/130VAC 220/230/240VAC |
| Peak Power: |
3times of Rating Power |
| Short Circuit Protection: |
Yes, Shutdown After 10ms |
| Export Markets: |
Global |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
Pure Sine Wave Inverter 7000W |
| Application: |
Solar Station, Wind Turbine and Home Inverter |
| Brand: |
Powerstar/Cspower |
Product Description

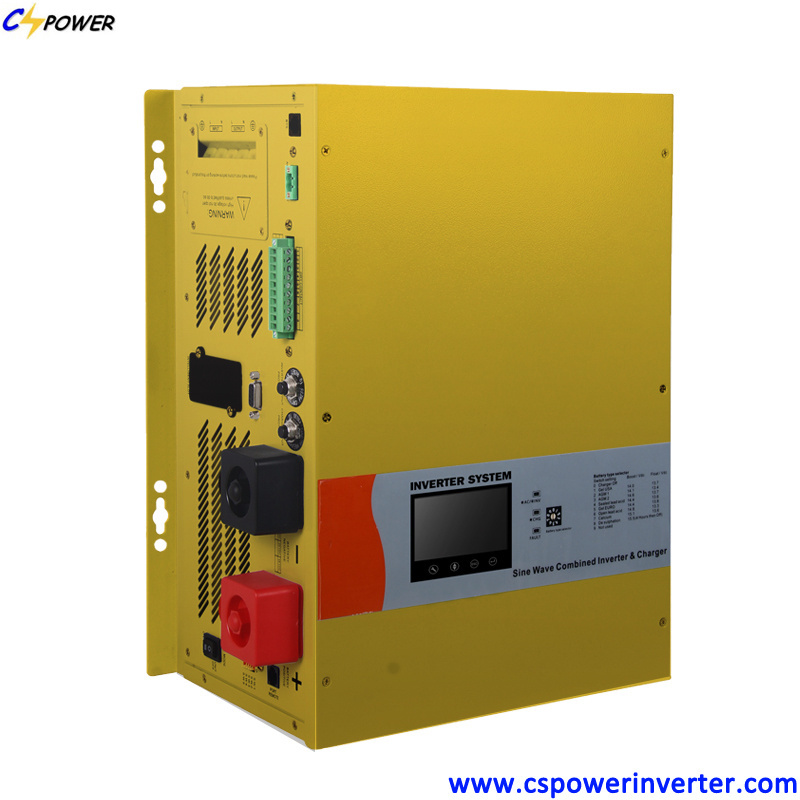

8000W Pure Sine Wave Inverter with LCD Display
Pure Sine Wave Solar Inverter 8000W Characteristics:
Peak Power: 3 times as rated Power
Optional remote control, Bypass, and Auto-reconnection.
Voltage 110/120/230 and 220/230/240VAC 50Hz or 60Hz adjustable via LCD
Capacity available from 500W, 750W, 1000W, 1500W, 2000W, 3000W, 4000W, 5000W, 6000W, 7000W and 8000W.
Pure Sine Wave Solar Inverter 500W~8000W Main Features:
1.LED/LCD digital display show voltage, load and battery info in real time.
2.Peak power is three times of rated power.
3.Can work with inductive load such as air conditioner, motor door and so on.
4.Pure sine wave output, available for sensitive load.
5.4-step progressive charging, 7 battery type selector.
6.Fast and powerful charger with 35A and 75A/90A.
7.Accept generator's energy output.
8.High power factor 0.9, low power consumption.
9.Automatically transfer between battery and line modes.
10.Microprocessor control guarantees high reliability.
11.Bypass without battery connected.
12.Remote control function.
Pure Sine Wave Inverter 8000W Applications
1. Solar electric energy generation
2. Wind power generation
3. Communication equipment
4. Industrial intellectual control system
5. Small sized emergency power supply system
6. Travel set equipment, industrial equipment, office equipment,
8000W Pure Sine Wave Inverter Protection
1. High voltage protection
2. Under-voltage protection
3. Over-temperature shutdown
4. Automatic overload protection
5. Short-circuit protection
Welcome to contact us for the battery details.
Contact CSPOWER details:
Tel: 0086-755-29123661
Web: www.cspowerinverter.com
www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Product Series | PV
1000 | PV
1500 | PV
2000 | PV
3000 | PV
4000 | PV
5000 | PV
6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | > 88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| 4000/5000/6000 Model: 598*218*179 |
| Net weight | PV1000 | PV1500 | PV2000 | PV3000 | PV4000 | PV5000 | PV6000 |
| 18kgs | 19kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
