| Prod Model: |
OD |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Input Voltage: |
220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
| Brand: |
Od |
Product Description

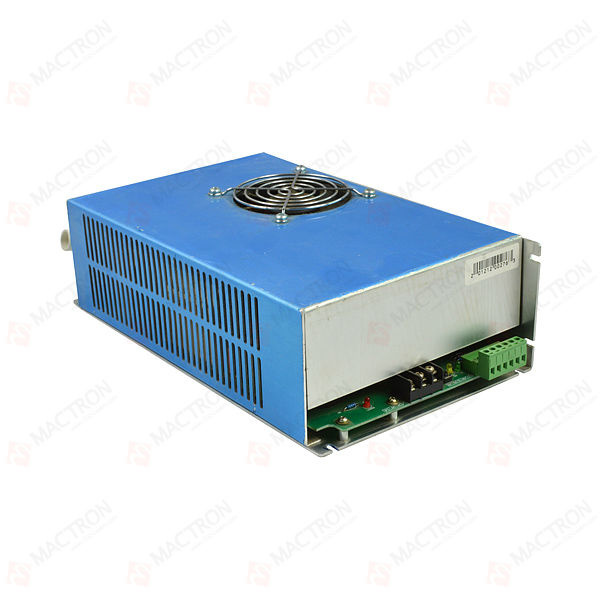

80w Co2 Laser Source
80W Co2 Laser Power Supply adopt high frequency design advantages, pay more attention to every component quality for major parts, and keep high performance and duration. 80 W laser power supplies were used to 70W - 80W CO2 laser tube for kinds of industrial laser system. Laser power supply produced by Mactron technology is well known with ultra long lifetime, stability, good compatibility, as first choice in 80W CO2 laser cutter and laser engraver.
1. The main features of the 80W co2 laser power supply:
1.Stable performance:
Each power supply have been much more rigorous testing procedures, under full load high temperature (52~55 degrees celsius) 24 hours of aging, to ensure the stability of each power supply.
2.Good compatibility :
Can adapt to a number of manufacturers 80W sealed off CO2 laser tube, but also has strong adaptability and fast response, engraving, cutting benefits good effect.
3.Control is simple:
Select high or low level control, the use of TTL-level control of the laser can start and stop. At the same time increase the protection switch, testing is through the external water and ventilation.
Laser power control is simple, you can use 0 ~ 5V analog signal control the size of the laser power, you can also use the PWM (pulse width modulation) signal to be controlled.
4.Protection function:
Power supply itself has open circuit protection, a good grounding in the case of protection, the power supply to short-term work in the open state, so to avoid the laser tube burst due to the damage caused by laser power supply, thereby enhancing the laser power supply of life.
5.Special Features: (optional addition)
Power users do not need to open the shell, you can simply determine the laser power is working to distinguish between the failure of laser tube or power supply failure.
2. Specifications:
Model Parameters | 80W Laser power supply |
Input | Input Voltage | AC220V±10% (Need AC110V products, ordering need indicate) |
AC frequency | 47 - 440HZ |
Cold-state Surge Current | ≤60A(AC220V input) ≤30A(AC110V input) |
Leakage current | ≤0.7mA(AC220V input) ≤0.4mA(AC110V input) |
Output | Maximum output voltage | DC40KV |
Maximum output current | DC31mA(depending on the laser tubes of different manufacturers) |
Efficiency | ≥90%( Full load) |
Response speed | ≤ 1ms |
Control Interface | TTL multilevel switching control, effective level can be high and low selection (see control wiring diagram) |
Insulation | Input--output | AC 1500V 1 minutes ≤10 mA |
Input--shell | AC 1500V 1 minutes ≤10 mA |
Output--shell | Connection |
Insulation Resistance | ≥50MΩ(DC500V) |
Environmental
Requested | Working temperature | -10°C - 50°C |
Storage of temperature | -20°C - 75°C |
Relative Humidity | Maximum 85% RH (non-condensing) |
Altitude | 100,000 feet of work 200,000 feet of storage, does not work |
Cooling methods | Forced air cooling (fan cooling) |
Dimensions (L*W*H) | 285mm*190mm*95mm |
