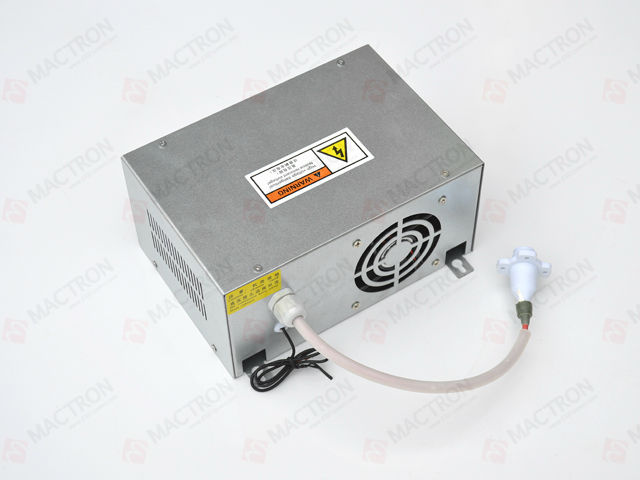

CO2 Laser Tube Power Supply 60W

Product Description

Co2 Laser Tube   Power Supply 60w

Co2 60w Laser Power Supply in laser cutting machine adopts high quality components for major parts to avoid the error in future and strengthen lifetime. 60 watts laser power source was widely used to 40W - 70W CO2 laser tube, the main advantage is high frequency, response quickly, less volume, less weight, easy operation, complete protecting function, very good compatibility and effectively protect laser tube and laser power supply lifetime.

1. The main features of  Co2 60w Laser Power Supply :

1.Stable performance:
Each power supply have been much more rigorous testing procedures, under full load high temperature (52~55 degrees celsius) 24 hours of aging, to ensure the stability of each power supply.
2.Good compatibility:

can adapt to a number of manufacturers of 60W, 50W, 40WCO2 laser tube also has a strong adaptability and fast response, engraving, cutting advantages of good effect.

3.Control is simple:
Select high or low level control, the use of TTL-level control of the laser can start and stop. At the same time increase the protection switch, testing is through the external water and ventilation.

Laser power control is simple, you can use 0 ~ 5V analog signal control the size of the laser power, you can also use the PWM (pulse width modulation) signal to be controlled.

4.Protection function:

Power supply itself has open circuit protection, a good grounding in the case of protection, the power supply to short-term work in the open state, so to avoid the laser tube burst due to the damage caused by laser power supply, thereby enhancing the laser power supply of life.

5.Special Features: (optional addition)

Power users do not need to open the shell, you can simply determine the laser power is working to distinguish between the failure of laser tube or power supply failure.
