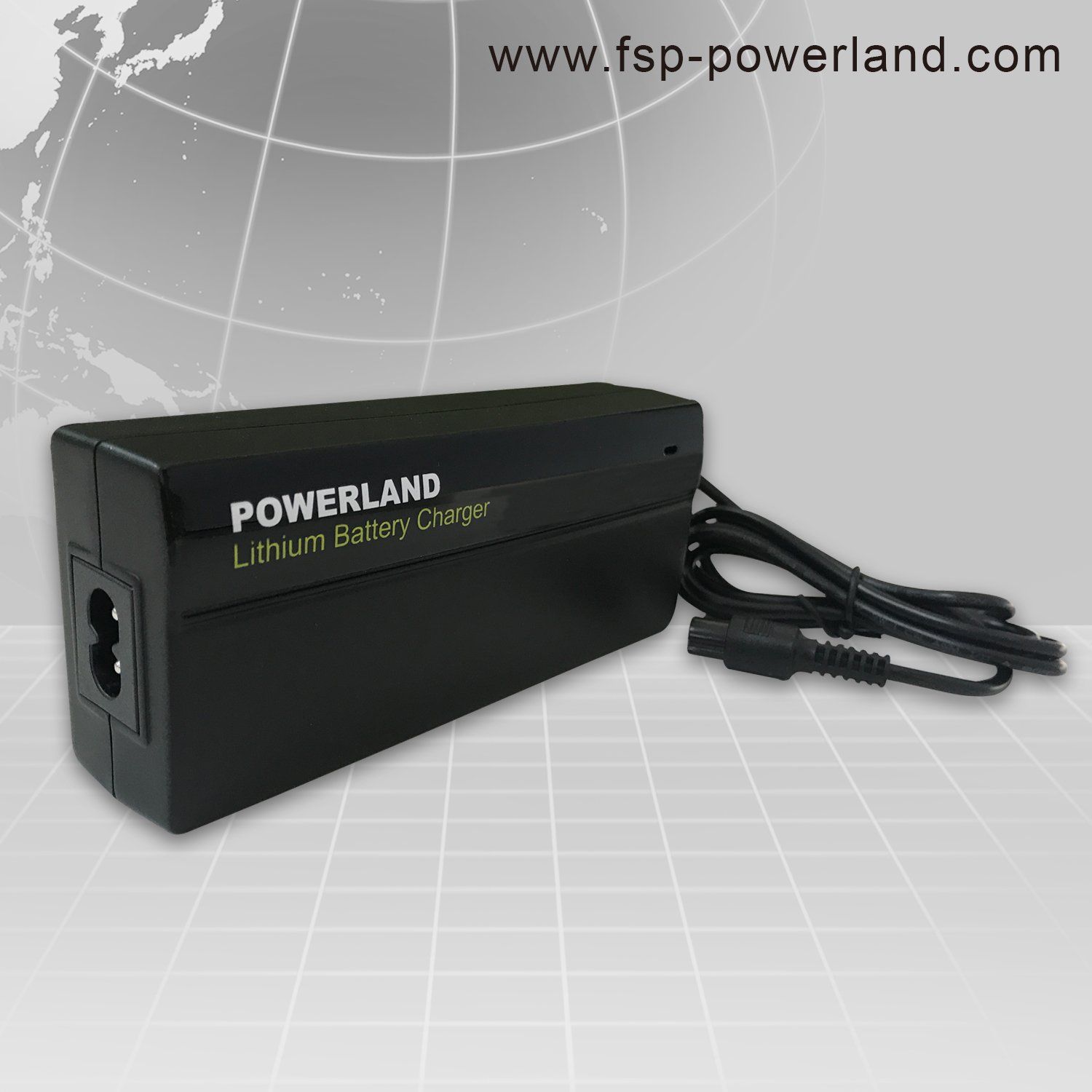

85W 21V~29.4V General Purpose Lithium Battery Charger

Name: 85W 21V~29.4V General Purpose Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 826661585
Availability: InStock
Rating: 5 (39 reviews)

Price:	Negotiable/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD085G-2940289
Output Power:	85W
Color:	Black
Warranty:	2 Year
Charging Type:	Electric Charger
Type:	Lithium Battery Charger
Principle:	PWM

Product Description

85W 21V~29.4V General Purpose Lithium Battery Charger

Powerland's 85W general purpose Lithium battery chargers are designed with CoC V5, DoE Level VI efficiency standard, high reliability and super long life time. This charger cover the output voltage of 21~29.4V, suitable for a wide application with 7 Lithium battery cells in series, such as electric tools, escooters, e-bikes, Lithium battery packs etc.

Features
• Comply with CoC V5 & DoE Level VI
• No-Load Consumption ≤0.21W
• Universal AC Input: 90~264Vac
• Output Voltage: 21~29.4V (7 Lithium Battery Cells in Series)
• 40ºC Full Load Operation without Derating
• Constant Voltage / Constant Current Charging
• All-Around Protections: OVP, OCP, SCP, OTP
• Built-In LED Charging Status Indicator
• 5000m Altitude Operation
• Global Safety Certification: UL, CE, CCC, KC, PSE, CB, GS, SAA
• RoHS Compliant
• World-Wide Input/Output Connectors Available

Model

Model Number	Output Power	Output Current	Output Voltage	Suitable for Lithium Battery Cell in Series
PLD085G-2940289	85W	2.89A	21V-29.4V	7S

Specifications

Model	PLD085G-2940289
Output Voltage	21~29.4V
Full Charging Voltage	29.4V
Constant Charging Current	2.89A
Current Accuracy	±5%
Voltage Accuracy	±1%
Output Power	85W
Input Voltage Range	90~264Vac
Max. Input Voltage	320Vac, 20 seconds
Input Frequency Range	47-63Hz
Max.Input Current	1.1A@230Vac
Max. Input Power	105W@230Vac
Efficiency Standards	DoE Level VI, CoC V5.0
Average Efficiency	88% min. @ 100~240Vac, 25oC
No-Load Consumption	≤ 0.21W @ 110Vac/220Vac
Protections	OVP, OTP , SCP, Open Circuit Protection
Storage Temperature	-40ºC~85ºC
Working Temp	-10ºC~+40ºC
Cooling	Free Air Cooling
Safety	GB4943.1/4706.1, IEC60950-1/60335(CE/CB/GS/PSE/KC), UL60950-1/1310
EMI	Comply with EN55022 Class B, EN55032 Class B
LED Indicator	Charging: Red, Battery Full: Green
Isolation Test	Primary to Secondary: 3000Vac/10mA max./60s
Dimension	137x57.5x34.5mm
Life Time	30,000 hours at 25ºC, 230Vac Input, and Continuous Full Load Output
