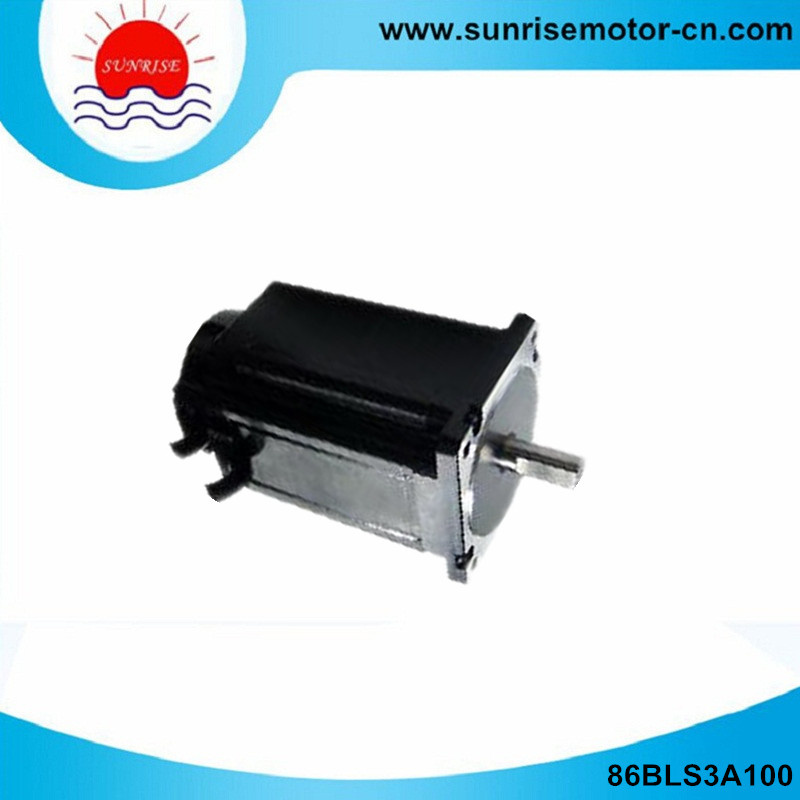

86bls3a100 310VDC 440W 1.4n. M N 3000rpm Brushless DC Servo Motor

Name: 86bls3a100 310VDC 440W 1.4n. M N 3000rpm Brushless DC Servo Motor
Brand: all-electronics-online.com
SKU: 726013785
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	US $ 97.49-101.88/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	86BLS3A100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	86bls3a100
Voltage:	310VDC
Power:	440W
Rated Speed:	3000rpm
Rated Torque:	1.4n.M
Current:	1.65A
Encoder:	1000CPR
Winding Class:	B
Weight:	2.6kg
Application:	Car
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	BLDC Servo Motor
Certification:	SGS
Brand:	Sunrise Motor

Product Description

86BLS Series Brushless DC Servo Motor

MODEL: 86BLS3A100
VOLTAGE: 310V
POWER: 440W
SPEED: 3000RPM
CURRENT: 1.65A
TORQUE: 1.4N. M
ENCODER: 1000CPR
NUMBER OF POLES: 8
WINDING CLASS: B
WEIGHT: 2.6KG

Remark:

We can produce motor according to customer's requirements.

			86BLS3A70		86BLS3A100	86BLS3A125
Specification		unit	-B	-E	-E	-C
Rated voltage	U	V	36	310	310	310
Rated out power	P out	W	220	220	440	660
Rated speed	n N	rpm	3000
Rated current	I N	A	7.6	0.82	1.65	2.5
Rated torque	T N	N.m	0.7	0.7	1.4	2.1
Peak current	I P	A	21	2	5	7.6
Peak torque	T p	N.m	2	2.2	4.5	5.1
Voltage constant	K E	V/ Krpm	9.1	84	85	85
Torque constant	K T	N.m/A	0.093	0.85	0.9	0.92
Rotor inertia	J	Kg.cm 2	0.8	0.8	1.6	2.4
Number of poles	N P		8	8	8	8
Winding class			B	B	B	B
Motor weight		Kg	1.85	1.85	2.6	3.95

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
