99.99% Alumina Ceramic Stamp Substrate/Ceramic Plate

Name: 99.99% Alumina Ceramic Stamp Substrate/Ceramic Plate
Brand: all-electronics-online.com
SKU: 804464065
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 0.5-10/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RY-CS-0007
Max Working Temperature:	1600c
Rycolor:	White, Ivory, Pink
Special:	Thin Film Alumina Ceramic
Product:	Alumina Parts
Name:	Machine Alumina Ceramic Substrate
Raw Material:	60-99.7% Alumina Ceramic
Item:	Alumina Ceramics Dbc Substrate
Type:	Combining Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	Ceramic
Material:	Alumina Ceramic
Base Material:	Alumina Ceramic
Brand:	Ry

Product Description

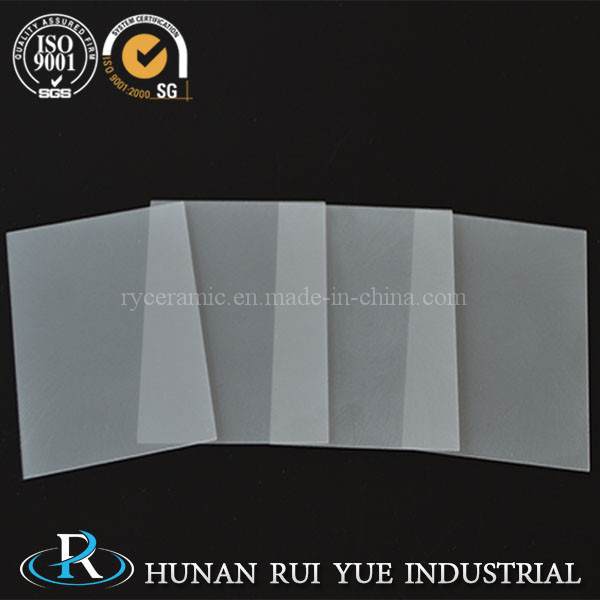

99.99% alumina ceramic stamp substrate/ceramic plate

Laser Cutting ceramic substrate:
Cutting the highest accuracy: +/- 0.02mm
Cutting Maximum size: 152.4 x 152.4 mm
Cutting Minimum aperture diameter: 0.1mm
Cutting Maximum thickness: 1.5mm

Data Sheet :

Material	85 Al2o3	90 Al2o3	95 Al2o3	99 Al2o3
Al2o3	85%	90%	93%	99.30%
Fe2o3	≤ 1.0	≤ 0.5	≤ 0.5	≤ 0.3
Desnsity: g / cm3	3.4	3.5	3.6	3.85
Vickers Hardness	≥ 8.6	≥ 8.8	9	9
Water Absorption:%	≤ 0.2	≤ 0.1	≤ 0.085	≤ 0.01
Refractoriness:°C	1580 °C	1600 °C	1650 °C	1800°C
Flexural Strength:Mpa	180	200	240	280
Wear Rate( at room temperature, erosion, 100 grinding)%	≤ 3	≤ 2.5	≤ 1	≤ 0.5

Hunan Rui Yue industrial and trade Co., Ltd was established in 1997, specializing in

Research and development. Main as: Alumina/Zirconia/Aluminium nitride/Pyrolytic boron nitride and series products, Also accept OEM and ODM.

The products are widely used in lamps and lanterns, electric appliances, electric

Heating products, nozzle, auto parts, wear-resistant parts of insulation material, etc.

The company always adhere to quality survival, innovation and development, the integrity

Of the brand, to protect and thoughtful after-sales service enterprises as the goal,

Over the years, Our products are sold well all over the country, and exported to Germany,

United States, Finland, Brazil, Russia, Mexico...More than 20 countries, product quality

And service are highly praised by customers.

"Superior quality, preferential price"is our management tenet, we sincerely expect to

Cooperate with the masses of domestic and foreign customers, common development!

Welcome to visit and investigate of our company.
