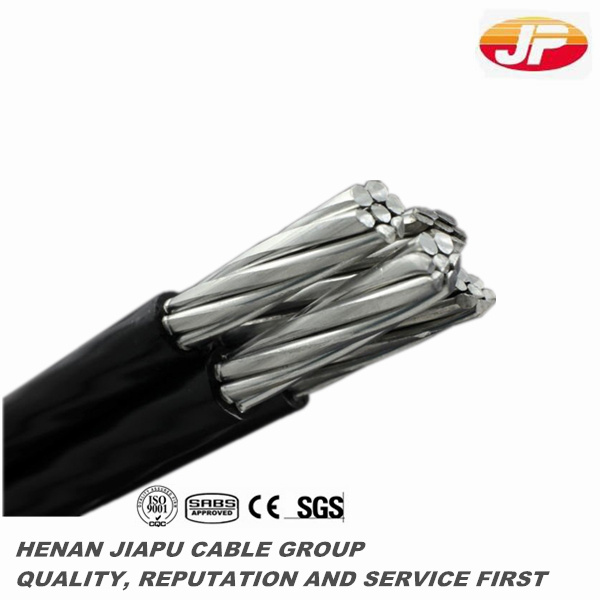

ABC Aerial Bundle Cable/Aluminum Conductor/ Service Drop Wire
| Price: |
US $ 1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ABC |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Brand: |
Jiapu |
Product Description
Application
The triplex cables are suitable for use as drop cable from a pole-mounted transformer,to the service entrance of a structure,or as secondary distribution between poles. The cables should be limited to the voltage of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.
Specification
Standard:ASTM B230, B231, B232,B399,B498, ICEA S-76-474 Standard
| Code Name | Phase Conductor | Bare Neutral | Approx.Weight | Code Name | Phase Conductor | Bare Neutral | Approx.Weight |
| Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE | Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE |
| AWG | - | mil | AWG | - | lbs/1000ft | AWG | - | mil | AWG | - | lbs/1000ft |
| 6201 Alloy Neutral Messenger | 6201 Alloy Reduced Neutral Messenger |
| Minex | 6 | Solid | 45 | 6 | 7 | 106.6 | 102.9 | Artemia | 4 | Solid | 45 | 6 | 7 | 141.4 | 137.1 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 113.2 | 105.7 | Crab | 4 | 7 | 45 | 6 | 7 | 151.3 | 141.2 |
| Prawn | 4 | Solid | 45 | 4 | 7 | 158.4 | 154.1 | Solaster | 2 | 7 | 45 | 4 | 7 | 226.6 | 212.6 |
| Barnacles | 4 | 7 | 45 | 4 | 7 | 168.3 | 158.2 | Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 368.8 | 343.1 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 253.7 | 239.7 | Echinus | 1/0 | 19 | 60 | 2 | 7 | 358.8 | 343.1 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 411.7 | 386.0 | Crayfish | 2/0 | 7 | 60 | 1 | 7 | 452.6 | 422.5 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 402.7 | 386.0 | Sipho | 2/0 | 19 | 60 | 1 | 7 | 441.0 | 422.5 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 506.8 | 476.3 | Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 543.4 | 521.1 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 495.3 | 476.3 | Arca | 4/0 | 19 | 60 | 2/0 | 7 | 671.2 | 644.6 |
| Flustra | 3/0 | 19 | 60 | 3/0 | 7 | 611.4 | 589.1 | | | | | | | | |
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 757.1 | 730.5 | | | | | | | | |
| ACSR Neutral Messenger | ACSR Reduced Neutral Messenger |
| Paludina | 6 | Solid | 45 | 6 | 6/1 | 114 | 113 | Scallop | 4 | Solid | 45 | 6 | 6/1 | 148 | 144 |
| Voluta | 6 | 7/w | 45 | 6 | 6/1 | 120 | 113 | Strombus | 4 | 7/w | 45 | 6 | 6/1 | 158 | 148 |
| Whelk | 4 | Solid | 45 | 4 | 6/1 | 169 | 165 | Cockle | 2 | 7/w | 45 | 4 | 6/1 | 233 | 227 |
| Periwinkle | 4 | 7/w | 45 | 4 | 6/1 | 176 | 172 | Janthina | 1/0 | 7/w | 60 | 2 | 6/1 | 376 | 365 |
| Conch | 2 | 7/w | 45 | 2 | 6/1 | 267 | 261 | Ranella | 1/0 | 19/w | 60 | 2 | 6/1 | 372 | 362 |
| Neritina | 1/0 | 7/w | 60 | 1/0 | 6/1 | 530 | 419 | Cavolinia | 2/0 | 7/w | 60 | 1 | 6/1 | 462 | 451 |
| Cenia | 1/0 | 19/w | 60 | 1/0 | 6/1 | 426 | 416 | Clio | 2/0 | 19/w | 60 | 1 | 6/1 | 458 | 446 |
| Runcina | 2/0 | 7/w | 60 | 2/0 | 6/1 | 530 | 519 | Sanddollar | 3/0 | 7/w | 60 | 1/0 | 6/1 | 570 | 557 |
| Triton | 2/0 | 19/w | 60 | 2/0 | 6/1 | 526 | 514 | Aega | 3/0 | 19/w | 60 | 1/0 | 6/1 | 565 | 552 |
| Cherrystone | 3/0 | 7/w | 60 | 3/0 | 6/1 | 656 | 643 | Cuttlefish | 4/0 | 7/w | 60 | 2/0 | 6/1 | 706 | 691 |
| Mursia | 3/0 | 19/w | 60 | 3/0 | 6/1 | 650 | 638 | Cerapus | 4/0 | 19/w | 60 | 2/0 | 6/1 | 699 | 684 |
| Razor | 4/0 | 7/w | 60 | 4/0 | 6/1 | 814 | 799 | Cowry | 336.4 | 19/w | 80 | 4/0 | 6/1 | 1135 | 1093 |
| Zuzara | 4/0 | 19/w | 60 | 4/0 | 6/1 | 805 | 792 | | | | | | | | |
| Limpet | 336.4 | 19/w | 80 | 336.4 | 18/1 | 1209 | 1167 | | | | | | | | |
| AAC Neutral Messenger |
| Haiotis | 6 | Solid | 45 | 6 | 7 | 102.5 | 98.8 | Purpura | 1/0 | 19/w | 60 | 1/0 | 7 | 386.1 | 369.4 |
| Patella | 6 | 7/w | 45 | 6 | 7 | 109.1 | 101.6 | Nassa | 2/0 | 7/w | 60 | 2/0 | 7 | 485.8 | 455.3 |
| Fusus | 4 | Solid | 45 | 4 | 7 | 151.9 | 147.6 | Melita | 3/0 | 19/w | 60 | 3/0 | 19 | 585.2 | 562.9 |
| Oyster | 4 | 7/w | 45 | 4 | 7 | 161.8 | 151.7 | Portunus | 4/0 | 19/w | 60 | 4/0 | 19 | 723.9 | 697.3 |
| Clam | 2 | 7/w | 45 | 2 | 7 | 243.2 | 229.2 | Nannynose | 336.4 | 19/w | 80 | 336.4 | 19 | 1160.4 | 1118.0 |
| Murex | 1/0 | 7/w | 60 | 1/0 | 7 | 395.1 | 369.4 | | | | | | | | |
What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
