Abe Perimeter Infrared Beam Sensor

Name: Abe Perimeter Infrared Beam Sensor
Brand: all-electronics-online.com
SKU: 740630745
Availability: InStock
Rating: 4.4 (71 reviews)

Price:	US $ 16-18/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABE-100/150/200/250
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Appearance:	Black Case
Response Time:	50-700ms
Case Material:	PC
Type:	Industry Alarm
Application:	Outdoor
Signal Transmission:	Wired Alarm
Working Mode:	Active
Sensor Type:	Infrared Alarm
Working Principle:	Electro-Optical Type
Detection Type:	Infrared
Output Signal Type:	Wire/Wireless
Certification:	Ce & RoHS

Product Description

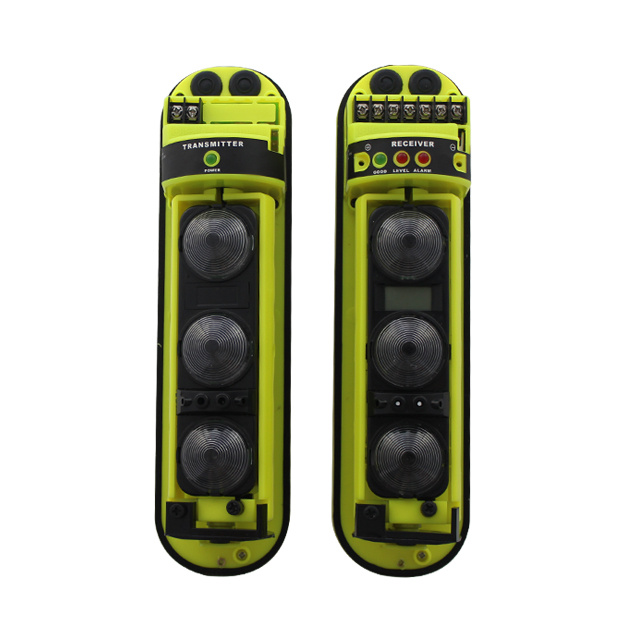

ABE Perimeter Infrared Beam Sensor
Function:
1. Wired and BUS system compatible, holographic spot real-time report
2. Using the solid power charger of no longevity ending, low voltage and mini power consumption.
3. Adopts DSP chip, patented multi-dimensional mistake-corrective code, true detection alarm technology
4. The digital ambiguous artificial intelligent recognition: Four band frequency and use the artificial intelligent ambiguous judgment reduce the false alarm rate to zero.
5. Intelligent power emission. Adjustment the emission power of the beams automatically, it prolong the tube's longevity and reduce the power consumption.
6. Green environment protection: With the controllable function display, after test, closes the display; It can save power a lot.
7. Two sets of independence precession mini adjustment inner build optical aiming lens.
8 Full function of self diagnose, environment self adjustment, troubles locked.
9 Patent equivalent checking, special digital filter wave, its anti-interference of light arrive at IP85.
10. The upper and nether optical lens adjust at the same time, enable the adjustment quicker and more exact.

Model	ABE-100	ABE-150	ABE-200	ABE-250
Outdoor alert distance	100m	150m	200m	250m
Indoor alert distance	300m	450m	600m	750m
Number of beams	3
Response time	35_700ms
Alarm output	NC&NO contact rating AV/DC 30V/0.5A
Alarm output-BUS	MA BUS constact rating AV/DC 30V/0.5A
Working current	65mA	65mA	65mA	70mA
Working voltage	DC 13.8_24V;AC 11_18V
Long life mode	32mA	32mA	32mA	40mA
Temperature	-25 centigrade to 55 centigrade
Humidity	5%_95% (RH)
BUS output	RS-485
Tamper output	NC contact rating AV/DC 24V/0.5mA
Horizontal adust	180°(±90°)
Vertical adjust	±10°
Case material	PC

Established in Shenzhen on July 25, 2006, Shenzhen Wale Group Co., Ltd is a national high-tech enterprise mainly on researching, developing and manufacturing high-tech products for security GSM home alarm, terrorism and violence, quantum detection, and energy environment, as well as a solution provider about industry data analyzing

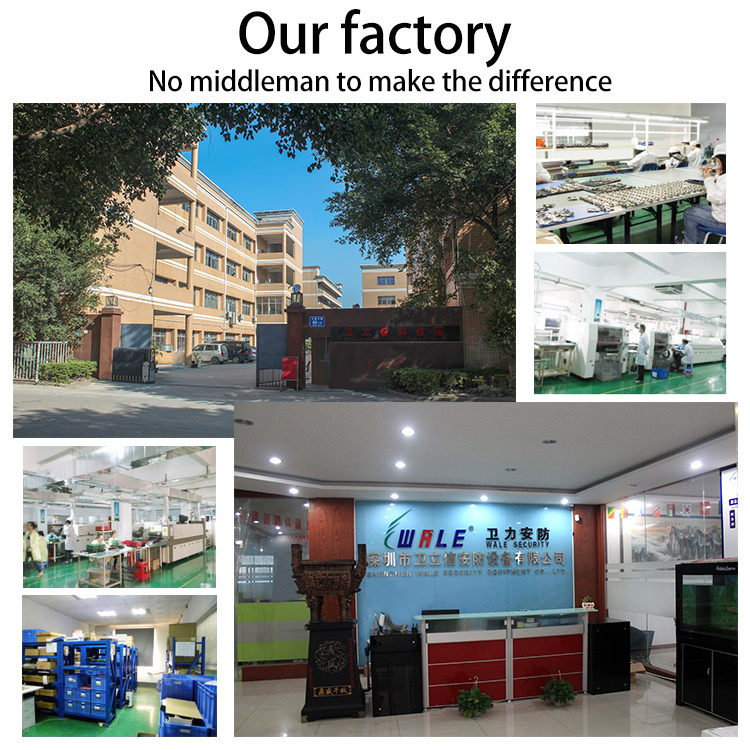

The factory and office are located in Shenzhen, which is near to ports for sea delliver. The factory can support OEM/ODM service for long term cooperation. Our products are welcomed by our forg

Every year, we will going to attend Security Exhibition all over the world, such as USA, Russia, Essen, India, Dubai, etc.

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
