ABS Material Portable Power Surface Electrical Type Iron Distribution Box

Name: ABS Material Portable Power Surface Electrical Type Iron Distribution Box
Brand: all-electronics-online.com
SKU: 795127295
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	US $ 0.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TXM
Type:	Distribution Metering Box
Structure:	Protection
Brand:	Chana

Product Description

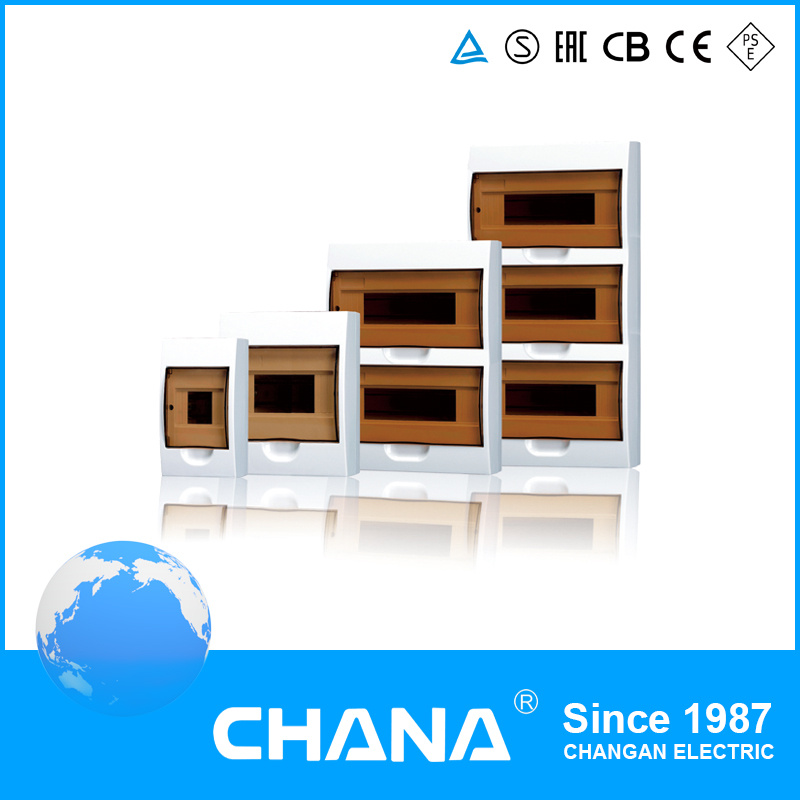

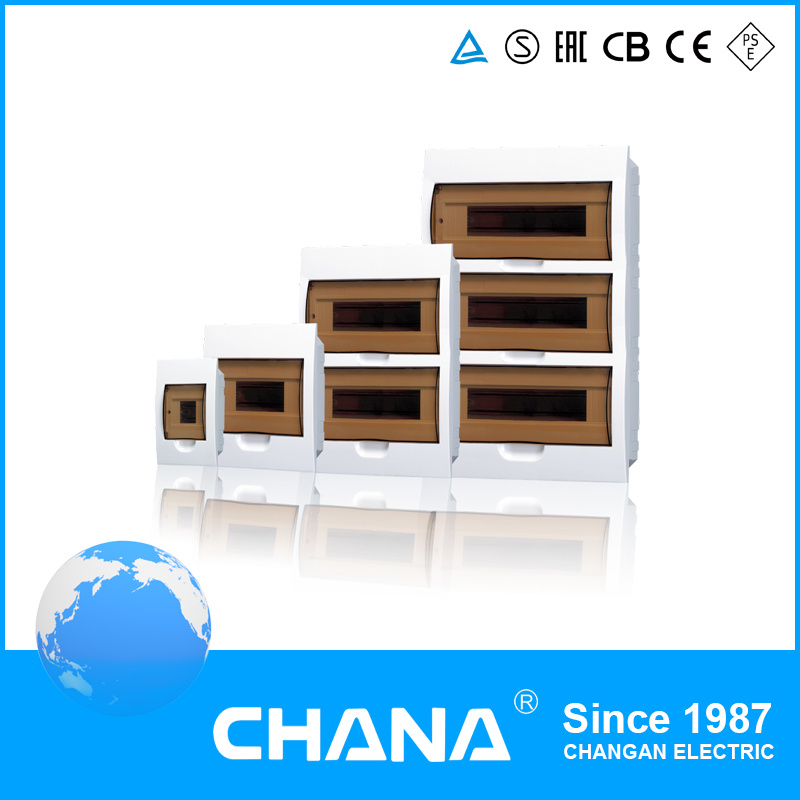

TXM Series Distribution Box

General
Overall panel design is luxury and attractive, the face covering colors are dark green and brown (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling. Pure ivory, high strength, never change color, transparent material is PC. Fixed frame, simple structure, and easy installation.

Description
Standard: IEC60439-3
Electric value: up to 100A, 240/415V, AC 50/60Hz
Way No.: 4, 6, 8, 10, 12, 18, 24, 36
Load current (A): 100/1-phase, 63/3-phase
Protection degree: IP40
Shell material: PS, ABS, ABS-UV Fire Resistant
Material of transparent door: ABS, UV Resistant PC
Approval: CE, RoHS

Specification Surface-Mounted

Model	Way No.	Dimension (mm)			PCS/CTN
Model	Way No.	L	W	H	PCS/CTN
TXM-4SP	4	112	200	100	20
TXM-6SP	6	148	200	100	20
TXM-8SP	8	184	200	100	20
TXM-10SP	10	220	200	100	10
TXM-12SP	12	156	200	100	10
TXM-18SP	18	364	222	100	10
TXM-24SP	24	270	325	100	10
TXM-36SP	36	305	473	100	5

Specification Flush-Mounted

Model	Way No.	Dimension (mm)				PCS/CTN
Model	Way No.	L	W	H	B	PCS/CTN
TXM-4FP	4	136	222	93	86	20
TXM-6FP	6	172	222	93	122	20
TXM-8FP	8	208	222	93	158	20
TXM-12FP	12	280	222	93	230	10
TXM-15FP	15	334	222	93	283	10
TXM-18FP	18	398	252	103	338	10
TXM-24FP	24	300	345	103	232	10
TXM-36FP	36	341	503	103	265	5

Australia Model

Model	Way No.	Dimension (mm)				PCS/CTN
Model	Way No.	L	W	H	B	PCS/CTN
TXM-D6FP	6	192	247	93	122	20
TXM-D8FP	8	228	247	93	158	20
TXM-D12FP	12	305	247	93	230	20
TXM-D15FP	15	354	247	93	283	10
TXM-D18FP	18	415	270	103	238	10
TXM-D24FP	24	305	355	103	232	10

Overall and Installation Dimension

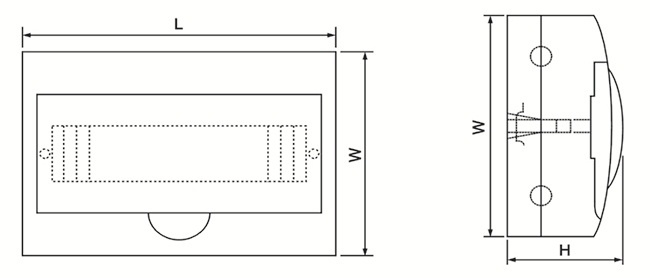

surface-mounted

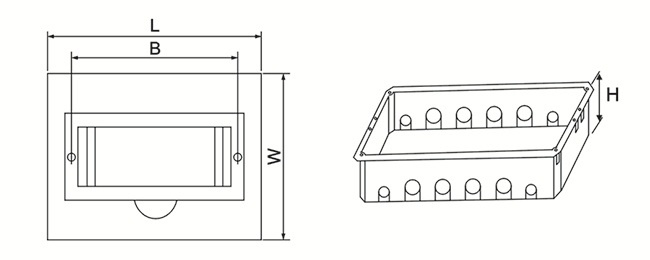

flush-mounted

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
