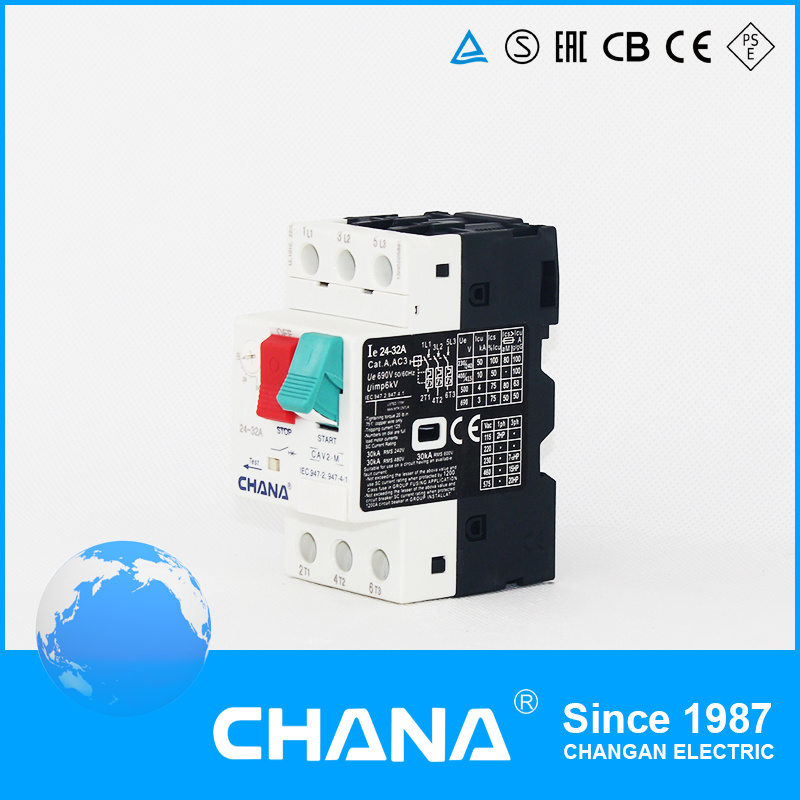

AC 690V 32A Motor Protection Circuit Breaker (CS2) MPCB

Name: AC 690V 32A Motor Protection Circuit Breaker (CS2) MPCB
Brand: all-electronics-online.com
SKU: 743166815
Availability: InStock
Rating: 4.6 (79 reviews)

Price:	US $ 8-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	60/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CS2 (GV2)-3204
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard:	IEC60947-2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CE
Structure:	MPCB

Product Description

1.General

1) Electric ratings: AC690V, 32A, 80A;
2) Standard: IEC/EN 60947-2, IEC60947-4-1

2.Operating Conditions

1) Temperature: -5ºC~+40ºC average temperature in 24 hours not exceed +35ºC.
2) Altitude: not exceed 2000m
3) Air conditions:
    At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature,for example, RH could be 90% at +20ºC
4) Pollution grade: Grade III
5) Release grade: 10A(CS2-32)   10A(CS2-80)
6) Rated operational system: Continuous operational system
7) Mounting conditions:
   The inclination between the mounting plane and the vertical plane shall not exceed 5°
   The product shall be installed and operated at a place without obvious shake, Impact and vibration. .

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
