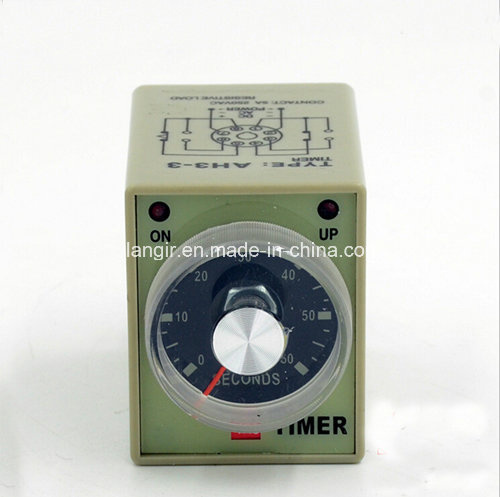

Ah3-1, Ah3-2, Ah3-3 Electric Time Relay

Name: Ah3-1, Ah3-2, Ah3-3 Electric Time Relay
Brand: all-electronics-online.com
SKU: 781941205
Availability: InStock
Rating: 4.5 (106 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AH3-1, AH3-2, AH3-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions:	50h×40W×57.5D
Rated Voltage:	DC(V): 12, 24 AC(V): 12, 24, 110, 220, 240, 380 50
Life:	5×106times
Consumed Power:	2va
Ambient Temperature:	-10oc~+55oc
Ambent Huminity:	45~85%Rh

Product Description

Technical Data

Classification		Timer
Model		AH3-
Dimensions		50H×40W×57.5D
Mounting & Socker	Surface(-N)	PF083A(E)
	Flush(-Y)	US-08, P3G-08
Full Timing Range		Sec.: 1, 3, 6, 10, 12, 30, 60 Min.: 3, 6, 10, 12, 30, 60 Hr.: 3, 6, 10, 12, 30
Rated Voltage		DC(V): 12, 24 AC(V): 12, 24, 110, 220, 240, 380 50/60Hz
Indicator Operating		ON, UP Operating
O/P Contact	Model	AH3-1	AH3-2	AH3-3
	Time Limit 1C	5A		5A
	Time Limit 2C		5A
	Instantenous 1C			5A
Life	Mechanical	5×106times
	Electrical	105times
Accuracy	Repea Error	±1% Max.
	Setting Error	±10% Max.
	Voltage Error	±1% Max.
	Temp. Error	±2% Max.
Reset Time		0.1 Sec. Max.
Consumed Power		2VA
Ambient Temperature		-10ºC~+55ºC
Ambent Huminity		45~85%RH
Weight		160g

Power on delay, plus timing. With large transparent time setting knob for setting time easily, 8 pin solder terminal for installation. Time Delay Relay used in industrial automation system and mechanical equipment to delay component. Relay is a kind of automatil electric switch, when supply with an input value, like electric, magnetic, light or thermal signal, it wall transfer the controlled circuit automatically and make an abrupt change, when the input value decreased to certain degtee, it will resume to former state and make the controlled circuit back to the former stare. Features LED indicator show power and output status.
Product Name : Time Relay w Base;Type : AH3-3;Rated Voltage : 110VAC
Contact : 5A 250VAC Resistive Load;Time Range : 0-60 Minutes;Number of Terminals : 8
