Aluminum Case 240W LED Transformer CV Waterproof Dali LED Driver

Name: Aluminum Case 240W LED Transformer CV Waterproof Dali LED Driver
Brand: all-electronics-online.com
SKU: 828896035
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 36-38/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-240DACV
Product Name:	240W Dali Dimming LED Driver
Output:	Constant Voltage
Cover Material:	Plastic
Color:	Black
Power Factor:	0.98
Dimming Manner:	Dali Digital Dimming
Dimming Range:	5%-100%
IP Degree:	IP67
Suit For:	LED Strip , LED Rope Light
Protection:	Short Circuit
Application:	Lighting
Winding Type:	Multi-winding Transformer
Certification:	ETL SAA TUV Ce
Brand:	Sunred

Product Description

aluminum case 240W Led transformer CV waterproof Dali led driver
Max output 240Watt, ac to dc Constant voltage output
Compatible with IEC62386
Drivers are with EMC LVD ROHS SAA ETL UL certificate
Suit for led rope light, led strip light, MR16 bulbs which need CV input.

Input voltage	110VAC/240VAC
Ac frequency	48-62HZ
Output voltage	36V/24VDC Constant voltage
Output current	6.6A/10A MAX
Power factor	>0.98
Size	2609038mm

Introduction of dali digital control:

Digital Addressable Lighting Interface (DALI) is a communication protocol for lighting control in buildings.
The interface was first described in the IEC60929 standard for fluorescent lamp ballast, Annex E. The stand- ard was subsequently updated to include other lighting devices, such as LED, HID, etc., to become IEC-62386. The complete standard for control interface of electronic control gears was published in June 2009, while the standard for lighting control devices is scheduled to be published in 2012.

Only a pair of wires are required to form the bus for communication to all devices on a single DALI network. Each piece of operating equiment with a DALI interface can be communicated with individually. Using a bidir- ectional data exchange, a DALI controller can query and set the status of each connected lighting device. As a standalone system, DALI can be operated with a maximum of 64 devices.

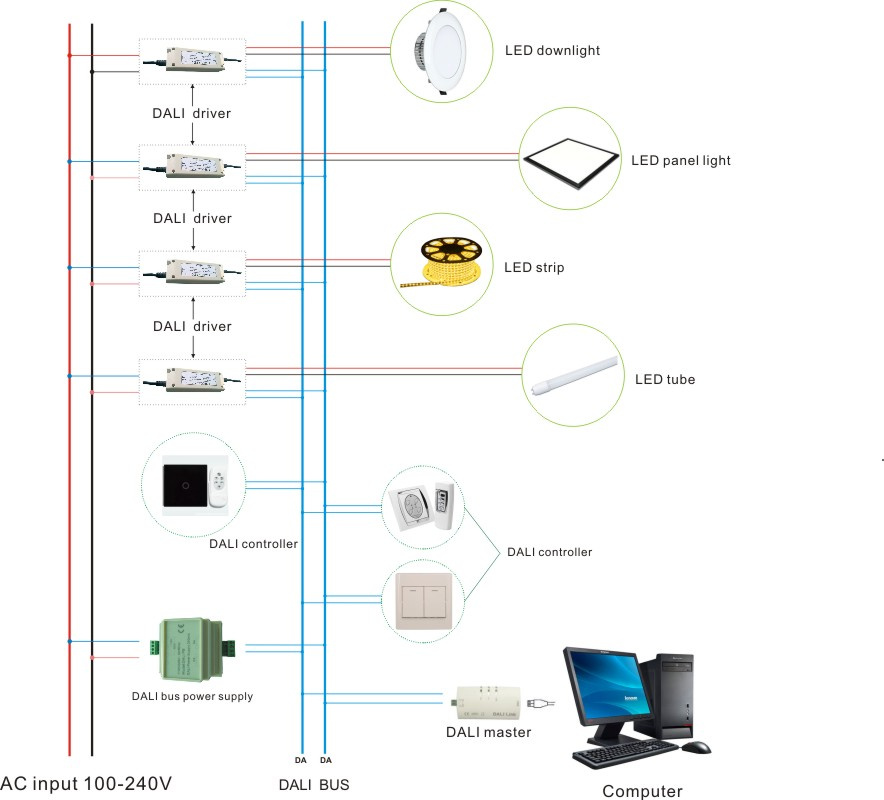

Connection diagram of the dali dimming led driver

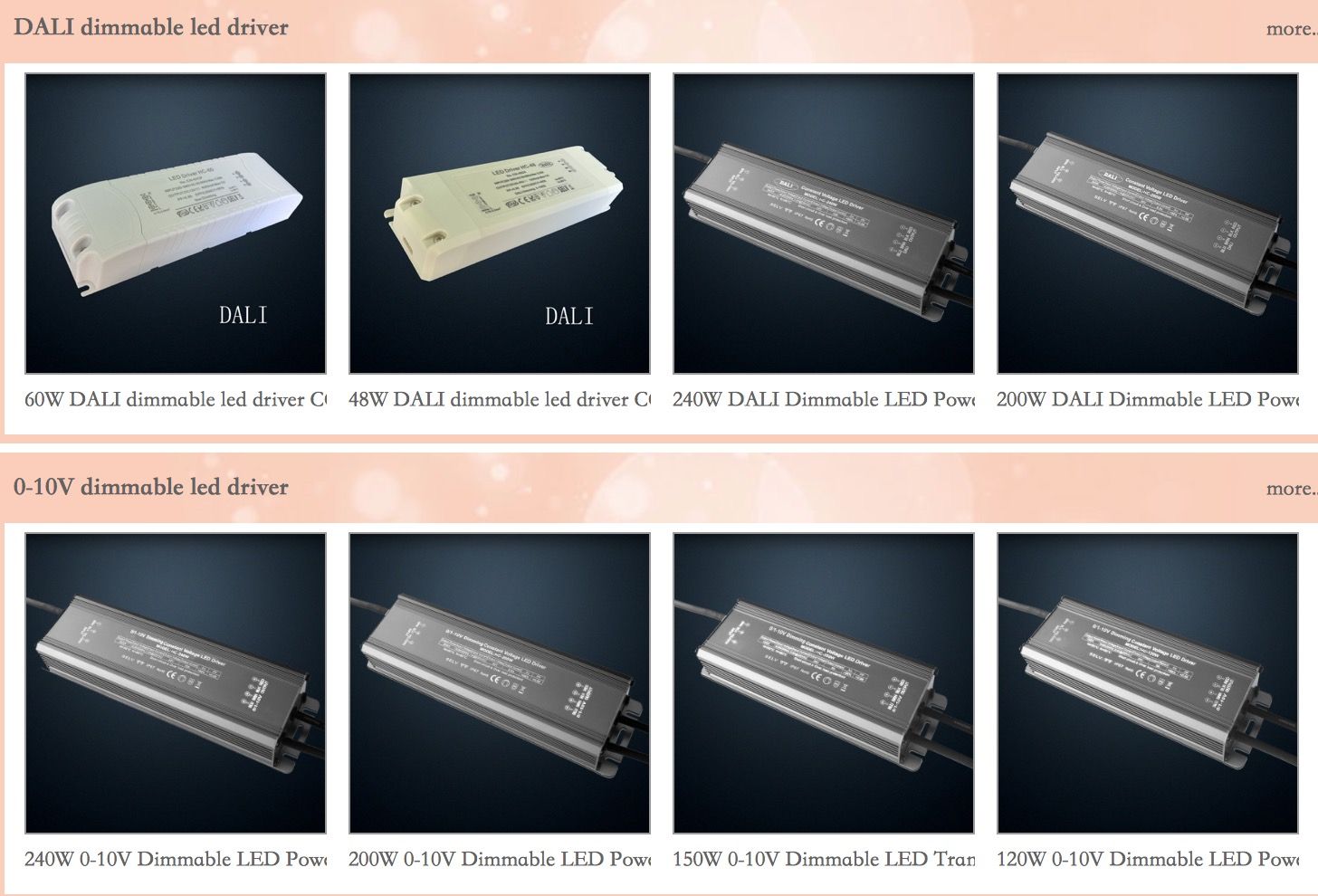

More pictures for your reference:

Packing information:
white box packing :16pcs/carton , Grosss weight :14.5kg, size: 38x27x27cm

Products we can offer:
DALI DIMMABLE LED DRIVER 5W TO 300W
TRIAC DIMMABLE LED DRIVER 5W TO 200W
0-10V DIMMABLE LED DRIVER 5W TO 240W
Waterproof led driver up to 400W
Welcome for your inquiries!

SUNRED LED Co., Limited!

We are LED driver manufacturer and LED car lighting trader located in Shenzhen, China

Which established in 2017.

Our main products are

0-10V/PWM dimmable drivers.

TRIAC dimmable LED driver,

DALI dimmable LED driver

IP67 Waterproof LED power supply

Low voltage LED transformer

LED car lighting

We have many good partners and suppliers, all of our products are with certificates,

CE EMC LVD TUV for Europ and SAA for Australia, For America market we have ETL UL certificates.

Also we can offer you good price, acceptable lead time and excellent after sale service.

Sunred LED, this young and flexible company will keep the innovation and honest in heart. To built a long good and mutual business relationship with you. Always fighting to prop the hope of green and lighten the future of the world.
