ANSI 52 Series Porcelain Disc Suspension Insulator

Name: ANSI 52 Series Porcelain Disc Suspension Insulator
Brand: all-electronics-online.com
SKU: 807649465
Availability: InStock
Rating: 4.9 (88 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	52 series
Model Number:	52-1/52-2/52-3/52-4/52-5/52-6/52-8/52-10
Rated Voltage:	0-36kv
Tensile Strength:	40-160kn
Application:	High-temperature
Material:	Porcelain
Structure:	Suspension Insulator
Connection Method:	Socket and Ball/ Clevis
Color:	Light Gray/ Brown
Brand:	Ziyong

Product Description

Suspension type insulators mechanically hold the conductor thus isolating it from contact with land and other conductors. Ziyong suspensions support mechanical and electrical charges ranging from 10,000 to 50,000 lbs. and are available in all tension levels, for both distribution and transmission systems.
Porcelain suspensions are specifically designed to comply with ANSI Class (C29.2-1992) standards, ensuring the performance of both the electrical and mechanical functions, as well as to satisfy all dimensional specifications and applicable requirements.

Standard: ANSI
Color: Brown or grey glazed

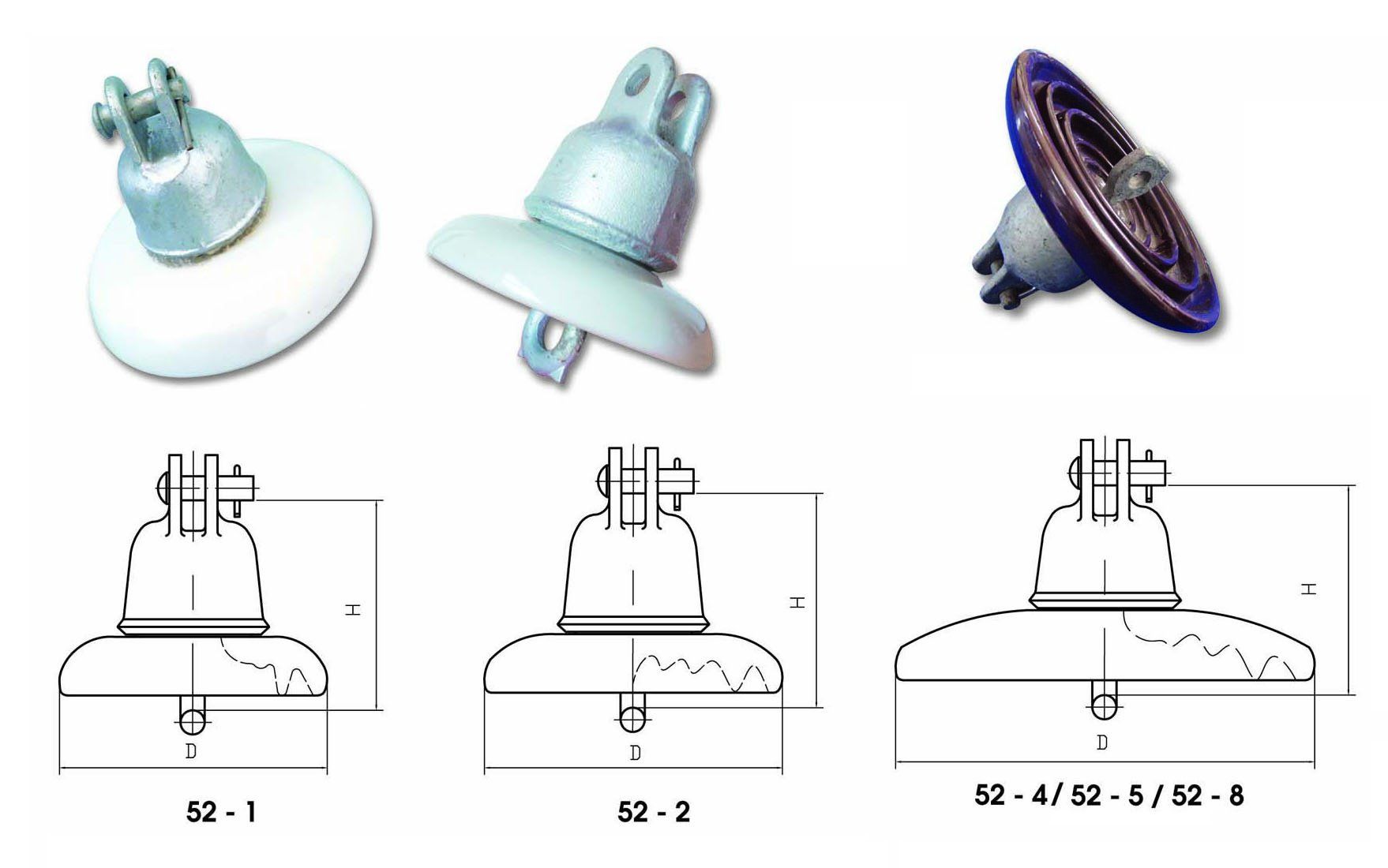

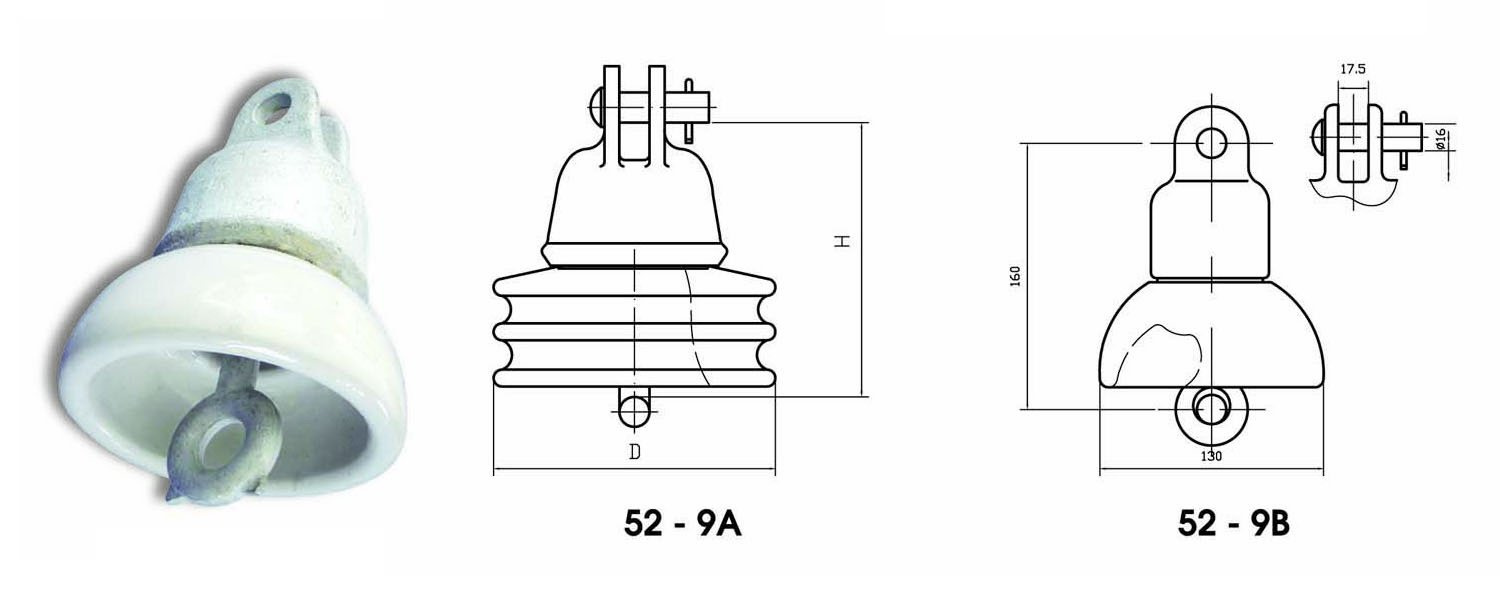

Drawing

Basic Data

ANSI Class

52-1

52-2

52-3

52-4

52-5

52-6

52-8

52-9A/B

52-10

52-11

52-12

Porcelain Disc Diameter, D. mm

152

190

254

280

108

280

300

Unit Spacing,
H. mm

140

146

160

165

156

178

Creepage Distance, mm

178

210

292

305

171

305

381

Combined M & E Strength, kN

111

160

222

Impact Strength, N-m

5.5

Routine Proof Test Load, kN

33.5

44.5

33.5

44.5

55.5

111

Time Load Test Value, kN

53.4

107

133

Power Frequency Flashover Voltage

Dry, kV

Wet, kV

Critical Impulse Flashover Voltage

Pos, kV

100

115

125

100

125

140

Neg, kV

100

115

130

140

Power Frequency Puncture Voltage, kV

110

125

Radio Influence Voltage Data

Test Voltage to Ground, KV

7.5

Max. RIV at 1000 KHz, uV

Net Weight, Each, Approx., kg

2.5

3.5

4.6

5.2

4.6

5.2

5.5

7.5

2.5

7.9

9.2

9.5

Service

Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production .
b. Random inspection during production .
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.
