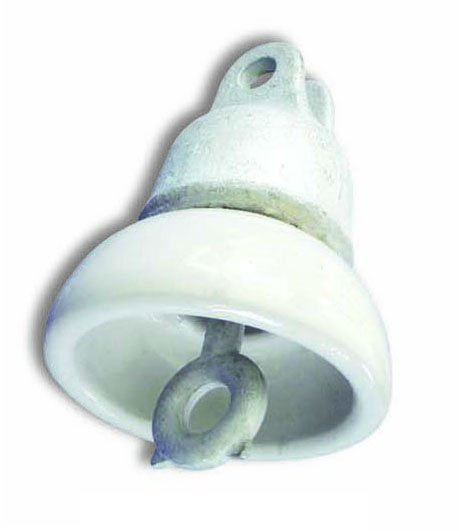

ANSI Standard 52-9A/52-9b Dead End Disc Suspension Insulator

Name: ANSI Standard 52-9A/52-9b Dead End Disc Suspension Insulator
Brand: all-electronics-online.com
SKU: 825216065
Availability: InStock
Rating: 4.7 (49 reviews)

Price:	US $ 5.45-6/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	52-9A/52-9B
Phase:	Three
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	Disc Suspension Insulator
Connection Method:	Socket and Ball
Certification:	ANSI
Color:	White/Brown
Brand:	Ziyong

Product Description

Suspension type insulators mechanically hold the conductor thus isolating it from contact with land and other conductors. Ziyong suspensions support mechanical and electrical charges ranging from 10,000 to 50,000 lbs. and are available in all tension levels, for both distribution and transmission systems.
Porcelain suspensions are specifically designed to comply with ANSI Class (C29.2-1992) standards, ensuring the performance of both the electrical and mechanical functions, as well as to satisfy all dimensional specifications and applicable requirements.

Standard: ANSI
Color: Brown or grey glazed

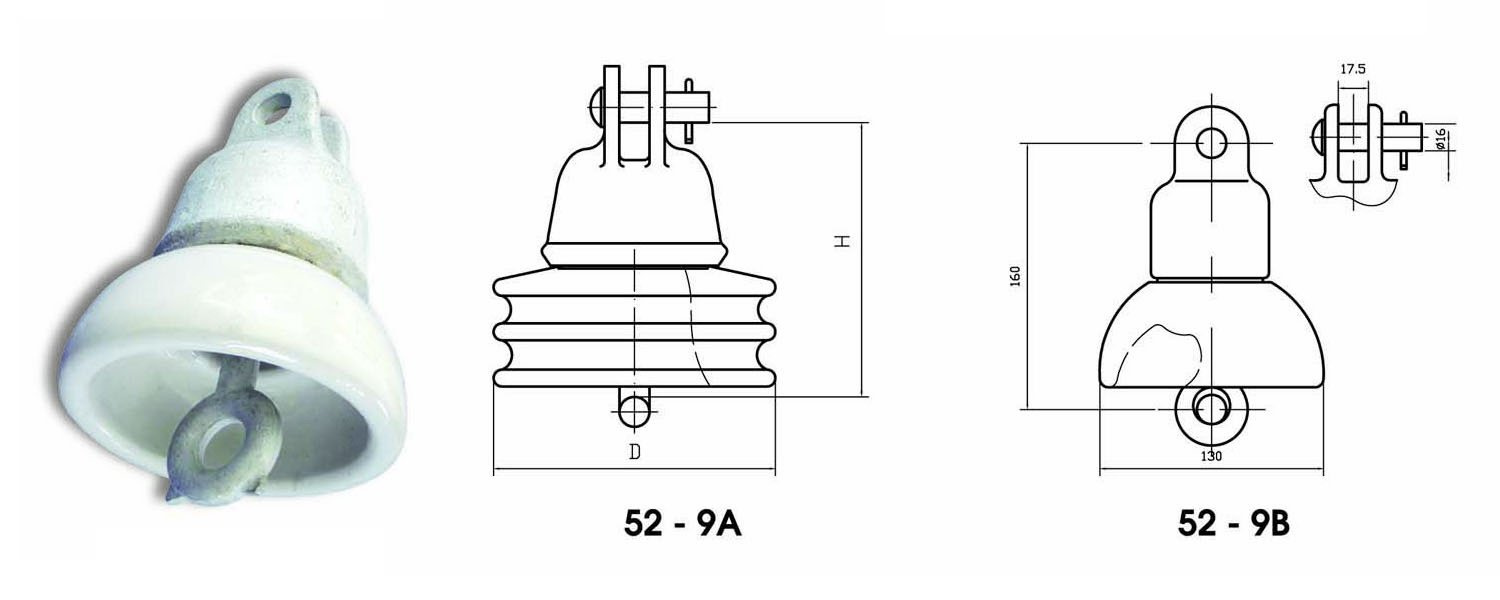

Drawing

Basic Data

ANSI Class		52-9A	52-9B
Porcelain Disc Diameter, D. mm		108	108
Unit Spacing, H. mm		160	160
Creepage Distance, mm		171	171
Combined M & E Strength, kN		44	44
Impact Strength, N-m		5	5
Routine Proof Test Load, kN		22	22
Time Load Test Value, kN		27	27
Power Frequency Flashover Voltage	Dry, kV	60	60
Power Frequency Flashover Voltage	Wet, kV	30	30
Critical Impulse Flashover Voltage	Pos., kV	100	100
Critical Impulse Flashover Voltage	Neg., kV	90	90
Power Frequency Puncture Voltage, kV		80	80
Radio Influence Voltage Data	Test Voltage to Ground, KV	7.5	7.5
Radio Influence Voltage Data	Max. RIV at 1000 kHz, UV	50	50
Net Weight, Each, Approx., kg		2.5	2.5

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
