| Prod Model: |
BAM11-3600-1x3 |
| Type: |
Polystyrene-film-capacitors |
| Application: |
Power |
| Package Type: |
Surface Mount |
| Capacitance: |
3600kvar |
Product Description
Use and Application
It's mainly used in 50Hz Frequency, 6kV, 10kV, 35kV, 66 kV and 110 kV rated voltage system of power frequency for reactive compensation to increase the power factor, decrease the loss and improve power quality.
Standard:
GB/T11024-2001 Shunt capacitors under nominal voltage above 1kV for AC power systems
JB7112-2000 Assembled High Voltage Shunt capacitors
The meaning of type model

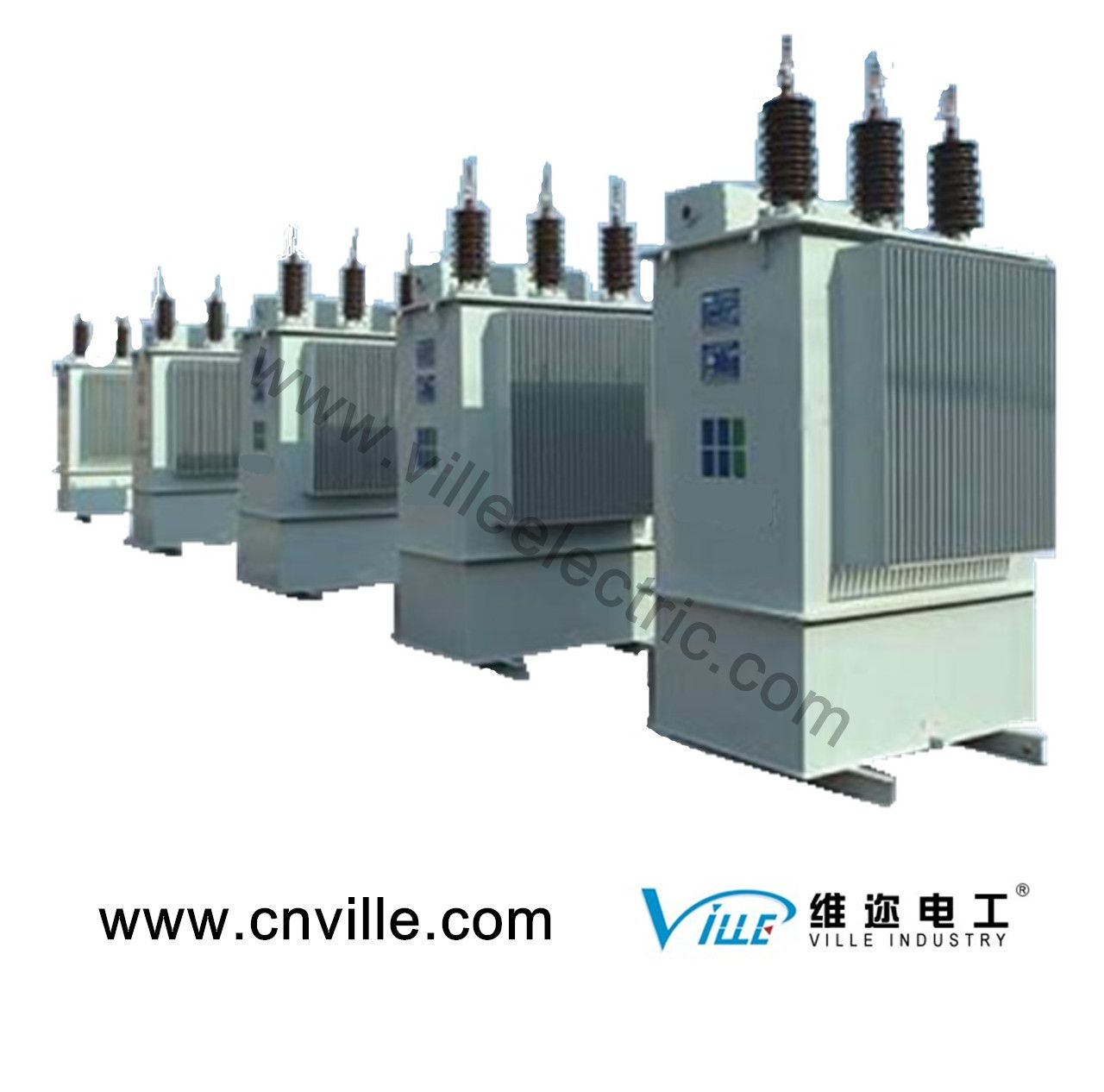

Example: BAM11/ √3-3600-1x3W
That means: Benzyl toluene impregnating, film dielectric, HV shunt capacitor, rated voltage is 11/√3kV; rated capacity is 3600kVar, three phases, outdoor.
Features:
1. Anti-explosion, fire prevention, safety and reliability.
2. Simple infrastructures.
3. Easy maintenance.
4. Small floor space.
5. High commissioning rate.
Technical parameter
1 Rated frequency: 50/60Hz
2 Loss tangent: <=0.0005
3 Number of phases: Three phases or single phase.
4 Capacitance tolerance:0~+5%.
5 Running continuously under 1.1 times rated voltage.
6 Running continuously under not above 1.3 times rated current.
7.Creeping distance of outlet bushing: >=32kV/mm
8 Bushing pollution level: 1V
Service condition:
1 The capacitors can be used in door or outdoor.
2 The altitude of the site is not more than 1000m.
3 Temperature range: -40/55ºC.
4 There is no corrosive gas and vapor, no conductive or explosive dust, no strong mechanical vibration.
5 The remaining voltage on the terminal should not exceed 10% of rated voltage when capacitors are put into operation.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.

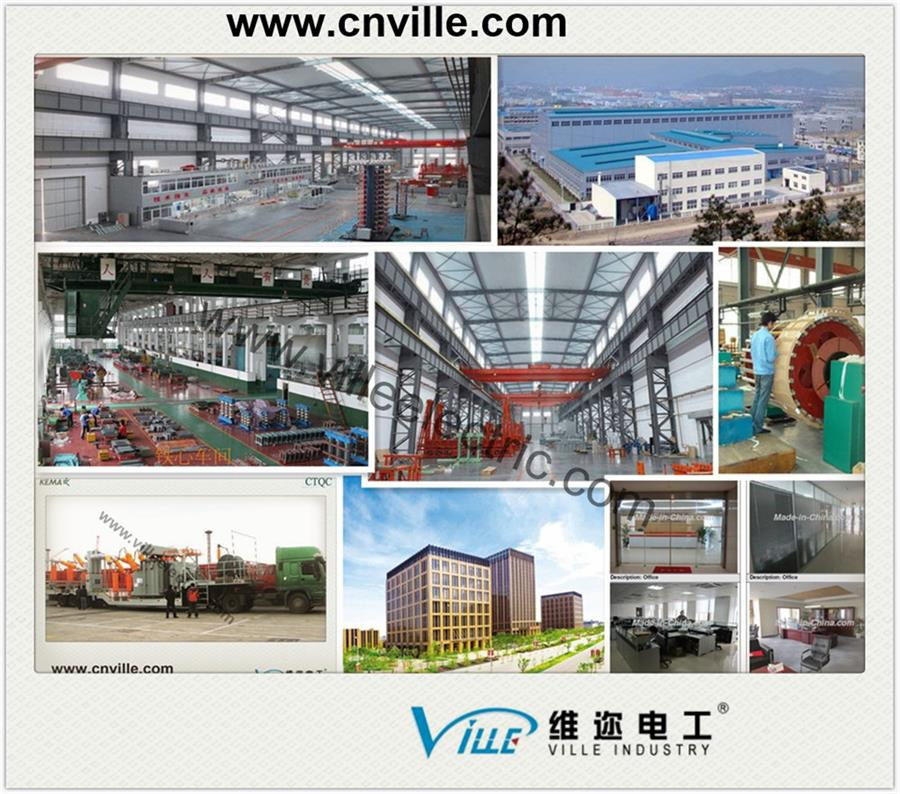

It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
