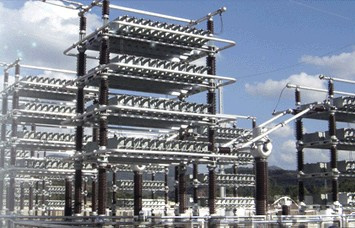

Hv Shunt Capacitor
| Price: |
US $ 200-800000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Type: |
Film Dielectric Variable Capacitor |
| Application: |
High Voltage |
| Package Type: |
Surface Mount |
| Manufacturing Material: |
Benzyl Toluene Impregnating |
| Capacitance: |
3600kvar |
Product Description
Environmental conditions
1, place of use: indoors or outdoors.
2 Altitude: ≤1000 m. (High altitude products can be designed according to user requirements)
3, ambient temperature: -40 ºC ~ + 50 ºC.
4, the installation site should be free of harmful gases, no conductive or explosive dust.
Main Features
1, the capacitor element aluminum foil protruding hemming structure, reducing the loss of the capacitor, and enhance the capacity of the capacitor and the resistance over current anti-surge shocks.
2, the capacitor element having a reliable internal fuse protection, so that damage to components reliable isolation, to ensure that does not fuse blows after heavy breakdown.
3, using imported from Germany and the world's advanced level of processing equipment and a capacitor insulating oil impregnation vacuum drying technology, more reliable operation of the capacitor.
4, the use of automatic welding gas tank capacitor, to ensure that the bead is smooth, smooth, beautiful, improve the quality of welding to ensure no leakage capacitor tank.
5, the capacitor unit with integrated sleeve.
6, Appearance: robot welding enclosure, robotic painting.Implementation of standards
GB/T11024-2001 Shunt capacitors under nominal voltage above 1kV for AC power systems
JB7112-2000 Assembled High Voltage Shunt capacitors
The meaning of type model
Example: BAM11/√3-3600-1*3W
That means: Benzyl toluene impregnating, film dielectric, HV shunt capacitor, rated voltage is 11/√3kV; rated capacity is 3600kVar, three phases, outdoor.
Features:
1. Anti-explosion, fire prevention, safety and reliability.
2. Simple infrastructures.
3. Easy maintenance.
4. Small floor space.
5. High commissioning rate.
Technical parameter
1 Rated frequency: 50/60Hz
2 Loss tangent: <=0.0005
3 Number of phases: Three phases or single phase.
4 Capacitance tolerance:0~+5%.
5 Running continuously under 1.1 times rated voltage.
6 Running continuously under not above 1.3 times rated current.
7.Creeping distance of outlet bushing: >=32kV/mm
8 Bushing pollution level: 1V
Service condition:
1 The capacitors can be used in door or outdoor.
2 The altitude of the site is not more than 1000m.
3 Temperature range: -40/55ºC.
4 There is no corrosive gas and vapor, no conductive or explosive dust, no strong mechanical vibration.
5 The remaining voltage on the terminal should not exceed 10% of rated voltage when capacitors are put into operation.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.

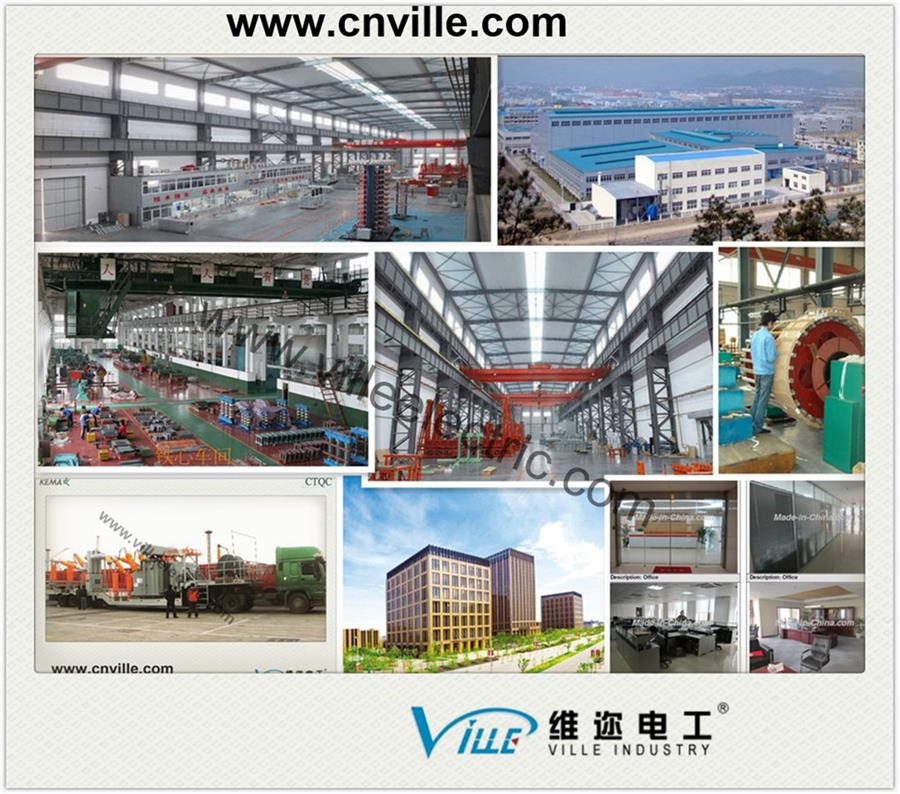

It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
