| Prod Model: |
WL-KG-1B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Frequency: |
50-60Hz |
| Detection Distance: |
12m |
| Warranty: |
2 Years Guarantee |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Application: |
Warehouse |
| Size: |
118 Type |
| Certification: |
CE |
Product Description

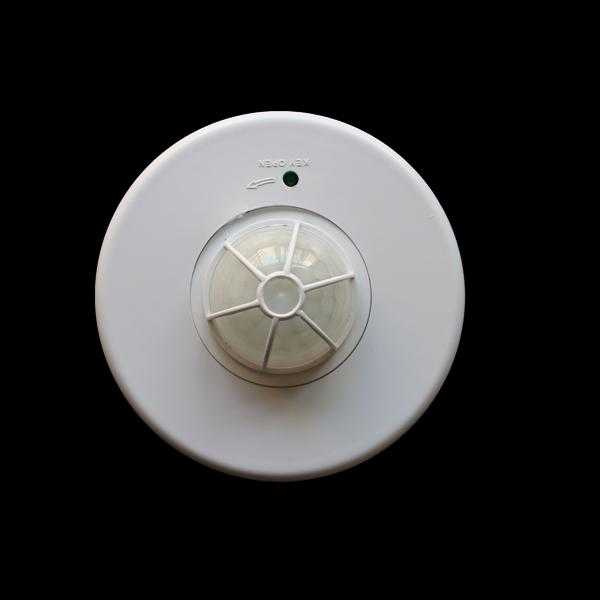

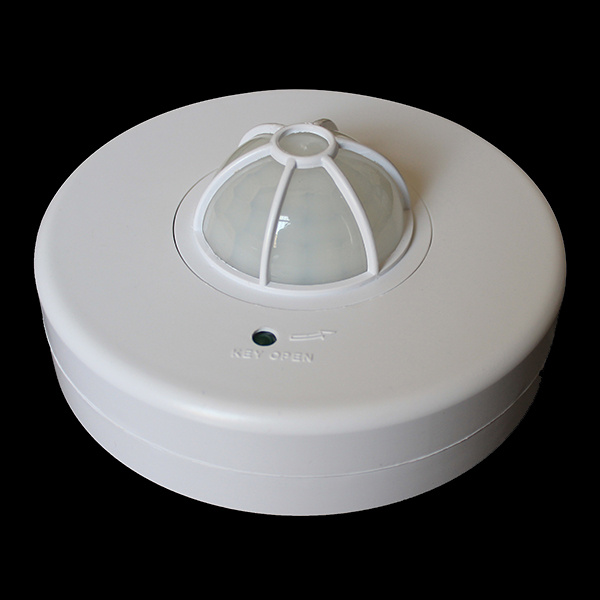

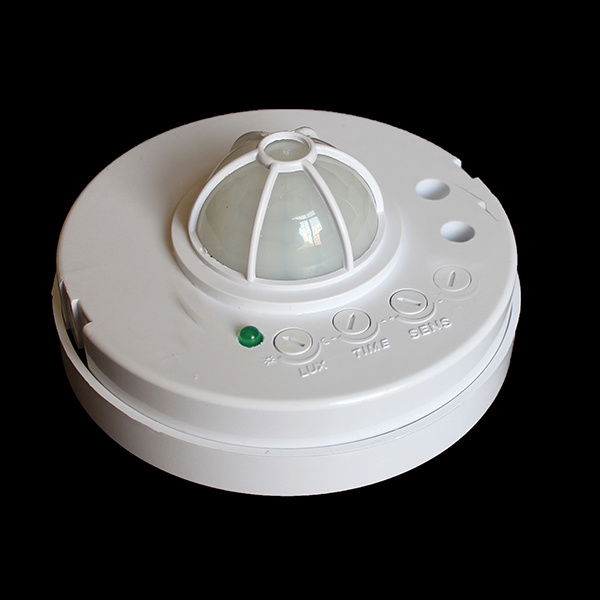

Automatic Ceiling Mounting Infrared Motion Sensor for Light Use With High Sensitivity
Feature:
1) Identify day and night automatically. Can adjust ambient light according to your desire: When turn to SUN (max), it will work day and night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing.
2) Detection distance can be set according to installation position and detection field.
3) The power show and detection show: They will flash one time each 4 seconds after putting through the power, and flash two times per second when receiving the signal. At the same time, it shows the sensor in the normal conditions for detection.
4) Time-delay added continually: When it received the second induction signal after the first inductor, you should compute time once more on the rest of the first time-delay basic. (Set time)
5) Time-delay adjustment: It can be set according to your desire. The minimum is 8+/-3 sec; The maximum is 7+/- 1min.
Locking function: During working, sensor will keep load lighting when power is shut off 2 seconds and then on. And shut off the power for 4 seconds and then on, sensor will resume automation.
1) Identify day and night automatically. Can adjust ambient light according to your desire: When turn to SUN (max), it will work day and night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing.
2) Detection distance can be set according to installation position and detection field.
3) The power show and detection show: They will flash one time each 4 seconds after putting through the power, and flash two times per second when receiving the signal. At the same time, it shows the sensor in the normal conditions for detection.
4) Time-delay added continually: When it received the second induction signal after the first inductor, you should compute time once more on the rest of the first time-delay basic. (Set time)
5) Time-delay adjustment: It can be set according to your desire. The minimum is 8+/-3 sec; The maximum is 7+/- 1min.
Locking function: During working, sensor will keep load lighting when power is shut off 2 seconds and then on. And shut off the power for 4 seconds and then on, sensor will resume automation.
1. Warranty
Normally it's one year, but if you can be our agent it will be 2 years.
2. Why choose us?
AS the professional manufacturer in GSM house alarm system with 15years experience, we developed series of alarm system with high quality and competitive price. In first business, sample order is available. With professional R&D team to provide OEM&ODM service.
3. When can I get the price?
We usually quote within 24 hours after we get your inquiry.
4. Are your samples free or need cost?
It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.
5. How can I get your samples?
You're welcomed to email us for checking. It will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.
Technical Paramters: |
| Power source | 220~240V/AC, 100~130V/AC |
| Power frequency | 50HZ/60HZ |
| Time setting | Min:8±3sec Max:7±2min |
| Detection angle | 360° |
| Detection range(22° C) | 8m max. Dia. |
| Rated load | 1200W(220~240V/AC)
800W(110~130V/AC)
3000W(220~240V/AC)
1500W(110~130V/AC) |
| Ambient light | <=3lux~daylihgt |
| Working temperature | -10~+40° C |
| Power consumption | 0.45W(static 0.1W) |
| Detection motion speed | 0.6~1.5m/s |
| Installation height | 3m |
| Working humidty | <=95%RH |
| IP | 20
|
