AVR Automatic Voltage Regulator

Name: AVR Automatic Voltage Regulator
Brand: all-electronics-online.com
SKU: 690331545
Availability: InStock
Rating: 4.9 (31 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AVR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

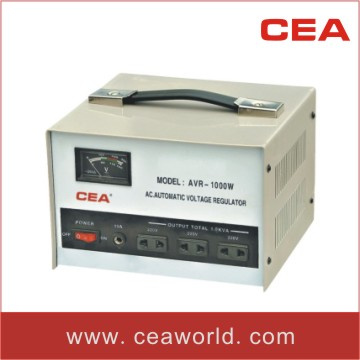

Relay type AC Automatic house-hold appliances stabilizer is composed of automatic voltage regulator and PC board. This product have the advantage of small volume, light weight, little distortion of the output wave form and quick reaction etc. It demands minimum power and can be used for a long time continuously, so it is the idealist AC stabilizer for the modern families.

Detailed product description
1. Wide voltage range
2. Input voltage display, output voltage display
3. Output delay time selectable
Specification of relay type stabilizer
1)Input voltage: 160-270V
2)Output voltage: 220V 10%
3)Phase: Single-phase
4)Frequency: 50/60Hz
5) Ambient temperature: -5 ~ +40C
6) Ambient humidity: Less than 90%
7) Temperature rise (input voltage 200V, output voltage 220V and at rated load):
Less than 75° C
8) Insulation resistance: More than 3m at DC 500V

Features:
Automatic voltage regulation
Wide Input Voltage Range
Meter Display
Large Capacity, High precision
Protection against brownouts & overvoltage
Short circuit protection
LED indicators to show status of working, unusual and delaying
Selectable delay time
Build-in transformer: Toroidal transformer
No Additional Waveform Distortion
Global Voltage Customization
