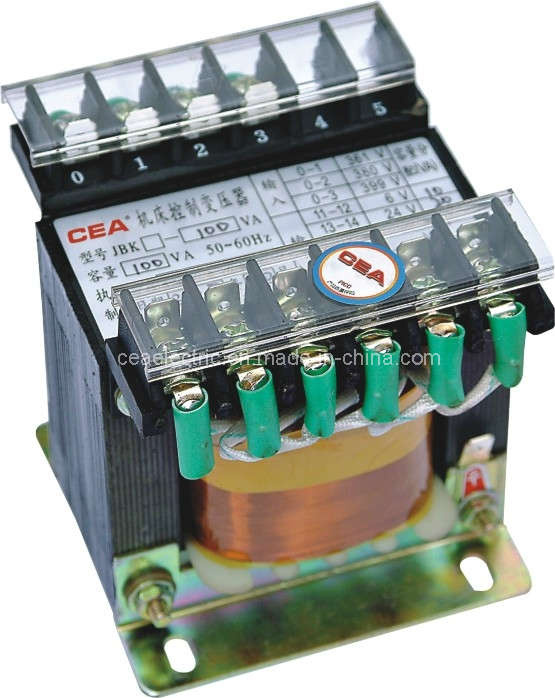

Machine Tool Control Transformer (JBK BK)

Name: Machine Tool Control Transformer (JBK BK)
Brand: all-electronics-online.com
SKU: 690361825
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1 /Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Voltage Transformer
Phase:	Single

Product Description

Specifications
BK series machine tools control transformer, MODEL: BK-25, BK-50, BK-100, BK-150, BK-200, BK-250, BK-300, BK-400, BK-500, BK-1000, BK-1500
BK Machine Tool Control Transformer
Specifications
JBK series machine tools control transformer
Feature
JBK series transformer for machine tool control is applicable to power supply control and power supply of working illumination and indication of machinery on AC50~60Hz, rated output voltage not over 220V, and rated input voltage not over 500V.
BK Feature
BK series is available in the circuit of AC 50Hz and voltage less than 1000V. It is widely used as the power source in lighting, machinery equipment, mechanical Electronic device and recirying device

type	rated capacity(VA)	load voltage	unload voltage	load current(%)	impedance voltage
JBK-40	40	2.0	5.0	50	11
JBK-100	100	3.0	10.0	30	10
JBK-250	250	6.0	18.0	25	7.2
JBK-1000	1000	15.0	32.0	16	4.0
BK-50VA	50	2.0	5.0	40	10.0
BK-150VA	150	4.0	13.5	25	9.0
BK-400VA	400	10.0	24.0	25	6.0
BK-1500VA	1500	18.0	41.0	12	3.3
BK-5000VA	5000	48.0	99.0	7	2.1

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
