Bare ACSR Cable Made in China
| Price: |
US $ 0.01-0.51/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
AS-AR-110 |
| Supplier's Nature: |
Manufacturer, Trading Company |
| Certificate: |
ISO9001,CCC |
| Current: |
DC & AC |
| Model No: |
AAC/AAAC/ACSR Cable |
| Color: |
Silver |
| Transportation: |
Byair,Sea or Express |
| Voltage: |
Low Voltage |
| Flame Test: |
IEC 60332-1 |
| Manufacturer: |
6 Years |
| Usage: |
Overhead Transmission Line |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Conductor Material: |
Aluminum |
| Certification: |
TUV |
| Application: |
Construction, Overhead, Underground, Industrial |
| Sheath Material: |
Bare |
| Insulation Material: |
No |
| Material Shape: |
Round |
| Range Of Application: |
Construction, Overhead, Underground, Industrial |
| Brand: |
Dayuan |
Product Description
Aluminum Conductor Steel Reinforced/ ACSR Bare Conductor Cable

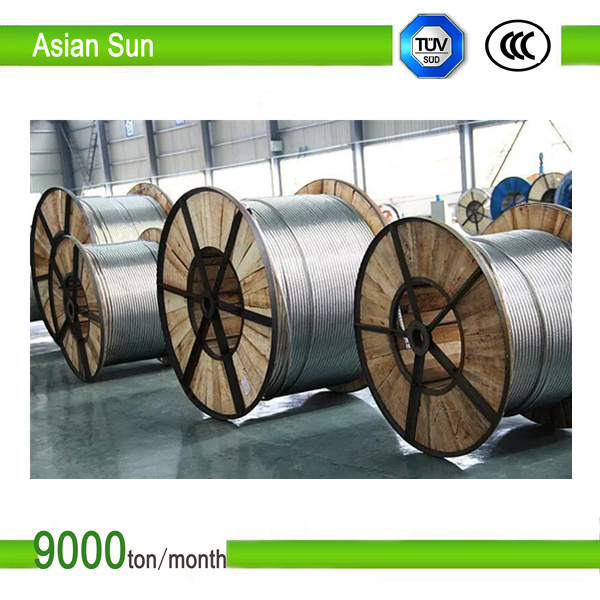

Factory View:

We have one big workshop to produce the raw material: aluminium wire rod about 800ton/day, many company buy it from us to produce various cable so that our monthly turnover of it has up to 100 million! So our price is very competitive and can gurantee the delivery time!
Product Description
ACSR (Aluminum Conductor Steel Reinforced), consisting of a galvanized steel core, is surrounded by concentric layers of aluminum wire, and grease if necessary.
Application:
Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.
Technical characteristics:

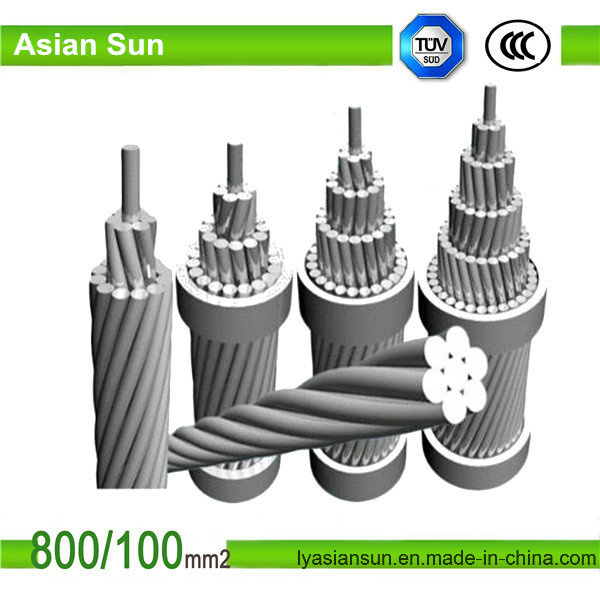

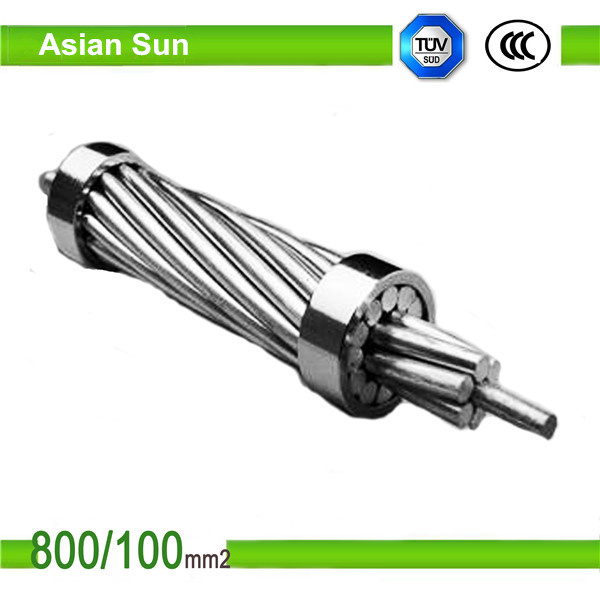

(1) Cable picture

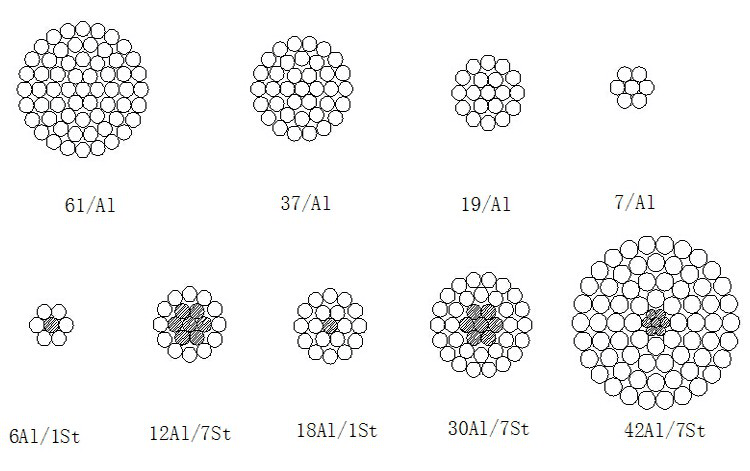

(2) Cable Drawing

We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
ACSR ASTM STANDARD Technical Datasheet
| Code | Size | Section | Stranding | Diameter | Total Weight | Rated Strength | Maximum Resisitance @20°C |
|
| Al | Total | Al | Steel | Cable | Steel |
AWG or MCM | mm² | mm | mm | kg/km | kg | Ω/km |
| Wren | 8 | 8.37 | 9.81 | 6×1.33 | 1×1.33 | 3.99 | 1.33 | 33.8 | 340 | 3.4017 |
| Turkey | 6 | 13.3 | 15.48 | 6×1.68 | 1×1.68 | 5.03 | 1.68 | 53.7 | 540 | 2.1135 |
| Swan | 4 | 21.15 | 24.71 | 6×2.12 | 1×2.12 | 6.35 | 2.12 | 85.4 | 846 | 1.3278 |
| Swanate | 4 | 21.15 | 26.52 | 7×1.96 | 1×2.61 | 6.53 | 2.61 | 99.7 | 1067 | 1.3133 |
| Sparrow | 2 | 33.62 | 39.23 | 6×2.67 | 1×2.67 | 8.03 | 2.67 | 136 | 1289 | 0.8343 |
| Sparate | 2 | 33.62 | 42.13 | 7×2.47 | 1×3.30 | 8.26 | 3.3 | 159 | 1650 | 0.8251 |
| Robin | 1 | 42.41 | 49.48 | 6×3.00 | 1×3.00 | 9.02 | 3 | 171 | 1612 | 0.6621 |
| Raven | 1/0 | 53.51 | 62.39 | 6×3.37 | 1×3.37 | 10.11 | 3.37 | 216 | 1987 | 0.5243 |
| Quail | 2/0 | 67.44 | 78.65 | 6×3.78 | 1×3.78 | 11.35 | 3.78 | 273 | 2401 | 0.416 |
| Pigeon | 3/0 | 85.02 | 99.23 | 6×4.25 | 1×4.25 | 12.75 | 4.25 | 344 | 3006 | 0.3304 |
| Penguin | 4/0 | 107 | 125 | 6×4.77 | 1×4.77 | 14.3 | 4.77 | 433 | 3787 | 0.2618 |
| Owl | 266.8 | 135 | 153 | 6×5.36 | 7×1.79 | 16.09 | 5.37 | 507 | 4330 | 0.2109 |
| Waxwing | 266.8 | 135 | 143 | 18×3.09 | 1×3.09 | 15.47 | 3.09 | 431 | 3117 | 0.2119 |
| Partridge | 266.8 | 135 | 157 | 26×2.57 | 7×2.00 | 16.31 | 5.98 | 547 | 5113 | 0.21 |
| Oatrich | 300 | 152 | 177 | 26×2.73 | 7×2.12 | 17.27 | 6.36 | 614 | 5755 | 0.1867 |
| | | | | | | | | | | |
Certifications
ISO9001:2008, OHSAS, CCC, TUV Certifications.

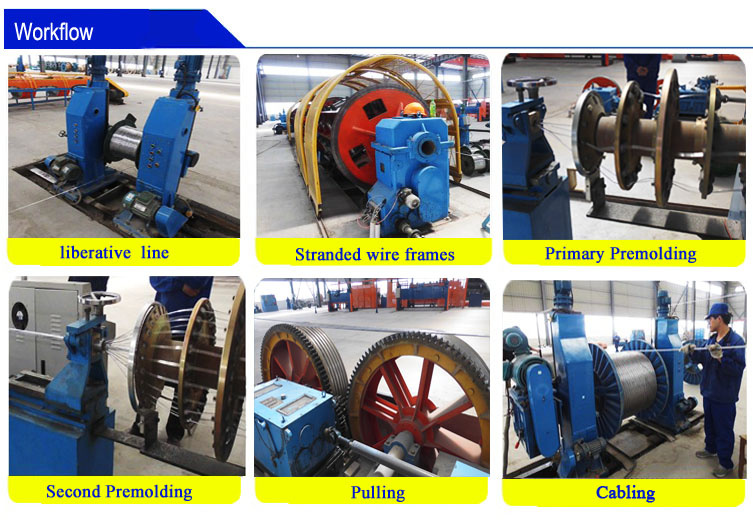

Workflow:

Packaging & Shipping:
For Package: Support to pack as rolls, or with wooden drum or wooden steel drum:

Our Services:
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) and solar pv cables etc. Standards supported: ASTM, BS, CSA, IEC, DIN and GB etc as your need.
1. Factory: 200,081 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, CQC, ISO9001:2008;
4. Payment terms: T/T, L/C, O/A;
5. Guarantee: 20 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Customers Visiting:

Your success is our business. Give us a chance, give you more choices.
Please feel free to contact me for more information,we will be available always:

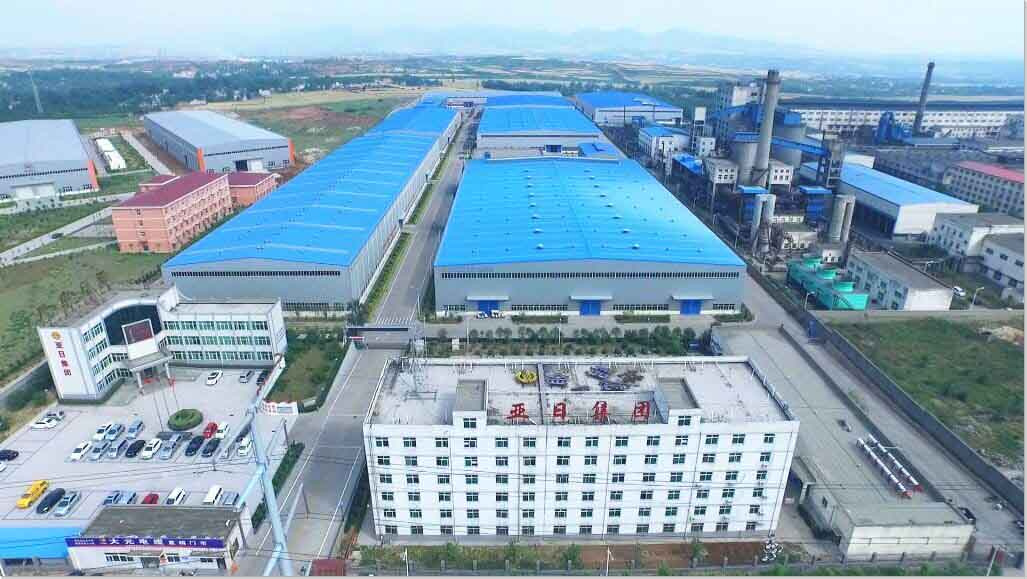

Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
