| Prod Model: |
Max-Dayuan-AAC-10 |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
Bare |
| Certification: |
CCC |
| Range Of Application: |
Overhead |
| Brand: |
Dayuan |
| Sheath Material: |
Bare |
Product Description
Material Standard:ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 aluminum conductors steel-reinforced -For overhead power transmissio
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced

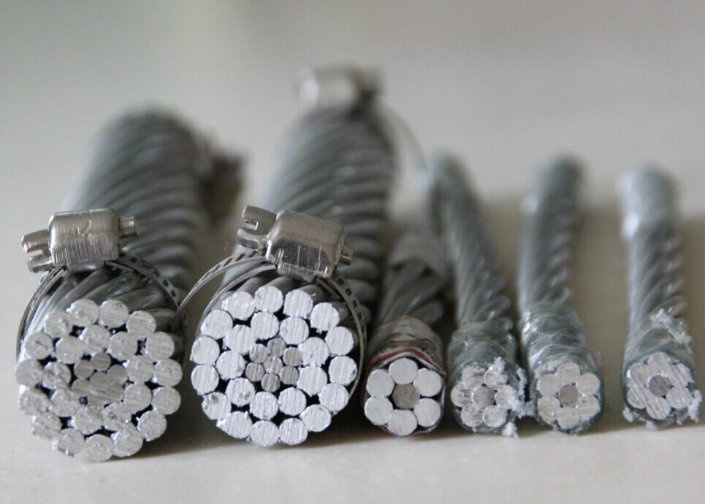

Technical characteristics 1) Conductor picture

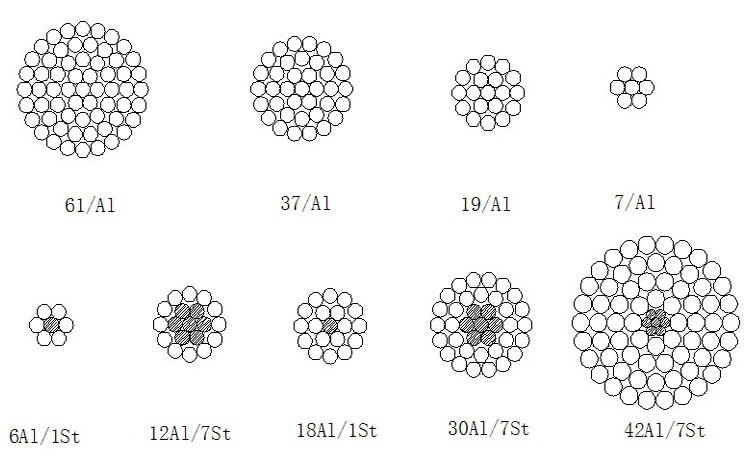

(2) Condcutor Drawing
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc. | Code | Size | Section | No. of Strands | Diameter Strands | Weight | Rated Strength | Maximunm Resistance @20°C |
|
|
| AWG o MCM | in² | mm | mm | kg/km | kg | Ω/km |
| Peachbell | 6 | 13.3 | 7×1.56 | 4.66 | 36.6 | 254 | 2.170 |
| Rose | 4 | 21.15 | 7×1.96 | 5.88 | 58.3 | 399 | 1.364 |
| Iris | 2 | 33.62 | 7×2.47 | 7.42 | 92.7 | 611 | 0.857 |
| Pansy | 1 | 42.41 | 7×2.78 | 8.33 | 117 | 740 | 0.681 |
| Poppy | 1/0 | 53.51 | 7×3.12 | 9.36 | 147.5 | 897 | 0.539 |
| Aster | 2/0 | 67.44 | 7×3.50 | 10.51 | 186 | 1136 | 0.427 |
| Phlox | 3/0 | 85.02 | 7×3.93 | 11.8 | 235 | 1375 | 0.339 |
| Oxlip | 4/0 | 107 | 7×4.42 | 13.25 | 296 | 1738 | 0.268 |
| Daisy | 266.8 | 135 | 7×4.96 | 14.88 | 373 | 2191 | 0.213 |
| Laurel | 266.8 | 135 | 19×3.01 | 15.05 | 373 | 2254 | 0.213 |
| Tulip | 336.4 | 171 | 19×3.38 | 16.9 | 470 | 2786 | 0.169 |
| Canna | 397.5 | 201 | 19×3.68 | 18.38 | 555 | 3219 | 0.143 |
| Cosmos | 477 | 242 | 19×4.02 | 20.12 | 666 | 3803 | 0.119 |
| Syringa | 477 | 242 | 37×2.88 | 20.18 | 666 | 3932 | 0.119 |
| Dahlia | 556.5 | 282 | 19×4.35 | 21.73 | 777 | 4431 | 0.102 |
| Mistletoe | 556.5 | 282 | 37×3.11 | 21.8 | 777 | 4495 | 0.102 |
| Orchid | 636 | 322 | 37×3.33 | 23.31 | 888 | 5154 | 0.089 |
| Violet | 715.5 | 363 | 37×3.53 | 24.73 | 1000 | 5791 | 0.079 |
| Nasturtium | 715.5 | 363 | 61×2.75 | 24.76 | 1000 | 5960 | 0.079 |
| Arbutus | 795 | 403 | 37×3.72 | 26.07 | 1110 | 6303 | 0.071 |
| Lilac | 795 | 403 | 61×2.90 | 26.11 | 1110 | 6501 | 0.071 |
| Anemone | 874.5 | 443 | 37×3.91 | 27.37 | 1222 | 6821 | 0.065 |
| Crocus | 874.5 | 443 | 61×3.04 | 27.36 | 1222 | 7144 | 0.065 |
| Magnolia | 954 | 483 | 37×4.08 | 28.55 | 1333 | 7428 | 0.059 |
Relation Products
Company Information: Luoyang Da Yuan Cable Factory Co., Ltd.is a professional leading manufacturer in the field of wires and cables, was established in 2006 of China. We have been specialized in producing wires and cables for several years which can be applied in many areas, our main products are power cable, solar cable, and overhead line cable like ACSR, AAC, ABC cable, control cable, transformer, and aluminum wire rod. We have advanced automatic production lines. Besides, we can provide the raw material of aluminum cable as well, thus our price is very competitive and reasonable.

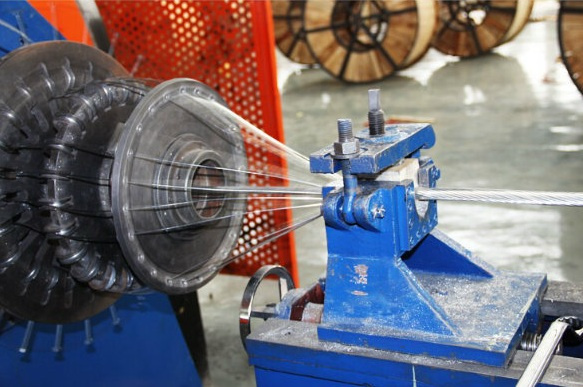

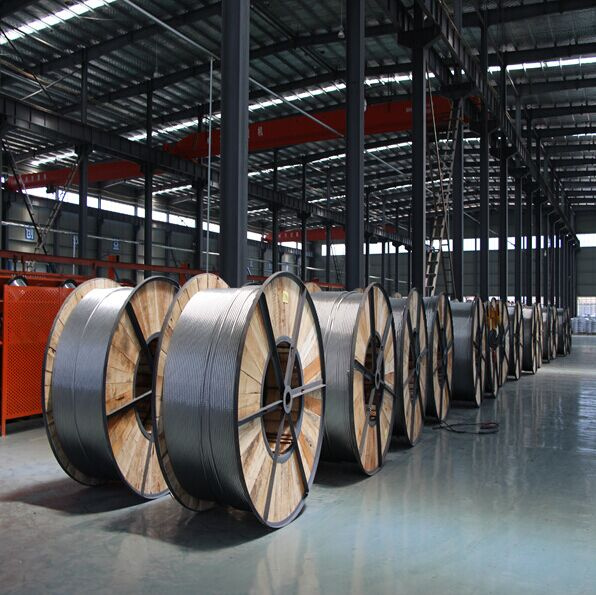

Workshop for AAC Conductor

Packing & Delivery for AAC Conductor | Packaging Details: | Drum size:0.7*0.7*0.7m 72 drums/20 Fcl 25ton/20 fcl Drum size:1.1*1.1*0.8m 28 drums/20 Fcl 25ton/20 fcl Drum size:1.8*1.8*1.1m 6 drums/20 Fcl 25ton/20 fcl Drum size:2.2*2.2*1.1m 5 drums/20 Fcl 25ton/20 fcl All the drum we using is Fumigation wooden tray, we can aslo make as customer requirement! |
| Delivery Detail: | Within 10 working days after payment or depend on the quantity |
