Bedford Multi-Function Good Quality Pressure Transducer/Sensor

Name: Bedford Multi-Function Good Quality Pressure Transducer/Sensor
Brand: all-electronics-online.com
SKU: 648936025
Availability: InStock
Rating: 4.9 (131 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Bedford Pressure Transducer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle Of Work:	Vector Control Transducer
Application:	Many Field
Features:	Multi-Function
Response Time:	10ms
Wiring Type:	2/3 Wire

Product Description

Product Description

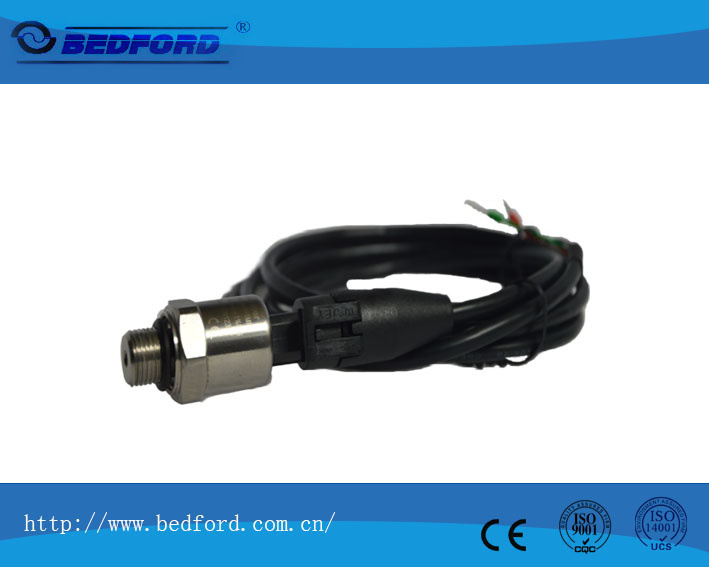

BDF-CTA series pressure transmiter is a high-volue, low-cost,OEM,civil ,inductrial ,high-quality and reliable products,small size,ligh weight.

Pressure transducer: 0~1.0Mpa
. Overload: 1.5 times of full cales
. Accuracy: (Nonlinear+Repeatability+Hysteresis)
. ± 1%FS(10~40º C)
. ± 2%FS(0~80º C)
. ± 4%FS(-40~135º C)
. Power supply: 1.12~28VDC; 2.4.5~5.5VDC(5~20VDC selectable)
. Output: 4~20mA

convention	Numerical value				remark
Pressure Range	During 5bar ...50bar pressure range				1bar=100kPa
Over-load pressure	1.5 times of rated pressure
Break down pressure	3 times of the rated pressure
accuracy	1,2,4%F.S,(for high-precision please select PT100 or 300 series)
Stability	Typical value of 0.5%F.S, Maz:1%F.S
Operating temperature	-40~-120
Compatible media	All corrosive media compatible to 1Cr 18Ni9Ti ceramic
Appliance performance	2-wire	3-wire
Output signal	4~20mA	0.5-4.5V
Power supply	12~30Vdc	5Vdc	0~30Vdc/ac	Vdc/ac AC-DC dual-use
Load resistance	>100K
Pressure port	G1/4 NPT1/4 7/16-20UNF
Form of pressure	Gauge G

Guangzhou Bedford Electric Equipment Co., Ltd. is a high-tech enterprise integrating the R&D, production, sale and service together, specializing in Bedford series frequency inverters, AC Drives, VFD, VSD, intelligent constant pressure water pump controllers, complete water supply equipment, special inverter for injection machine and all kinds of motor savers which are widely used on general industry motor, fans, industry washing machine, packing, printing, textile machine, screw air-compressor and other applications. With a production capacity of 2000PCS/month, achieving ISO9001, ISO14001 since 2009 and the latest standards of GB/T12668.2.2002 and EMC GB 12668.3-2004 Certificate issued by the Nation Quality Supervision and Inspection Center. In addition, we have a group of professional software and hardware developers. We can develop special electric products to meet clients' requirements.

We welcome the customers and friends from both home and abroad to establish long-standing, mutual benefit business relationship with us.
