Brushless DC Servo Motor D706 with 36-310volatge

Name: Brushless DC Servo Motor D706 with 36-310volatge
Brand: all-electronics-online.com
SKU: 768760245
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D706
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	70mm
Rated Power:	156--313W
Rated Voltage:	36--310V
Current:	1.44--3.35A
Rated Speed:	3000rpm
Rated Torque:	0.5--1nm
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	BLDC Motor
Number Of Poles:	BLDC Motor
Type:	BLDC Motor
Brand:	I.CH

Product Description

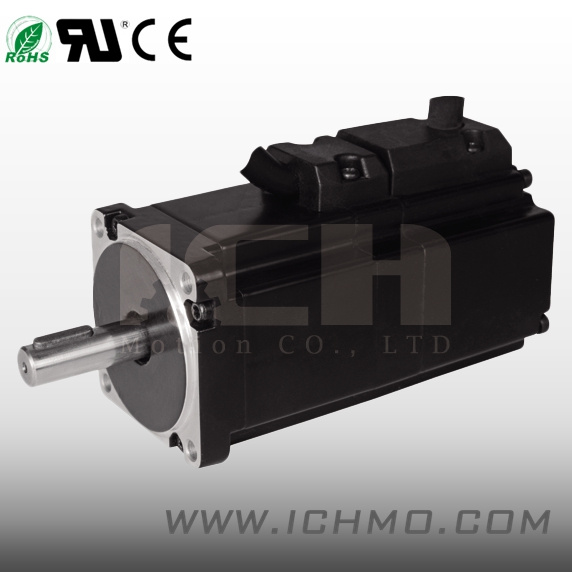

I. CH - Brushless DC Servo Motor D706(70MM)

Specifications:
-Rated Power: 156-313W
-Rated Voltage: 36-310V
-Current: 1.44-3.35A
-Number of Poles: 8
-Rated Speed: 3000RPM
-Rated Torque: 0.5-1N. M
-Peak Torque: 1.5-3N. M
-Length: 60-90mm
-Weight: 1.3-2.08Kg
-Encoder; 1000p/k

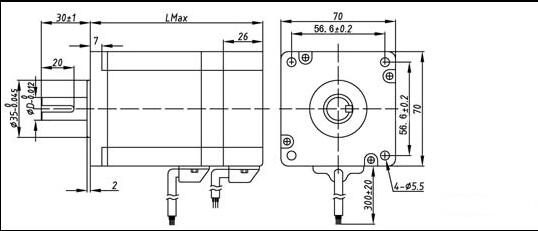

Drawing:

Specification
Model	Rated power	Rated voltage	Current	Number of poles	Rated speed	Rated torque	Peek torque	Moment constant	Length	Weight	Encoder
Model	W	V	A		rpm	N.m	N.m	N.m/A	mm	Kg	p/k
D706-05034	156	36	3.35	8	3000	0.5	1.5	0.149	60	1.3	1000
D706-10014	313	310	1.44	8	3000	1	3	0.69	90	2.08	1000

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
