Bsqd Parallel Connection Voltage Multiplex Transmitters

Name: Bsqd Parallel Connection Voltage Multiplex Transmitters
Brand: all-electronics-online.com
SKU: 804292135
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 49-199/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-BSQD
Delivery Time:	3-7days
Product Name:	External Transmitter
Warranty:	1year
Reference Input:	0~20mv
Reference Output:	0~5/0~10 V
No-Linear:	±0.03%F·s
Supply Voltage:	12/24VDC
Level Of Protection:	IP65

Product Description

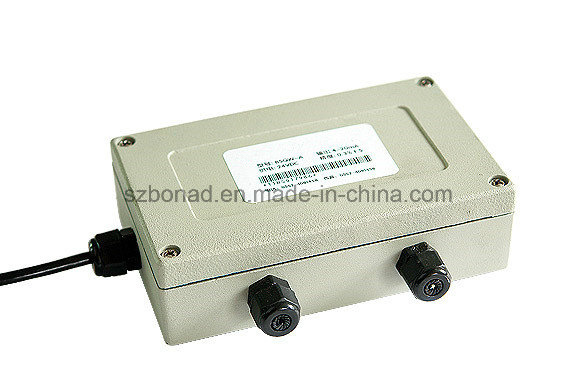

BSQD Parallel connection voltage Multiplex Transmitters

This multiplex transmitter Can be connected directly in parallel 2 ~ 4 way strain sensor. Each sensor can be independent correction; with power surge protection; input reverse polarity protection and output protection; current / voltage output form

Technical parameter:

parameter	unit	Technical parameter
Reference input	mV	0~20
Reference output	V	0~5/0~10
Reference output	mA	4~20
No-linear	%F·S	±0.03
Supply voltage	VDC	12,24
Level of protection	Ip65

What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
Most instruments support MOQ one set.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package?
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
