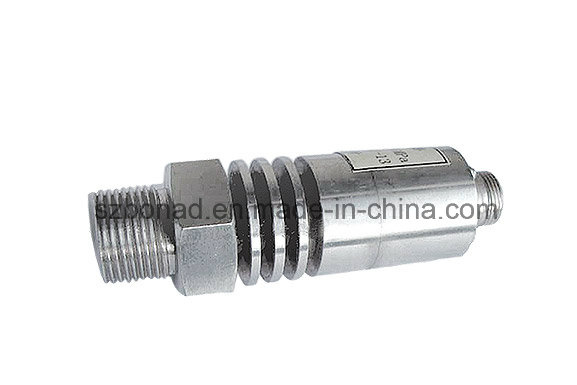

Cfbpg High Temperature Pressure Transmitter Used in Thermal Engineering

Name: Cfbpg High Temperature Pressure Transmitter Used in Thermal Engineering
Brand: all-electronics-online.com
SKU: 804277305
Availability: InStock
Rating: 4.9 (131 reviews)

Price:	US $ 45-299/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBPG
Delivery Time:	3-7days
Warranty:	1year
Product Name:	High Temperature Pressure Transmitter
Isolation Diaphragm:	1Cr18Ni9Ti Stainless Steel
Measure Range:	-0.1kpa~0~0.01kpa~100MPa
Measure Medium:	Various Liquids, Gases or Vapors Compatible
Zero Output:	-20ºC~85ºC
Accuracy:	±0.25%F·s
Power Supply:	15~30VDC

Product Description

CFBPG High temperature pressure transmitter used in thermal engineering

Technical parameters:

Parameter	unit	Technical parameter		parameters			unit		Technical parameters
Measure medium	Various liquids, gases or vapors compatible with 316 stainless steel			Measure range				-0.1KPa~0~0.01KPa~100MPa
Overload	1.5 times the full-scale pressure or 110MPa (take the minimum)			Voltage type			Gauge pressure, absolute pressure, sealed reference pressure
Power supply	15~30VDC			15~25VDC					15~28VDC
Output signal	4~20mADC			0~10/20mADC					0/1~5/10vdc
Transmission mode	2wire			3wire					3wire
accuracy	±0.25%F·S					max:±0.25%F·S
	Including non-linearity, hysteresis and repeat ability
Long-term stability	prototype:±0.1%F·S				Max:±0.2%F·S
Zero temperature coefficient	0.03%F·S/ºC(≤100KPa)				0.02%F·S/ºC(>100KPa)
	0.03%F·S/ºC(≤100KPa)				0.02%F·S/ºC(>100KPa)
Working tempt	-30~150ºC		Storage tempt			-40~200ºC
Load resistance	≤(U-15)/0.2Ω		Electrical connection			Cable connection, air plug, Hessman plug-in
Case materials	Stainless steel 1Cr18Ni9Ti		procedural interface			M12×1;M20×1.5 or G1/4 external thread
Level of protection	IP65		explosion-proof sign			Exia CT6

FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
