Cfbhzh Combined Weighing Compression Round Load Cell 2kg-200kg

Name: Cfbhzh Combined Weighing Compression Round Load Cell 2kg-200kg
Brand: all-electronics-online.com
SKU: 802210525
Availability: InStock
Rating: 4.3 (78 reviews)

Price:	US $ 99-299/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBHZH
Warranty:	1year
Delivery Time:	3-7days
Product Name:	Combined Load Cell
Nonlinear:	±0.05%Fs
Output:	Analog Sensor
Output Resistance:	350±5Ω
350±5Ω:	150%F S
Material:	Alloy Steel

Product Description

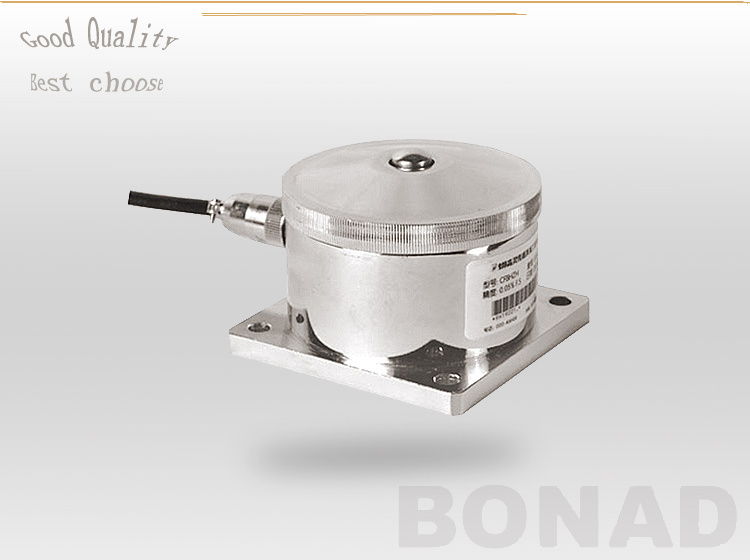

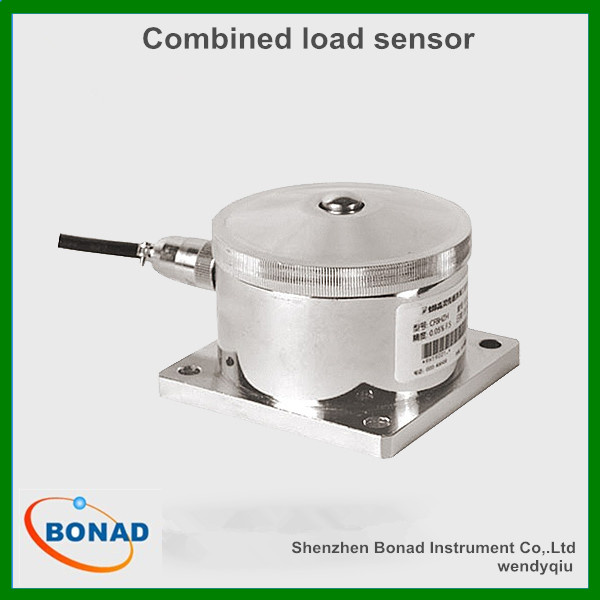

CFBHZH combined weighing compression round load cell 2kg-200kg

Features and Uses:

The sensor uses Spoke elastomer structure , the use of shear stress theory, with a low profile, anti-bias load , high precision, good intensity. For testing a variety of loading forces,it can output various kinds of standard signal, directly to the PLC or computer. Widely used in all kinds of belt scale, scale and load speed regulation and industrial automation of weighing measuring control system.

Technical Parameters:

parameters	Unit	Technical Parameters	Parameters	Unit	Technical Parameters
Sensitivity	mV/V	2.0±0.05	temperature sensitivity coefficient	≤%F·S/10°C	±0.05
Nonlinear	≤%F·S	±0.05	Operating Temperature Range	°C	-20°C~+80°C
Lag	≤%F·S	±0.05	Input Resistance	Ω	350±20Ω
Repeatability	≤%F·S	±0.03	Output Resistance	Ω	350±5Ω
Motility changes	≤%F·S/30min	±0.05	Safety overload	≤%F·S	150%F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10°C	±0.05	Recommended excitation voltage	V	10V~15V
