Cfbhd Stationary Pulley Load Cell Apply in Automatic Measurement

Prod Model:	BND-CFBHD
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Semiconductor Load Cell
Operating Temperature Range:	-20°c~+80°c
Safety Overload:	150%F·s
Recommended Excitation Voltage:	10V-15V
Output Resistance:	120±12Ω
Pattern:	Stationary Pulley Type

Product Description

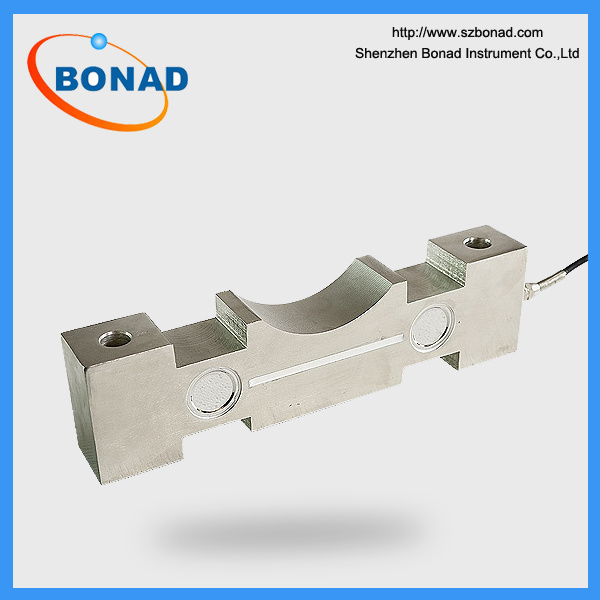

CFBHD stationary pulley load cell apply in automatic measurement

Product Description:
This kind of sensor adopt double shearing beam  structure,high integrated accuracy,sample installing,good longterm stability ,good compatibility.the stationary pulley sensor is widely applied in the automatic measurement control system of jackup ,water conservancy ,colliery and so on .

Spectifications:

parameters	Unit	Technical Parameters
Sensitivity	mV/V	1.5±0.05
Nonlinear	≤%F·S	±0.05
Lag	≤%F·S	±0.05
Repeatability	≤%F·S	±0.03
Motility changes	≤%F·S/30min	±0.05
Zero output	≤%F·S	±1
Zero temperature coefficient	≤%F·S/10°C	±0.05
Temperature sensitivity  coefficient	≤%F·S/10°C	±0.05
Operating Temperature Range	°C	-20°C~+80°C
Input Resistance	Ω	750±20Ω
Output Resistance	Ω	700±5Ω
Safety overload	≤%F·S	150%F·S
Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Recommended excitation voltage	V	10V~15V

FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping

What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample

what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.

How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .

What is the warranty of the products?
One year ,but we can provide you life long support .

What is the package
Export standard Solid wooden case

What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .

What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
