Bt3002 Coaxial Cable

Name: Bt3002 Coaxial Cable
Brand: all-electronics-online.com
SKU: 721447805
Availability: InStock
Rating: 5 (83 reviews)

Price:	US $ 0.08-0.15/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	15000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WM-COAX-032
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductors:	16
ODM/OEM:	Available
Free Sample:	Available
Sample Time:	in 2 Days for Current Model
Advantage:	Good Quality and Great Service
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	UL
Type:	Coaxial
Model:	Bt3002 Coaxial Cable/ RG6 Coaxial Cable
Brand:	Weimai

Product Description

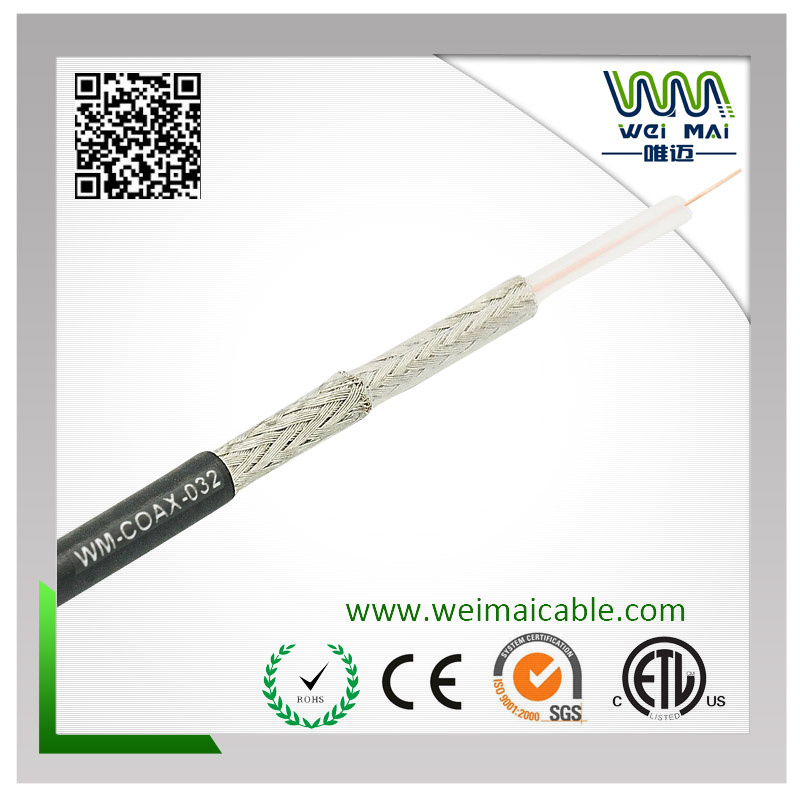

BT3002 Coaxial Cable
Item: WM-COAX-032

1) Construction

Center Conductor:

0.32mm Copper/CU

Dielectric:

1.95+0.05mm Solid PE

Braid Coverage:

80X0.11mmTinned CCA Braiding 60%Coverage

Jacket:

3.55+0.10mmPVC white/Black

Package:

100M/Roll 305M/Drum 1000ft/500ft/Pull Box

2) Characteristics

Sparker Test:	4000VAC
Impedance:	75+3 Ohm
Capacitance:	54+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.81	2.65
50	1.5	4.9
100	2.0	6.5
200	2.8	9.2
400	4.1	13.6
700	5.6	18.4
900	6.2	20.3
1000	6.68	21.9
1450	8.15	26.72
1800	9.0	29.5
2250	10.56	34.62

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
