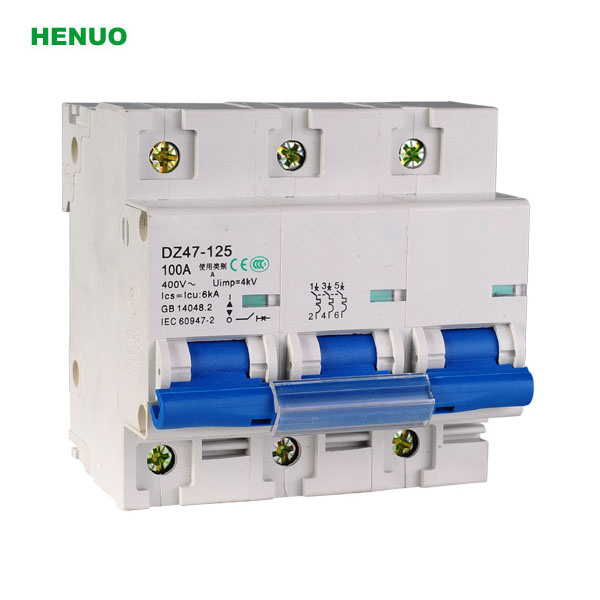

| Prod Model: |
DZ47-125 3P |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
230VAC/400VAC |
| Rated Current: |
20-125A(20,25,32,63,80,100 |
| Operating Performance (Light): |
8500time |
| Frequency: |
50Hz/60Hz |
| Operating Performance (Load): |
1500times |
| Place Of Origin: |
Zhejiang, China |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
APPLICATION
HL30 series connecting isolation swtich is suitable AC 50Hz or 60Hz,rated voltage 400V and below,rate current 100A and below,to be the main switch of the terminal appliance,as well as control the electromotor,small-power appliance and illumination etc.It conforms to the standards GB14048.3 and IEC60947-3
TECHNICAL DATA
Rated voltage |
Rated current |
Rated making and breaking capacity |
Rated short-circuit making capacity |
Rated short circuit fuse capacity |
230/400V |
32A,63A,80A,100A |
3Ie,1.05Ue,COSΦ=0.65 |
1500A |
1200A/Is |
Rated voltage:230/400V
Rated current:32A,63A,80A,100A
Rated making and breaking capacity:3Ie,1.05Ue,COSΦ=0.65
Rated short circuit switched capacity:1500A
Rated short circuit fuse capacity:1200A/Is
Poles:1,2,3,4
1. HL30-100 ISOLATOR main switch products
2. CE&CB certificates
3. Plenty OEM experiences
4. New isolating item
Function and Feature:
Capable of switch electric circuit with load
Adaptable to padlock device
Capable of quickly releasing stored energy operation
Highlight of high making and breaking capacity
Used as main switch for household and similar installation
Rated Current(In): 20, 32, 63, 80, 100A
Rated Voltage(Un): 230VAC/400VAC
Number of Poles: 1P, 2P, 3P, 4P
Rated frequency: 50/60Hz
Electrical endurance: 10000 cycles
Mechanical endurance: 20000 cycles
Rated impulse withstand voltage(Uimp): 6kv
Type of Terminal: Lug type
Terminal Capacity: Cable up to 35mm2
Torque of screw: 2.5Nm
IP degree: IP 20
Width: 17.6mm/module
Standards: IEC60947-3, EN60947-31. HL ISOLATOR main switch products
2. CE&CB certificates
3. Plenty OEM experiences
4. New isolating item
Function and Feature:
Capable of switch electric circuit with load
Adaptable to padlock device
Capable of quickly releasing stored energy operation
Highlight of high making and breaking capacity
Used as main switch for household and similar installation
