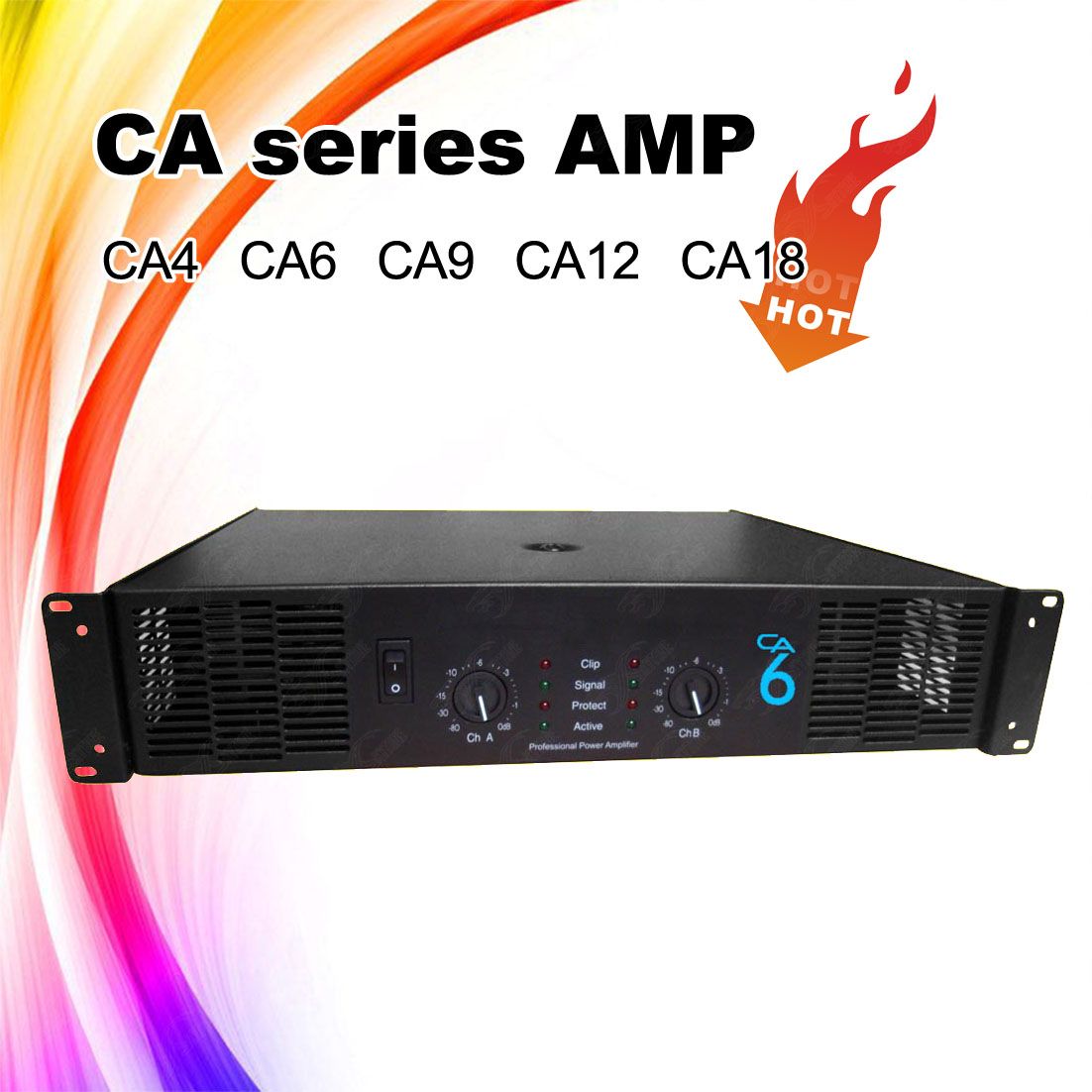

Ca6 Stage Equipment Power Amplifier
| Price: |
Negotiable/Piece |
| Trade Terms: |
CFR,EXW,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
CA6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ca6 |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
600W X2 @8ohms |
| Transistor: |
Toshiba Tube |
| Capacitor: |
Elna |
| Install Space: |
2u |
| Type: |
Professional Amplifier |
| Usage: |
Professional Preformence |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Conductive Mode: |
AB |
| Element Number: |
Prfessional Power Amplifier |
| Voltage: |
AC220V or AC110V |
| Output Number: |
2 |
| Sound Channel: |
2 Channels |
Product Description
CA6 Stage Equipment Power Amplifier2 channels power amplifier
High power pro audio amplifier
Professional speaker amplifier systemInformation of Skyotne Audio:Skytone Audio is one of the white hair of speaker audio business in China since 2004. We have our own factory with more than 300 designs of speaker audio equipment including professional speakers, power amplifiers, microphones, mixers and so on.
Our value message is "quality is our culture".
With us your business in safe, your money in safe.
We can offer you:- Competitive advantage products
- Factory price
- Confidentiality agreement
- Quality assurance contract
- After-sales service 24*7
- Alibaba trade assurance pay the money back in case of bad quality or late delivery
Description of Ca6 Stage Equipment Power Amplifier: --This CA Series Power Amplifier is H Class circuit.
--It is a circuit between the digital amplifier and traditional amplifier.
--And it's designed according to the professional HI-FI(high fidelity) standard.
--There're two groups of high-power tube installed on both sides, in order to enhance the cooling efficiency.
--The amp is elaborated by the imported Japanese original Toshiba tube and Japanese original ELNA capacitor, which is also used by the US GM company, for expanding flow output.
--H class circuit is a kind of fast recovery circuit which is equipped with high efficiency intelligent cold system, DC protection, short circuit protection, overheating and overload protection,ect. It can working at 2 Ohms stably for a long time.
--The amp also makes the sound of speakers to be wide field, structured, thin, clear,uninhibited, glossy, good texture, perfect fitting the high-end speakers.Other models of CA Series professional amplifier:CA4 pro amplifier equipment
CA9 2 channels power amplifier
CA12 professional audio amplifier
CA18 speaker amplifier systemSpecifications of Ca6 Stage Equipment Power Amplifier: | Technical Specification | CA4 | CA6 | CA9 | CA12 | CA18 |
| Peak Power (PMPO) | 4 ohms Bridge | 1711 | 2282 | 3042 | 4183 | 4943 |
| 8 ohms Bridge | 1316 | 1755 | 2340 | 3218 | 3803 |
| 2 ohms Stereo | 1800 | 2400 | 3200 | 4400 | 5200 |
| 4 ohms Stereo | 1350 | 1800 | 2400 | 3300 | 3900 |
| 8 ohms Stereo | 675 | 900 | 1200 | 1650 | 1950 |
| Rated power (20Hz-20KHz,≤0.1%THD) | 4 ohms Bridge | 1141 | 1521 | 2028 | 2789 | 3296 |
| 8 ohms Bridge | 878 | 1170 | 1560 | 2145 | 2535 |
| 2 ohms Stereo | 761 | 1014 | 1352 | 1859 | 2197 |
| 4 ohms Stereo | 585 | 780 | 1040 | 1430 | 1690 |
| 8 ohms Stereo | 450 | 600 | 800 | 1100 | 1300 |
| Safe protection | Dc protection | √ |
| Short circuit protection | √ |
Sensitivity overheating
management system | √ |
| Overheat protection | √ |
| Input overload protection | √ |
| Output overload protection | √ |
| Soft start protection | √ |
| Limiting protection | can reach 10V |
| Frequency Respones(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775v | 0.775v | 0.775v | 0.775v | 0.775v |
| link | Input link | XLR
1/4Jack | XLR
1/4Jack | XLR
1/4Jack | XLR
1/4Jack | XLR
1/4Jack |
| output link | Speakon | Speakon | Speakon | Speakon | Speakon |
| Filter electrolysis capacity | 40000uf | 40000uf | 60000uf | 60000uf | 60000uf |
| Input impedance | Balance input | 20Kohms |
| Unbalanced input | 10Kohms |
String sound attenuation
(20Hz-20KHz,8ohms) | ≥65dB |
noise-signal ratio
(A-Weight, rated power 8ohms)(S/N) | ≥108dB |
Damping coefficient
(1KHz&8ohms) | ≥900 |
Intermodulation distortion
(20Hz-20KHz) | ≤0.02% |
Total harmonic distortion
(20Hz-20KHz) | ≤0.05% |
Phase response
(1W&8ohms,20Hz-20KHz) | ≤±8° |
| Conversion rate | ≥60V/µs |
| Output circuit type | H |
Power consumption
(dual-channel drive is 4ohms,1/8RMS/230V) | 250 | 450 | 550 | 650 | 650 |
| Installation space | 2U | 3U |
| Cooling system | intelligent system,automatic adjustment according to changing temperature |
| Dimension(W×H×D) | 62*58*18CM | 63*59*21CM |
| Net Weight | 21kg | 27kg | 28kg | 37kg | 38kg |
| Technical support and after-sales service | 1 years Warranty (non-artificial damage) |
Applications of Ca6 Stage Equipment Power Amplifier:1. Large outdoor live concerts performance
2. Mid-size and Small Venues
3.Small-scale stage performance
4. Night club, bar
5. Church
6. Wedding
7. Hall, Stadium, theater, Auditorium
8. Professionals and sound system hire companies
9. Other entertainment performance place Certification of Ca6 Stage Equipment Power Amplifier:
