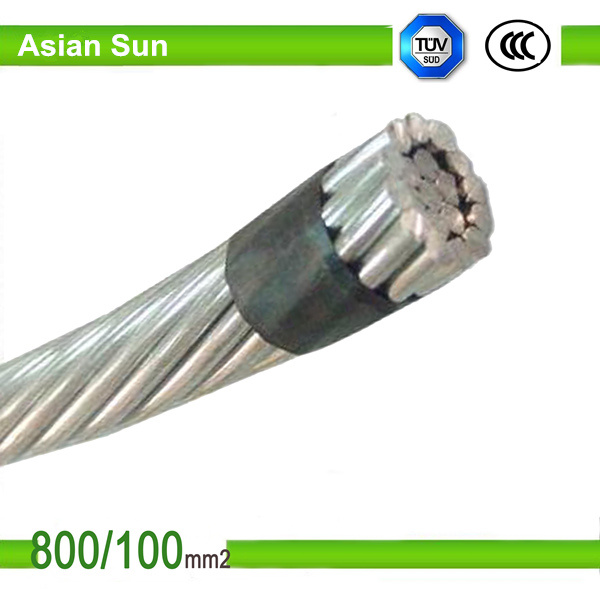

Cable and Wire for Electrical Project Distribution Overhead Bare ACSR/AAAC/AAC

Prod Model:	AS-AR-325
Supplier's Nature:	Manufacturer, Trading Company
Certificate:	ISO9001,CCC
Current:	DC & AC
Model No:	AAC/AAAC/ACSR Cable
Color:	Silver
Transportation:	Byair,Sea or Express
Voltage:	Low Voltage
Flame Test:	IEC 60332-1
Manufacturer:	6 Years
Usage:	Overhead Transmission Line
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Aluminum
Insulation Material:	PVC
Certification:	TUV
Application:	Construction, Overhead, Underground, Industrial, P
Range Of Application:	Construction, Overhead, Underground, Industrial, P
Brand:	Dayuan

Product Description

Brief Instruction for Bare conductor:

1.Applications:

Conductor(AAC,AAAC and ACSR) have been widely used as bare overhead transmission cable,primary and secondary distribution cable and used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.ACSR offers optimal strength for line design.Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

2.Service Performance:


(1).The permissible long-time operating temperature for aerial conductor is 70oC.

(2).Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3).When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4).Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.


3.Material Standard:

(1).The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).

(2).The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.

(3).Production can be arranged according to customers requirements for material standard,etc.

Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced


4.Construction:
aluminum conductors steel reinforced ACSR concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); or aluminum-clad (AW) - please see our ACSR/AW spec for more information. Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.

5.Specifications:
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-502 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)



Code	Size	Section		Stranding		Diameter		Total Weight	Rated Strength	Maximum Resisitance @20°C
		Al	Total	Al	Steel	Cable	Steel
	AWG or MCM	mm²		mm		mm		kg/km	kg	Ω/km
Wren	8	8.37	9.81	6×1.33	1×1.33	3.99	1.33	33.8	340	3.4017
Turkey	6	13.3	15.48	6×1.68	1×1.68	5.03	1.68	53.7	540	2.1135
Swan	4	21.15	24.71	6×2.12	1×2.12	6.35	2.12	85.4	846	1.3278
Swanate	4	21.15	26.52	7×1.96	1×2.61	6.53	2.61	99.7	1067	1.3133
Sparrow	2	33.62	39.23	6×2.67	1×2.67	8.03	2.67	136	1289	0.8343
Sparate	2	33.62	42.13	7×2.47	1×3.30	8.26	3.3	159	1650	0.8251
Robin	1	42.41	49.48	6×3.00	1×3.00	9.02	3	171	1612	0.6621
Raven	1/0	53.51	62.39	6×3.37	1×3.37	10.11	3.37	216	1987	0.5243
Quail	2/0	67.44	78.65	6×3.78	1×3.78	11.35	3.78	273	2401	0.416
Pigeon	3/0	85.02	99.23	6×4.25	1×4.25	12.75	4.25	344	3006	0.3304
Penguin	4/0	107	125	6×4.77	1×4.77	14.3	4.77	433	3787	0.2618
Owl	266.8	135	153	6×5.36	7×1.79	16.09	5.37	507	4330	0.2109
Waxwing	266.8	135	143	18×3.09	1×3.09	15.47	3.09	431	3117	0.2119
Partridge	266.8	135	157	26×2.57	7×2.00	16.31	5.98	547	5113	0.21
Oatrich	300	152	177	26×2.73	7×2.12	17.27	6.36	614	5755	0.1867
Piper	300	152	188	30×2.54	7×2.54	17.78	7.62	697	7000	0.1902
Merlin	336.4	171	180	18×3.47	1×3.47	17.37	3.47	544	3931	0.168
Linnet	336.4	171	198	26×2.89	7×2.25	18.31	6.74	689	6730	0.1663
Oriole	336.4	171	210	30×2.69	7×2.69	18.82	8.07	784	7865	0.1654
Chickadee	397.5	201	213	18×3.77	1×3.77	18.87	3.77	642	4499	0.1421
Ibis	397.5	201	234	26×3.14	7×2.44	19.89	7.32	814	7488	0.1411
Lark	397.5	201	248	30×2.92	7×2.92	20.47	8.77	927	9202	0.1401
Pelican	477	242	255	18×4.14	1×4.14	20.68	4.14	771	5347	0.1184
Flicker	477	242	273	24×3.58	7×2.39	21.49	7.16	914	7790	0.1178
Hawk	477	242	281	26×3.44	7×2.67	21.79	8.03	977	8880	0.1171
Hen	477	242	298	30×3.20	7×3.20	22.43	9.61	1112	10783	0.1165
Heron	500	253	312	30×3.28	7×3.28	22.96	9.84	1162	11090	0.1141
Osprey	556.5	282	298	18×4.47	1×4.47	22.33	4.47	899	6233	0.1014
Parakeet	556.5	282	319	24×3.87	7×2.58	23.22	7.73	1067	8999	0.101
Dove	556.5	282	328	26×3.72	7×2.89	23.55	8.66	1140	10019	0.1007
Eagle	556.5	282	348	30×3.46	7×3.46	24.21	10.39	1298	12606	0.1001
Peacock	605	307	346	24×4.03	7×2.69	24.21	8.03	1161	9771	0.0928
Squab	605	307	357	26×3.87	7×3.01	24.54	9.04	1240	11018	0.0925
Teal	605	307	376	30×3.61	19×2.16	25.25	10.82	1398	13567	0.0919
