Cable Terminal, Cable Conector, Fork Shape Cable-Shoe

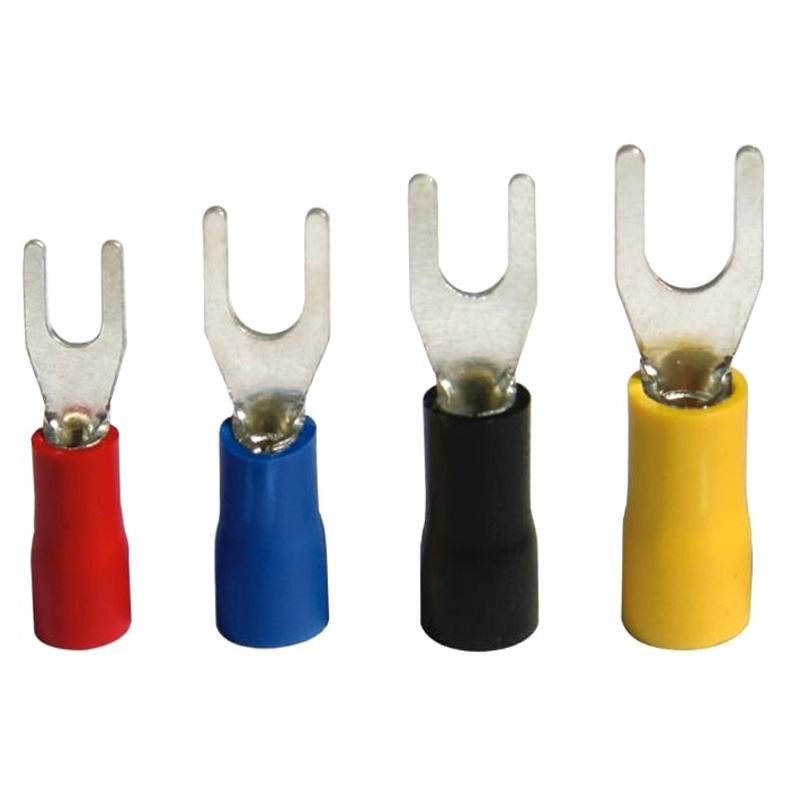

Name: Cable Terminal, Cable Conector, Fork Shape Cable-Shoe
Brand: all-electronics-online.com
SKU: 747294475
Availability: InStock
Rating: 4.3 (22 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RT-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Copper:	PVC Insulation
Application:	Conduct Electricity
Type:	Hook Terminals
Material:	Copper
Brand:	Refine

Product Description

Specification
1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, railway, ship building, spaceflight & avition, light industry, household electrical, computers, auto-equipment, etc.
2) Processing: Cold press
3) Material: T2 copper with tinned surface, cridible conductivity; PVC insulation cover, no break or rebound.

0.5~1.5mm 2 (22-16) Imax=19A
ITEM NO.	US SYSTEM	d2	DIMENSION					COLOR
ITEM NO.	OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	COLOR
RT1.25-3	#4	3.2mm	5.7	21.2	6.5	10	4.3	Red
RTS1.25-3.5	#6	3.7mm	5.7	21.2	6.5
RTL1.25-3.5	#6	3.7mm	6.4	21.2	6.5
RTS1.25-4	#8	4.3mm	6.4	21.2	6.5
RTM1.25-4	#8	4.3mm	7.2	21.2	6.5
RTL1.25-4	#8	4.3mm	8.1	21.2	6.5
RTS1.25-5	#10	5.3mm	8.1	21.2	6.5
RTL1.25-5	#10	5.3mm	9.5	21.2	6.5
RTS1.25-6	1/4	6.5mm	9.5	21.2	6.5
RTL1.25-6	1/4	6.5mm	12	21.2	11


1.5~2.5mm 2 (16-14) Imax=27A
ITEM NO.	US SYSTEM	d2	DIMENSION					COLOR
ITEM NO.	OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D (mm)	COLOR
RT2-3	#4	3.2mm	5.7	21.2	6.5	10	4.9	Blue
RTS2-3.5	#6	3.7mm	5.7	21.2	6.5
RTL2-3.5	#6	3.7mm	6.4	21.2	6.5
RTS2-4	#8	4.3mm	6	21.2	6.5
RTM2-4	#8	4.3mm	7.2	21.2	6.5
RTL2-4	#8	4.3mm	8.1	21.2	6.5
RTS2-5	#10	5.3mm	8.1	21.2	6.5
RTL2-5	#10	5.3mm	9.5	21.2	6.5
RTS2-6	1/4	6.5mm	9.5	21.2	6.5
RTL2-6	1/4	6.5mm	12	21.2	11

2.5~4mm 2 (14-12) Imax=37A
ITEM NO.	US SYSTEM	d2	DIMENSION					COLOR
ITEM NO.	OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D (mm)	COLOR
RT3.5-4	#8	4.3mm	8	24.8	7	12.5	6.2	Black
RT3.5-5	#10	5.3mm	8	24.8	7
RT3.5-6	1/4	6.5mm	12	28	12.1

4~6mm 2 (12-10) Imax=48A
ITEM NO.	US SYSTEM	d2	DIMENSION					COLOR
ITEM NO.	OF BOLTS	d2	B(mm)	L(mm)	F(mm)	H(mm)	D (mm)	COLOR
RT5.5-3.5	#6	3.7mm	8.3	25.2	7.5	12.5	6.7	Yellow
RTS5.5-4	#8	4.3mm	8.3	25.2	7.5
RTL5.5-4	#8	4.3mm	9	23.9	7.5
RT5.5-5	#10	5.3mm	9	23.9	7.5
RTS5.5-6	1/4	6.5mm	9	23.9	7.5
RTL5.5-6	1/4	6.5mm	12	31.2	12
RT5.5-8	5/16	8.4mm	14	30	11.5
