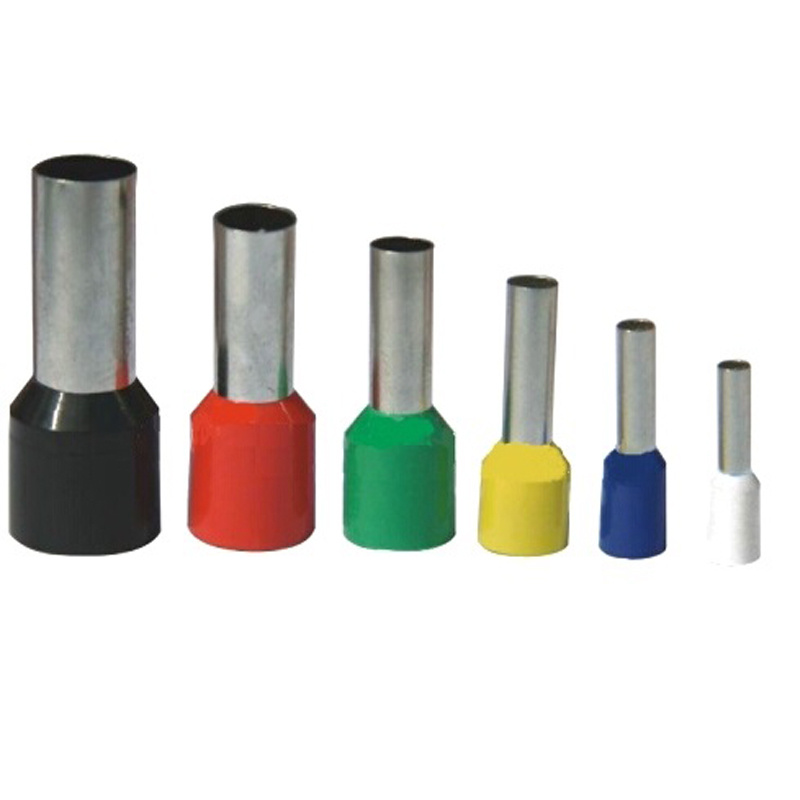

Insulated Cord End Terminal, Cable Ferrule

Name: Insulated Cord End Terminal, Cable Ferrule
Brand: all-electronics-online.com
SKU: 747295065
Availability: InStock
Rating: 4.5 (139 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	R0506
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Copper:	PVC Insulation
Application:	Conduct Electricity
Type:	Hook Terminals
Material:	Copper
Brand:	Refine

Product Description

Specification:
Application: Help multi core wire connection to brass terminal or electrical applicant
Usage: Put the multi core wire into tube, then use the crimping tools to crimp, insert this cable shoes to brass terminal or electrical applicant
Material: Copper / PVC
Fireproof: Yes
Cable range: 0.5 mm² - 50mm²

ITEM NO.	DIMENSION						CLNLE SQ		INSULATION COLOR
	F(mm)	L(mm)	W(mm)	B(mm)	D(mm)	C(mm)	A.W.G	mm 2
R0506	6	12	2.6	6	1.3	1	#22	0.5	Oranage
R0508	8	14
R0510	10	16							White
R0512	12	18
R7506	6	12.4	2.8	6.4	1.5	1.2	#20	0.75	White
R7508	8	14.6
R7510	10	16.4							blue
R7512	12	18.4
R7518	18	24.4
R1006	6	12.4	3	6.4	1.7	1.4	#18	1	Yellow
R1008	8	14.6
R1010	10	16.4							red
R1012	12	18.4
R1508	8	14.6	3.5	6.4	2	1.7	#16	1.5	Red
R1510	10	16.4
R1518	18	24.4							black
R2508	8	15.2	4	7	2.6	2.3	#14	2.5	Blue
R2512	12	19
R2518	18	25							grey
R4009	9	16.5	4.4	7.5	3.2	2.8	#12	4	Grey
R4012	12	19.5
R4018	18	25.5							Oranage
R6012	12	20	6.3	8	3.9	3.5	#10	6	Black

R6018	18	26							green
R10-12	12	21.5	7.6	9.5	4.9	4.5	#7	10	Milky white

R10-18	18	27.5							brown green
R16-12	12	22.2	8.8	10.2	6.2	5.8	#5	16	Green

R16-18	18	28.2							Milkty white
R25-16	16	29	11.2	13	7.9	7.5	#4	25	brown green

R25-22	22	35							black
R35-16	16	30	12.7	14	8.7	8.3	#2	35	Greyish brown
R35-25	25	39
R50-20	20	36	15.3	16	10.9	10.3	#1	50	Olive
R50-25	25	41
