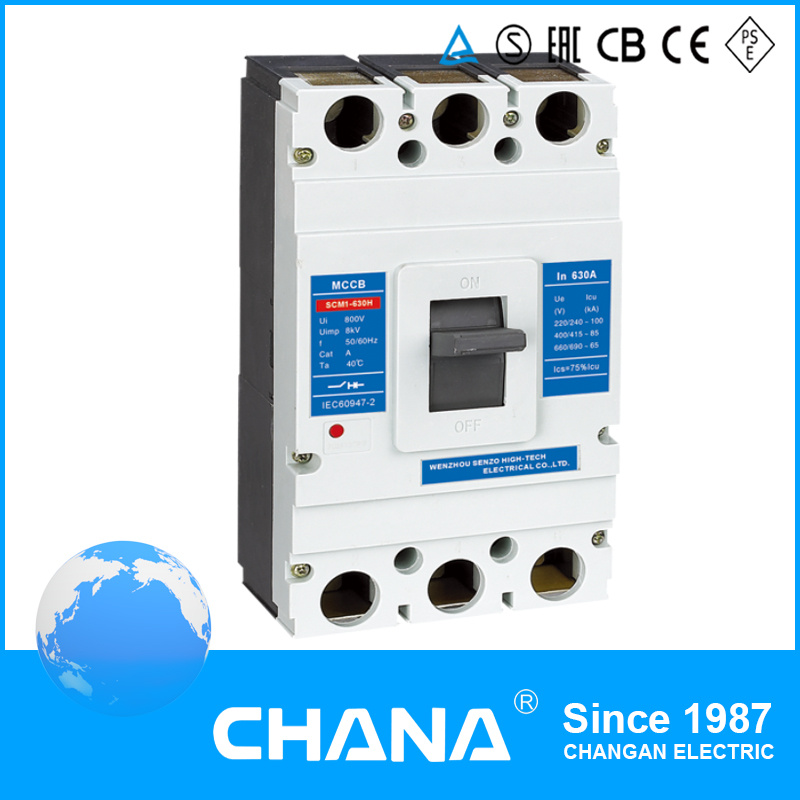

Cam1 3/4poles 800V 630A MCCB Moulded Case Circuit Breaker
| Price: |
US $ 10.2-10.7/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
CAM1-630 |
| Rated Voltage: |
690V |
| Pole: |
3p/4p |
| Rated Current In: |
400, 500, 630A |
| Export Market: |
World |
| Quality: |
AAA |
| Company Size: |
Large |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Certification: |
CCC |
| Poles Number: |
3/4 |
Product Description
Description For CAM1 Series MCCB ApplicationCAM1 series moulded case circuit breaker (named as MCCB in the following) is a new type breaker which is used for infrequent exchange and startup in AC 60Hz condition. The MCCB is of protection function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.
The MCCB can be devided into L; M; H type according to their rated limit short circuit breaking capacity.
The MCCB is advantageous for its compact body, high breaking capacity (some even on flying arc), short arc-casing and superior aseismatic function.
The product complies with IEC60947-2, GB14048.2 Specification | Type | CAM1-63L/CAM1-63M | CAM1-100L/CAM1-100M | CAM1-225/CAM1-250 |
| Rated frame level current Inm(A) | 63 | 100 | 225 |
| Rated current In(A) | 10,12,16,20,25,32,40,50,63, | 16,20,25,32,40,50,63,80,100 | 125,160,180,200,225,250 |
| Rated insulated voltage Ui (AC V) | 500 | 800 | 800 |
| Rated impulse stand voltage Uimp(V) | 8000 | 8000 | 8000 |
| Rated working voltage Ue (AC V) | 400/415 | 400/415 | 400/415 |
| Poles | 3 | 4 | 3 | 4 | 3 | 4 |
| Rated limited short circuit breaking capacity level | L | M | L | M | L | M | L | M | L | M | L | M |
| Rated imited short circuit breaking capacity Icu(KA) | 400/415V | 20 | 30 | 20 | 30 | 30 | 50 | 30 | 50 | 35 | 50 | 35 | 50 |
| Rated working short circuit breaking capacity Ics(KA) | 400/415V | 15 | 22.5 | 15 | 22.5 | 22.5 | 37.5 | 22.5 | 37.5 | 26.25 | 37.5 | 26.25 | 37.5 |
| Operation characteristic (Times) | Connected | 2000 | 2000 | 2000 |
| Break | 10000 | 10000 | 10000 |
| Outlook dimension | L | 135 | 150 | 165 |
| W | 78 | 103 | 92 | 122 | 107 | 142 |
| H | 73.5 | 81.5 | 72 | 88 | 86 | 103 |
| Weight (g) | 735 | 846 | 1464 | 1952 | 1257 | 1493 | 1493 | 1900 | 1714 | 2014 | 1900 | 2014 |
| Arcing distance (mm) | 0, ≤50 | 0, ≤50 | 0, ≤50 |
