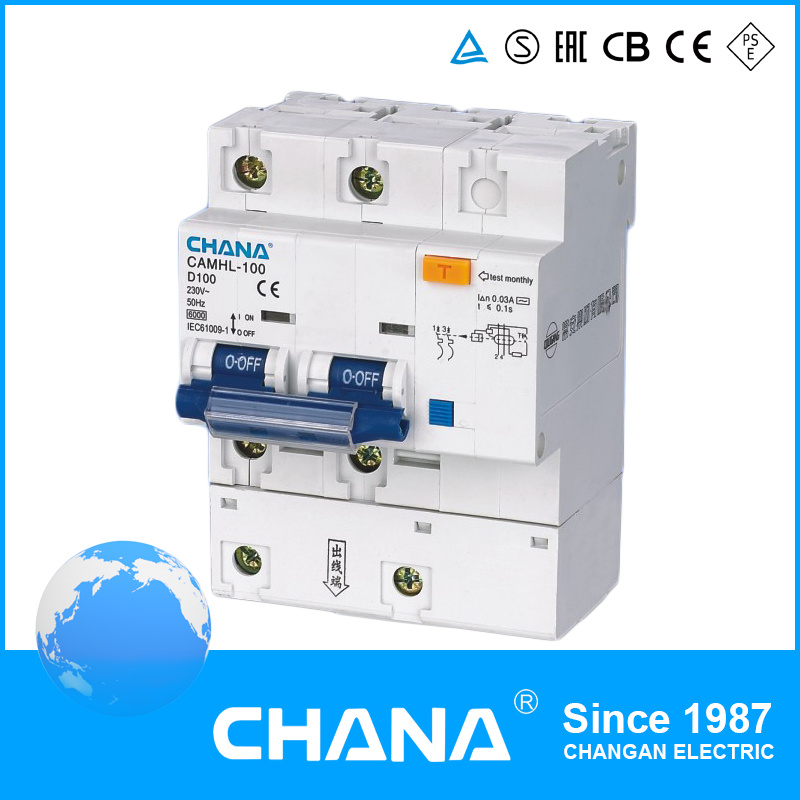

Camhl-100 Electronic Type RCBO (RCCB with Overcurrent Protection)

Prod Model:	CAMHL-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturer:	Original Factory
Rated Current In:	6, 10, 16, 20, 25, 32, 40, 50, 63A
Company Size:	Over 2000 Stuff
Company Credit Rate:	AAA
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	CCC
Installation:	DIN Rail
Poles Number:	2p(1p+N),4p (3p+N)
Function:	RCCB with Overcurrent Protection

Product Description

Free samples can be provided!!!
Product Description

Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: C, D
Rated current In MCB+add-on RCD block: 63, 80, 100A
Poles: 2P(1P+N), 4P (3P+N)
Rated voltage Ue: 240/415V
Rated sensitivity In MCB+add-on RCD block: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A(In40A) 630(In40A)
Rated short-circuit capacity lcn: 6, 000A
Break time under In: 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4, 000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2

Mechanical Features
Electrical life: 2, 000
Mechanical life: 4, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal size top/bottom for cable: 50mm2
Terminal size top/bottom for busbar: 50mm2
Tightening torque 2.5 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)
