| Prod Model: |
WA8200-00, WA7200-00 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
47~860MHz |
| C/CTB: |
61dB |
| C/Cso: |
60dB |
| Noise Figure: |
12dB |
| Supply Voltage: |
35~90V; 135~250V |
| Consumption: |
30W |
| Dimension: |
340*220*160 |
| Tube Type: |
Transistor Amplifier |
| Function: |
Trunk Amplifier |
| Type: |
CATV |
| Usage: |
CATV |
Product Description

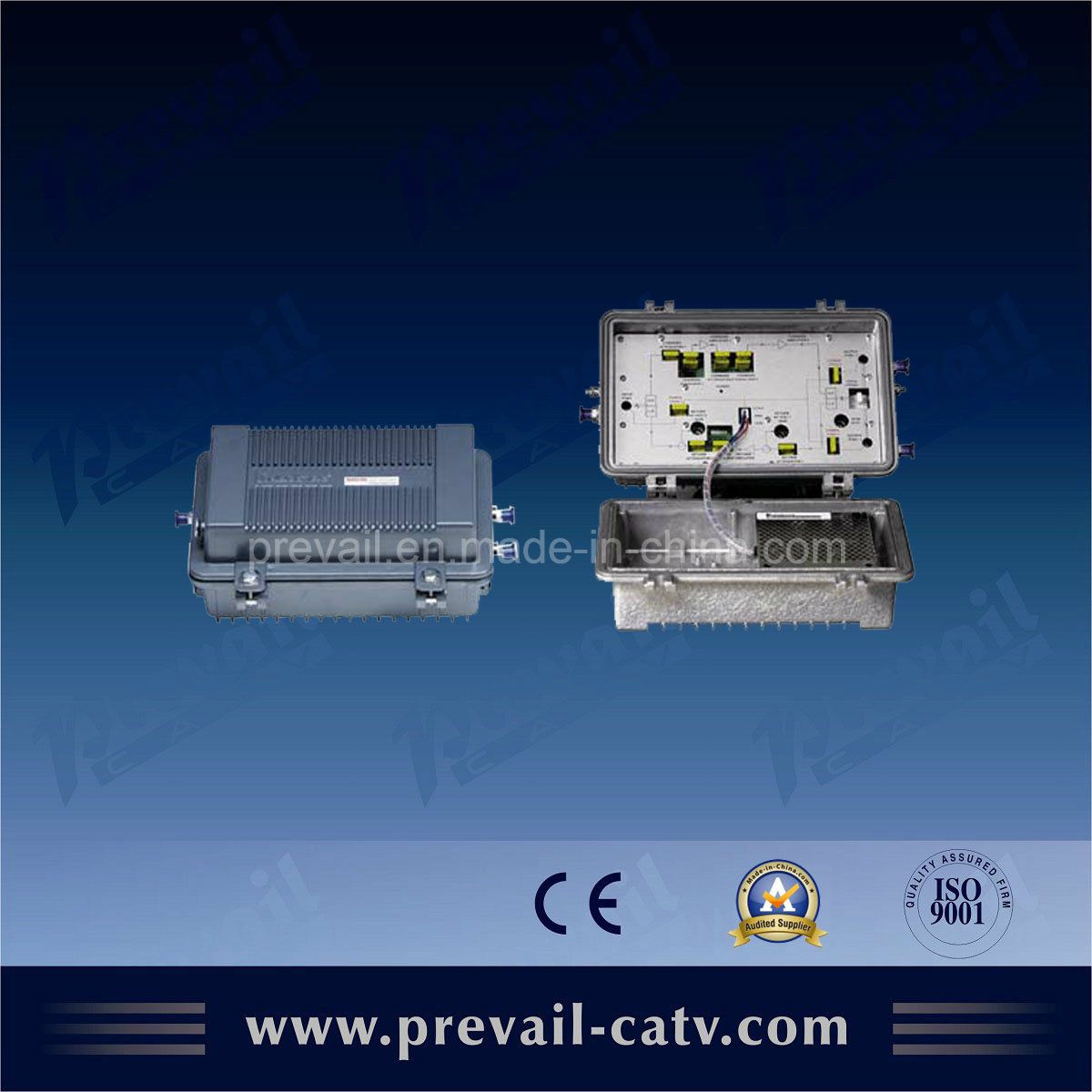

CATV Trunk Amplifier feature:
1. CATV Amplifier adopt low noise Philips or NEC imported module, power doubler module or Gallium Arsenide module output, non-linear index is high.
2. Equalizer, attenuator have fixed and adjustable structure for selection.
3. Output splitter or coupler can plug change to make engineering debug more agile.
4. Forward and reverse fore-and-aft have independent test port, easy to debug.
5. Return channel adopt Philips or Motorola amplify module, good quality duplex filter, plug fixed attenuators and equalizers, makes it high C/N, easy to debug.
6. High reliable switch power and strict anti-thunder system fit for safe steady work in worse weather.
7. Suitable large or middle-size bi-directional network main trunk signal transmission, can substitute imported and famous brand machine.
ITEM
| UNIT
| PARAMETER
|
WA8227-XX
| WA8230-XX
| WA7227-XX
| WA7230-XX
| WA5227-XX
| WA5230-XX
|
Down Transmission
|
Frequency Range
| MHz
| 47/87-860
| 47/87-750
| 47/87-550
|
Rated Gain
| dB
| 27
| 30
| 27
| 30
| 27
| 30
|
Min Fill Gain
| dB
| ≥ 27
| ≥ 30
| ≥ 27
| ≥ 30
| ≥ 27
| ≥ 30
|
Rated Input Level
| dBµ V
| 72
|
Rated Output Level
| dBµ V
| 99
| 102
| 99
| 102
| 99
| 102
|
Flatness in Band
| dB
| ± 0.75
|
Noise Figure
| dB
| ≤ 10
|
Return Loss
| dB
| ≥ 16
|
C/CTB
| dB
| ≥ 67
| ≥ 61
| ≥ 70
| ≥ 62
| ≥ 74
| ≥ 66
|
C/CSO
| dB
| ≥ 64
| ≥ 60
| ≥ 66
| ≥ 62
| ≥ 68
| ≥ 64
|
Group Delay
| ns
| ≤ 10(112.25MHz/116.68MHz)
|
Signal to Hum Ratio
| %
| < 2
|
Gain Steady
| dB
| -1.0 - +1.0
|
Upgo Transmission
|
Frequency Range
| MHz
| 5 - 30/65
|
Rated Gain
| dB
| 12
| 16
| 20
| 24
|
Min Fill Gain
| dB
| ≥ 12
| ≥ 16
| ≥ 20
| ≥ 24
|
Max Output Level
| dBµ V
| ≥ 110
|
Flatness in Band
| dB
| ± 0.75
|
Noise Figure
| dB
| ≤ 12
|
Return Loss
| dB
| ≥ 16
|
Carrier to Second Order Intermodulation Ratio
| dB
| ≥ 52
|
Group Delay
| ns
| ≤ 20(57MHz/59MHz)
|
Signal to Hum Ratio
| %
| < 2
|
General Performance
|
Special Impedance
| Ω
| 75
|
Supply Voltage
| V
| A: AC(135 - 250)V: B: AC(35 - 90)V
|
Voltage Srtoke(10/700µ s)
| KV
| > 5
|
Consumption
| W
| 30
|
Dimention
| mm
| 340(L) × 220(W) × 160(H)
|

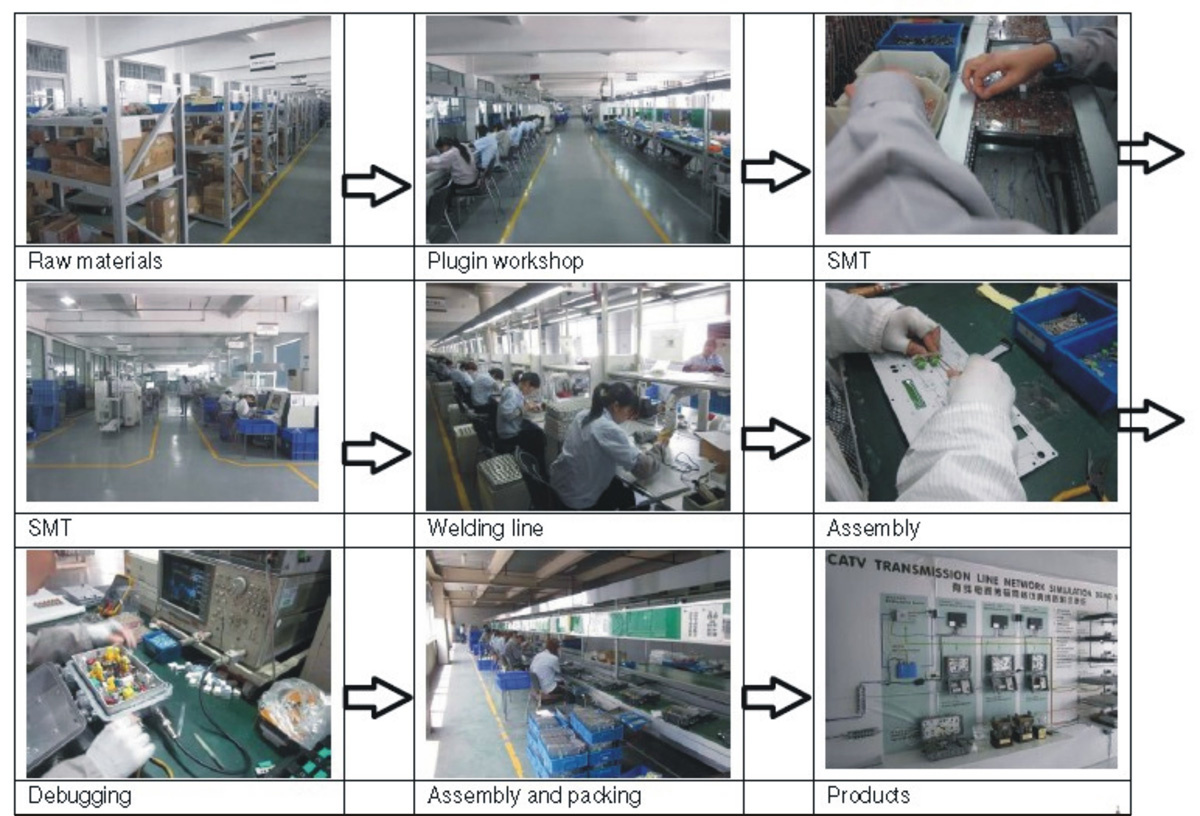

Flow Chart
Prevail was founded in 2001, Hangzhou Prevail Optoelectronic Equipment Co., Ltd. Which is one of the earliest, largest, and most professional factory in CATV industry.
The factory is located in Industrial Development area, Guali town, Xiaoshan Hangzhou City, near Hangzhou Xiaoshan International Airport and Shanghai-Hangzhou-NingboExpressway. It is a scale and specialization company of CATV equipment research, development and production. Its production scale, products' quality and marketcoverageis in front of other companies in domestic market.
We have perfect modern enterprisemanagement system, also have a high-quality new product development, design, testing and detection teams, technical personnel who have junior degree is more than 20% of the total number of workers.
With the effort of many years in CATV equipment manufacturing industry, the technology, performance, research and developmentlevel is in the leading position of domestic market. We are good at studying RF technology and optical fiber transmission equipment, and set up the research and development center of digital TV, which make our products cover with wholeCATVsystem, analog and digital head-end equipment, 1550nm and 1310nm optical fiber transmission equipment, RF system transmission (bi-directional) equipment. This center offers a variety of optimization solutions and technical support for tri-networks integration; Offers technology planning and support for backbone remote transmission and large-scale IP backbone network. We are the professional manufacturer of CATV with domestic largest selection of CATV products currently.
Our company always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing ISO9001 Quality Management System, actively implement the ISO 14001 Environmental Management System and OHSAS18001 Occupational Health and Safety Management Systems Certification.
We have million square meters of production workshop. Our company has industry-leading production assembly and debugging lines, SMT, high and low temperature oven room, the vibration test equipment, and other detection equipments, including HP, Rhodes and the gas, Anritsu and so on.
The aim of Prevail is doing good-quality products and taking the road of international brand. Our products cover with all cities and towns of domestic, even Europe, North America and other countries. To provide valuable, high-quality products and services to meet customer demand as our mission, with a new image and new fashion guide.
To build the best brand, and strive to become the domestic and world production and R &D base of Chinese CATV equipment.
