| Prod Model: |
WR1004SJL-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
2 Receiver+1ONU+4eoc Master |
Product Description
Summary
WR-1004SJL-E Outdoor Node is our latest integrated optical node. Can be configured
and combined flexibly based on different networking schemes. Such as traditional
bidirectional optical node suit to "CMTS+CM" networking scheme, or data type
bidirectional optical node suit to "EPON+EOC" networking scheme.

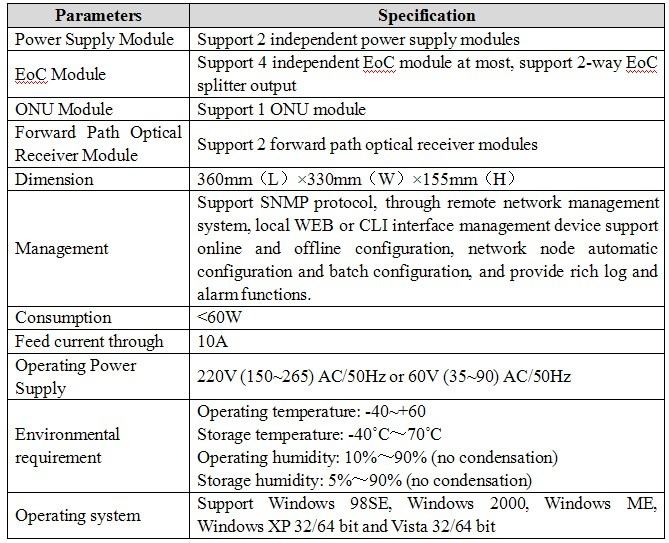

WR-1004SJL Outdoor Node works as data type bidirectional optical node, can be configured 2 forward
optical receiver modules, 1 ONU module, 4 EOC head end modules (HomePlug AV scheme) and 2
switching power supply modules at most.
Performance Characteristics
1. Catv optical receiving part adopts advanced optical AGC technology, the input optical power range
extended to -8~+2dBm.
2. CATV optical receiving part: RF operating bandwidth extended to 1GHz, each way maximum
output level up to 112dBμv.
3. CATV optical receiving part: full electric control attenuation and equilibrium circuit, and achieve
remote operation by NMS.
4. Built-in perfect status monitoring circuit and support national standard II class network management
transponder.
5. Can be configured 1 ONU module and 4 EOC head end modules (HomePlug AV scheme) at most.
6. RF amplifier part adopts quick plug modular design, can quickly replace RF amplifier module
without dismantling the RF cable connector.
|
Item |
Unit |
Performance Parameters |
|
Forward Optical Receive Part |
|
Optical Parameters |
|
Optical AGC Control Range |
dBm |
+2~-8/-7/-6/-5 adjustable |
|
Optical Return Loss |
dB |
>45 |
|
Optical Receiving Wavelength |
nm |
1100 ~ 1600 |
|
Optical Connector Type |
_ |
FC/APC, SC/APC or specified by the user |
|
Optical Fiber Type |
_ |
Single mode |
|
Link Performance |
|
C/N |
dB |
≥ 51 |
-1dBm optical input, output level 106dBμV (splitter output)
EQ 8dB |
|
C/CTB |
dB |
≥ 65 |
|
C/CSO |
dB |
≥ 60 |
|
RF Parameters |
|
Frequency Range |
MHz |
45/87 ~1003 |
|
Flatness in Band |
dB |
±0.75 |
|
Rated Output Level |
dBμV |
≥ 108 (Four-way splitter output);
≥ 112(Two-way independent output);
(when the optical AGC control range is +2~-8) |
|
Max Output Level |
dBμV |
≥ 114 (when four-way splitter output and the optical AGC control range is +2~-5) |
|
Output Return Loss |
dB |
(85 ~550MHz)≥16 / (550~1000MHz) ≥14 |
|
Redundant Receiver Isolation |
dB |
≥75 |
|
Output Impedance |
Ω |
75 |
|
Electrical control EQ range |
dB |
0~15 (1dB stepping) |
|
Electrical control ATT range |
dB |
0~20 (1dB stepping) |
