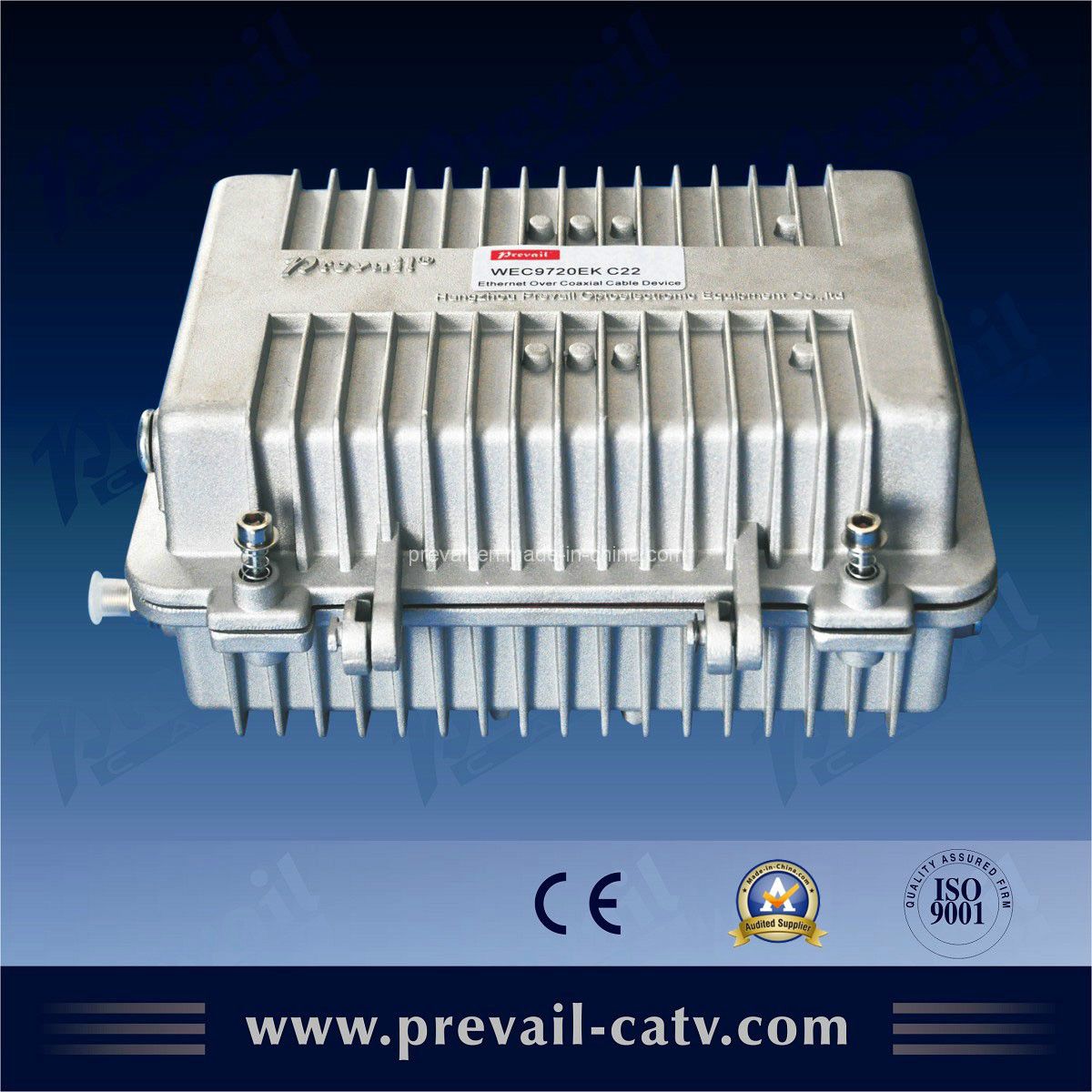

Eoc Master Eoc Modem
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
WEC9720EK C22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Eoc Master |
| Type: |
CATV（Cable Television）Equipment |
Product Description
= High speed: Adopt high-speed multi-carrier modulation technique, physical layer rate up to 700Mbps.
= Strong anti-interference ability: OFDM modulation, multi-carrier technology ensures stable data transmission in the noise environment.
= High security: Adopt 128 bit DES data encryption; effectively protect the data transmission security.
= Strong network adaptability: Adopt standard interface, signal can transparently transmit to amplifier, tap etc equipment, and realize fast installation and debugging.
= Long transmission distance: The maximum attenuation distance of the coaxial network no less than 500m.
= Provide 220V AC and 60V AC two power input interface.
= Rich service application types: Support EoC link multicast monitor, multicast manage the whole EoC network. Support service priorities distinction based on IP-TOS, ensure the time-sensitive application of VOD and VoIP. Support VLAN (802.1Q) standard, ensure privacy requirements.
= Strong network management function: Support WEN9000 network management platform centralized management function. Provide support for the effective and stable operational network.| LED | Colour | Status | Description |
| POWER | Red | Normal ON | Power supply is connected |
| OFF | Power supply is unconnected |
UPLINK/
ETH1 | Green | Normal ON | UPLINK port is connected but no communication |
| Flash | UPLINK port is sending or receiving data |
| OFF | UPLINK port is unconnected |
| MGMT/ETH2 | Green | Normal ON | MGMT port is connected but no communication |
| Flash | MGMT port is sending or receiving data |
| OFF | MGMT port is unconnected |
| SYSTEM | Green | Slow flash | System operating normally |
| Fast flash | System busy |
| OFF or normal ON | System operating abnormally |
| CABLE | Green | OFF | Cable port is unconnected |
| Flash | Cable port is sending or receiving data |
| Normal ON | Cable port is connected but no communication |

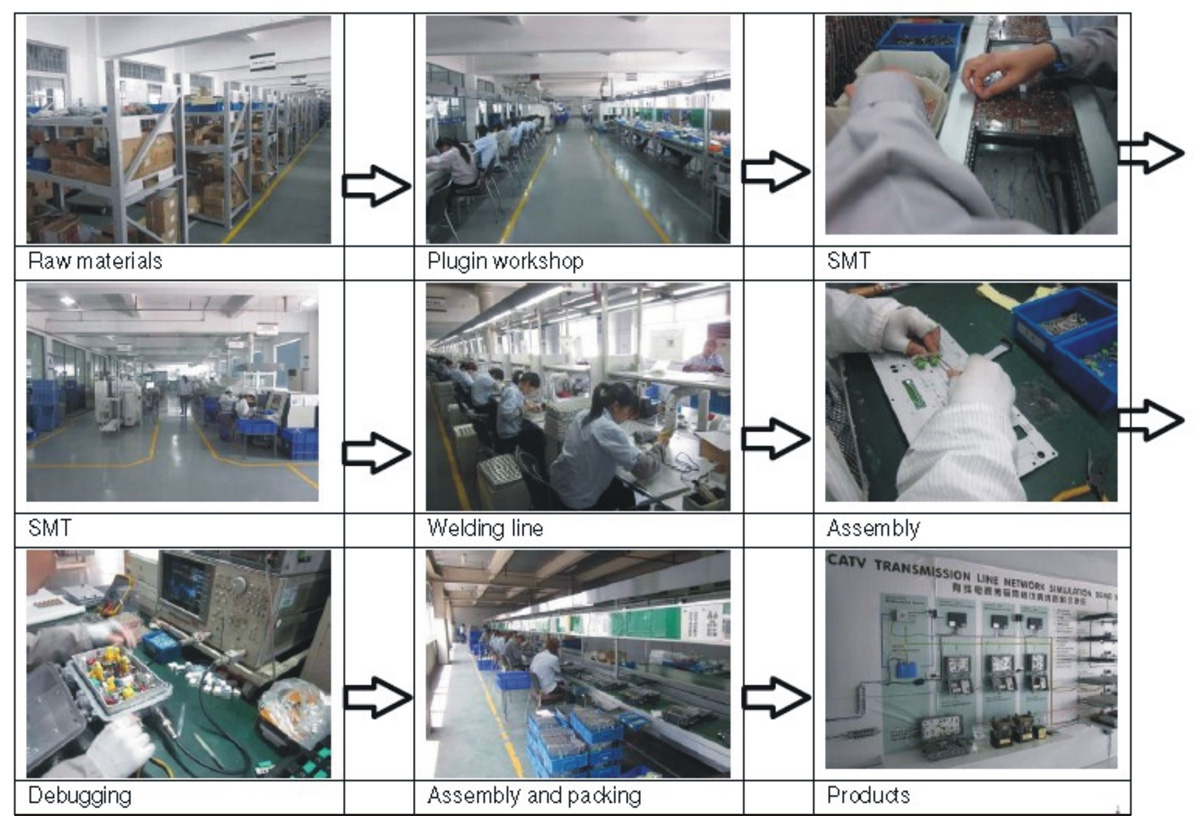

Flow Chart
Prevail was founded in 2001, Hangzhou Prevail Optoelectronic Equipment Co., Ltd. Which is one of the earliest, largest, and most professional factory in CATV industry.
The factory is located in Industrial Development area, Guali town, Xiaoshan Hangzhou City, near Hangzhou Xiaoshan International Airport and Shanghai-Hangzhou-NingboExpressway. It is a scale and specialization company of CATV equipment research, development and production. Its production scale, products' quality and marketcoverageis in front of other companies in domestic market.
We have perfect modern enterprisemanagement system, also have a high-quality new product development, design, testing and detection teams, technical personnel who have junior degree is more than 20% of the total number of workers.
With the effort of many years in CATV equipment manufacturing industry, the technology, performance, research and developmentlevel is in the leading position of domestic market. We are good at studying RF technology and optical fiber transmission equipment, and set up the research and development center of digital TV, which make our products cover with wholeCATVsystem, analog and digital head-end equipment, 1550nm and 1310nm optical fiber transmission equipment, RF system transmission (bi-directional) equipment. This center offers a variety of optimization solutions and technical support for tri-networks integration; Offers technology planning and support for backbone remote transmission and large-scale IP backbone network. We are the professional manufacturer of CATV with domestic largest selection of CATV products currently.
Our company always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing ISO9001 Quality Management System, actively implement the ISO 14001 Environmental Management System and OHSAS18001 Occupational Health and Safety Management Systems Certification.
We have million square meters of production workshop. Our company has industry-leading production assembly and debugging lines, SMT, high and low temperature oven room, the vibration test equipment, and other detection equipments, including HP, Rhodes and the gas, Anritsu and so on.
The aim of Prevail is doing good-quality products and taking the road of international brand. Our products cover with all cities and towns of domestic, even Europe, North America and other countries. To provide valuable, high-quality products and services to meet customer demand as our mission, with a new image and new fashion guide.
To build the best brand, and strive to become the domestic and world production and R &D base of Chinese CATV equipment.
