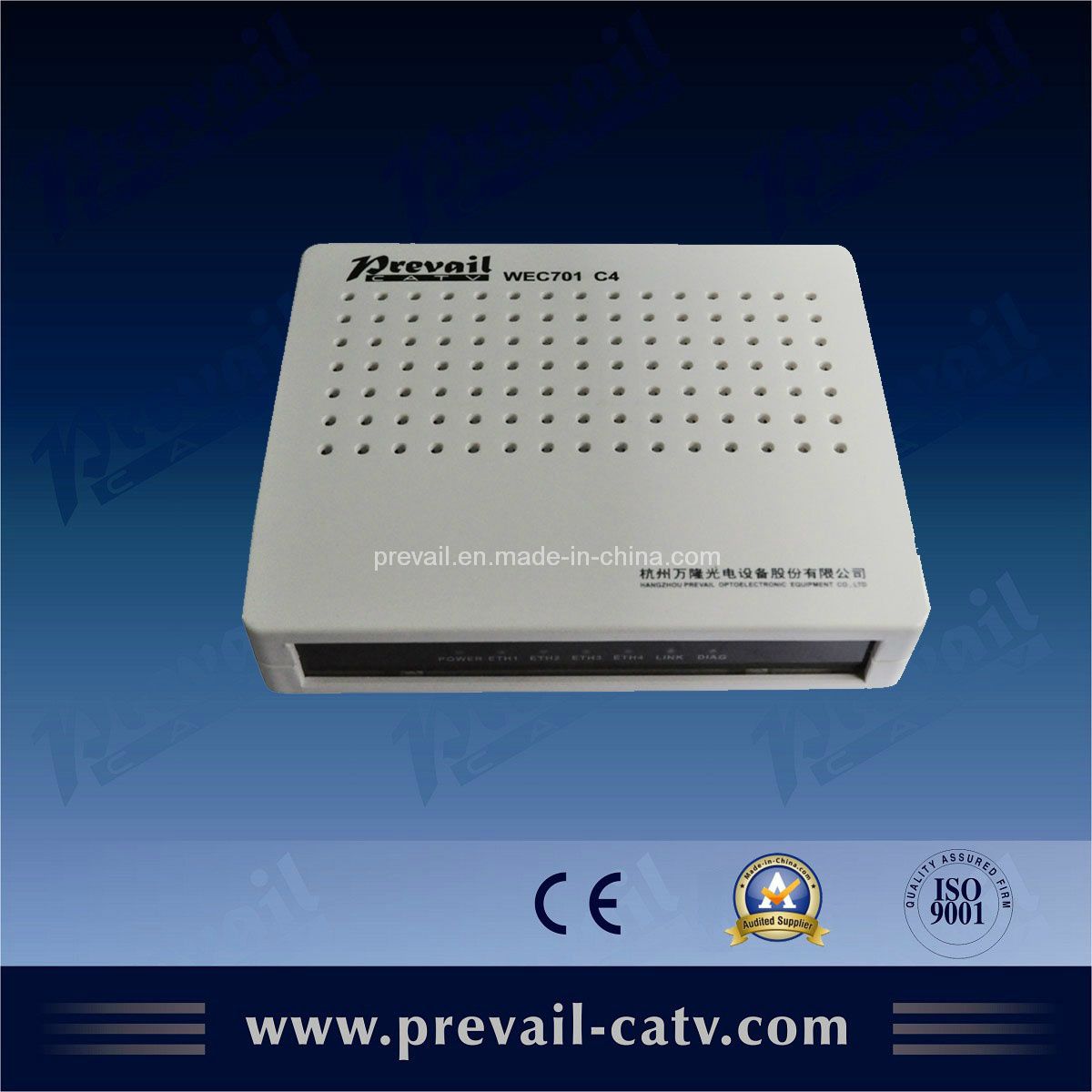

CATV Eoc Slave Terminal (WEC701 C4)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
WEC701 C4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chip: |
7411 |
Product Description
1. Physical layer rate up to 700Mbps
2. OFDM modulation
3. Adopt 128 bit DES data encryption
4. One cable two signal
5. Support Sqlite database
6. support both remote and local configuration
|
Parameters |
Specification |
|
Standard |
Ethernet standard IEEE802.3, IEEE802.3X, IEEE802.3u |
|
EoC protocol |
Meet HomePlug AV/IEEE P1901 relative standard |
|
Protocol |
TDMA, CSMA/CA |
|
Transmission rate |
Physical layer rate: 700Mbps, MAC layer rate: 350Mbps |
|
Frequency range |
7.5~65MHz |
|
Transmitting power |
≤118 dBuV |
|
Modulation technique |
OFDM anti-noise modulation 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO |
|
Transmission distance |
<500m (<60dB attenuation) |
|
Security |
128-bit DES data encryption |
|
VLAN |
IEEE802.1Q (VLAN lagging) |
|
QoS |
Support ToS and CoS data packet classification |
|
Flow control |
Support port-based flow control |
|
Management |
Provide two-layer OAM manage channel, remote configuration management can be done through EoC NMS; and centralized management can be done By concentrator WEB and CLI;
Support online configuration and offline configuration, support automatic configuration and batch configuration; |
|
Safety |
Support business certification function; support Sqlite database security storage |
|
User interface |
2/4 RJ45 ethernet interfaces
2 F-type coaxial interface |
|
Power consumption |
<5W |
|
Operating power supply |
Input: 180V~220V AC /50Hz
Output: 12V DC, 1A |
|
Environmental requirements |
Operating temperature: 0 °C ~50 °C
Storage temperature: -20 °C ~70 °C
Operating humidity: 10%~90% (No condensation)
Storage humidity: 5%~90% (No condensation) |
|
Operating system |
Support Windows 98SE, Windows 2000, Windows ME, Windows XP 32/64 bit and Vista 32/64 bit |
Prevail was founded in 2001, Hangzhou Prevail Optoelectronic Equipment Co., Ltd. Which is one of the earliest, largest, and most professional factory in CATV industry.
The factory is located in Industrial Development area, Guali town, Xiaoshan Hangzhou City, near Hangzhou Xiaoshan International Airport and Shanghai-Hangzhou-NingboExpressway. It is a scale and specialization company of CATV equipment research, development and production. Its production scale, products' quality and marketcoverageis in front of other companies in domestic market.
We have perfect modern enterprisemanagement system, also have a high-quality new product development, design, testing and detection teams, technical personnel who have junior degree is more than 20% of the total number of workers.
With the effort of many years in CATV equipment manufacturing industry, the technology, performance, research and developmentlevel is in the leading position of domestic market. We are good at studying RF technology and optical fiber transmission equipment, and set up the research and development center of digital TV, which make our products cover with wholeCATVsystem, analog and digital head-end equipment, 1550nm and 1310nm optical fiber transmission equipment, RF system transmission (bi-directional) equipment. This center offers a variety of optimization solutions and technical support for tri-networks integration; Offers technology planning and support for backbone remote transmission and large-scale IP backbone network. We are the professional manufacturer of CATV with domestic largest selection of CATV products currently.
Our company always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing ISO9001 Quality Management System, actively implement the ISO 14001 Environmental Management System and OHSAS18001 Occupational Health and Safety Management Systems Certification.
We have million square meters of production workshop. Our company has industry-leading production assembly and debugging lines, SMT, high and low temperature oven room, the vibration test equipment, and other detection equipments, including HP, Rhodes and the gas, Anritsu and so on.
The aim of Prevail is doing good-quality products and taking the road of international brand. Our products cover with all cities and towns of domestic, even Europe, North America and other countries. To provide valuable, high-quality products and services to meet customer demand as our mission, with a new image and new fashion guide.
To build the best brand, and strive to become the domestic and world production and R &D base of Chinese CATV equipment.
