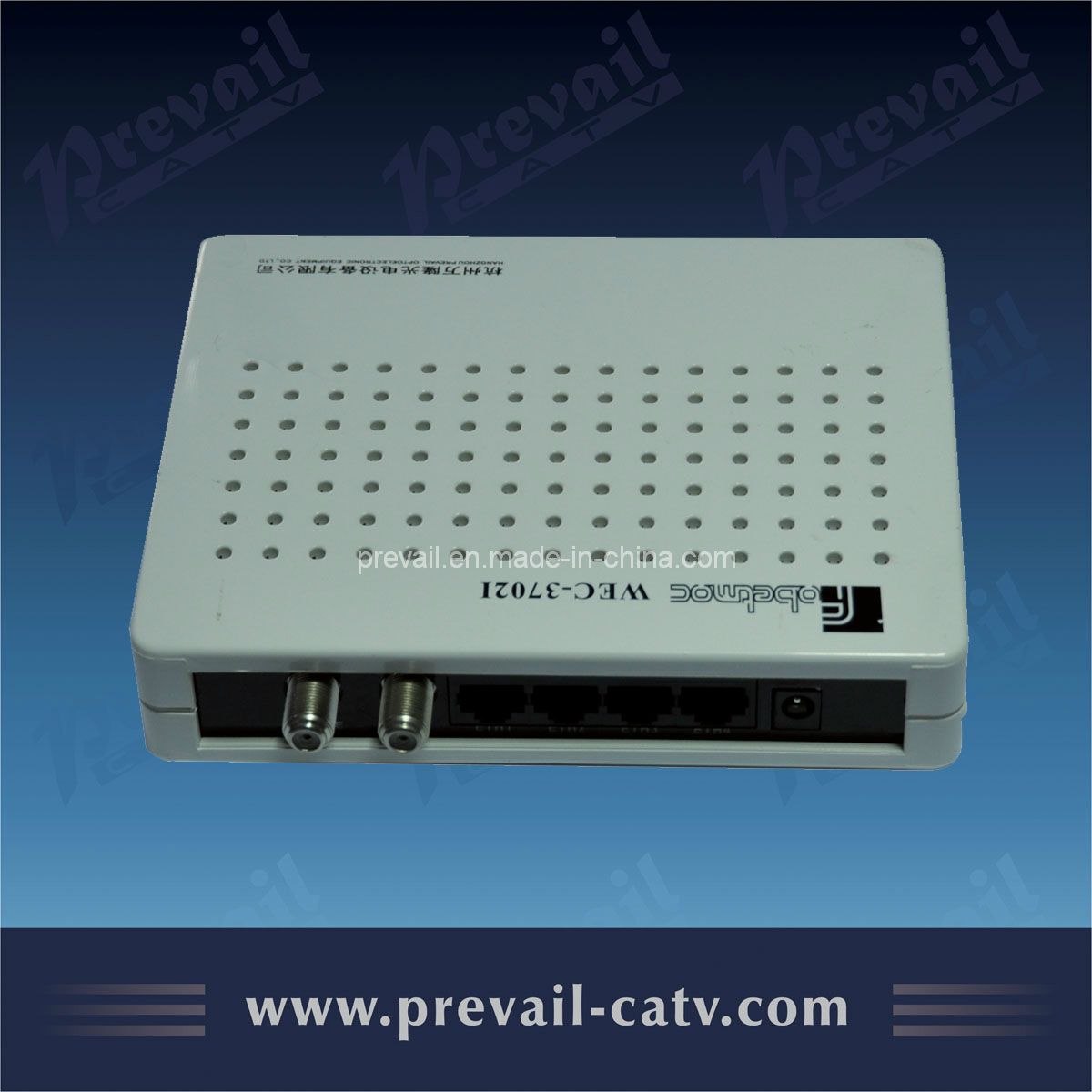

| Prod Model: |
WEC3702I-C4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chip: |
6400 Series |
| Type: |
Wired |
| Certification: |
CE |
| Condition: |
New |
| Usage: |
Eoc |
| Support Network: |
Network Master |
Product Description
EOC Slaver feature:
1. EOC slaver Transmit two waves of different frequency bands in one cable. It can connect any interface of CATV and provide TV and data signal;
2. EOC Slaver Provide 4× 10/100 Base T adaptive RJ 45 interfaces for connecting the network devices, such as computer and set top box;
3. EOC Slaver Support OFDM and multicarrier modulation schemes for stably transmitting data in noisy environment;
4. Support 128-bit DES data encryption for protecting the security of data transmission;
5. Compatible with Windows 2000, Windows XP, Linux, Mac OS X and other operation systems that support Ethernet;
6. By connecting coaxial cable, data can be transmitted conveniently between one CNU device and one CBAT device;
7. Support SNMP management interface, through the front-end network management system can easily manage and maintain;
8. Powerful data services, support 802.1Q, 802.1P, IGMP, flow control, to fully meet the requirements of multi-service access for radio and television operators.
| Parameters | Specification |
| Model | WEC-3702I C4 |
| Standard | Ethernet standards: IEEE802.3, IEEE802.3X, IEEE802.3u |
| EoC Protocol | Compatible with HomePlug AV standard |
| Protocol | TDMA, CSMA/CA |
| PHY Data Rate | 200 Mbps |
| Modulation Schemes | OFDM antinoise modulation, 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO |
| Data Channel | 7.5~30MHz |
| Transmit Power | ≤ 110 dBuV |
| Data Transfer | Support data transfer between Ethernet and coaxial networks |
| Transmission Distance | < 500m(< 60dB attenuation) |
| Security | 128-bit DES data encryption |
| VLAN | IEEE802.1Q |
| QoS | Support ToS and CoS data packet classification |
| Flow Control | Support interface-based flow control |
| SNMP | SNMPv2 |
| Management | Support layer 2 OAM management channel, network management can be completed through the remote NMS. Also CBAT centralized WEB and CLI management is provided |
| LED Indicator | Power, Ethernet, LINK, DIAG |
| User Interface | = 4 x RJ45 Ethernet interfaces
= 2 x F. Cat. Coaxial interfaces |
| Consumption | ≤ 5W |
| Power Supply | = Input: 180V~220V AC /50Hz
= Output: 12V DC, 0.5A |
| Environment Requirements | = Operation temperature: 0C~50C
= Storage temperature: -20C~70C
= Operation humidity: 10%~90%(non-condensing)
= Storage humidity: 5%~90%(non-condensing) |
| Operation System | Windows 2000, Windows XP, Linux, Mac OS X and other operation systems that support Ethernet |

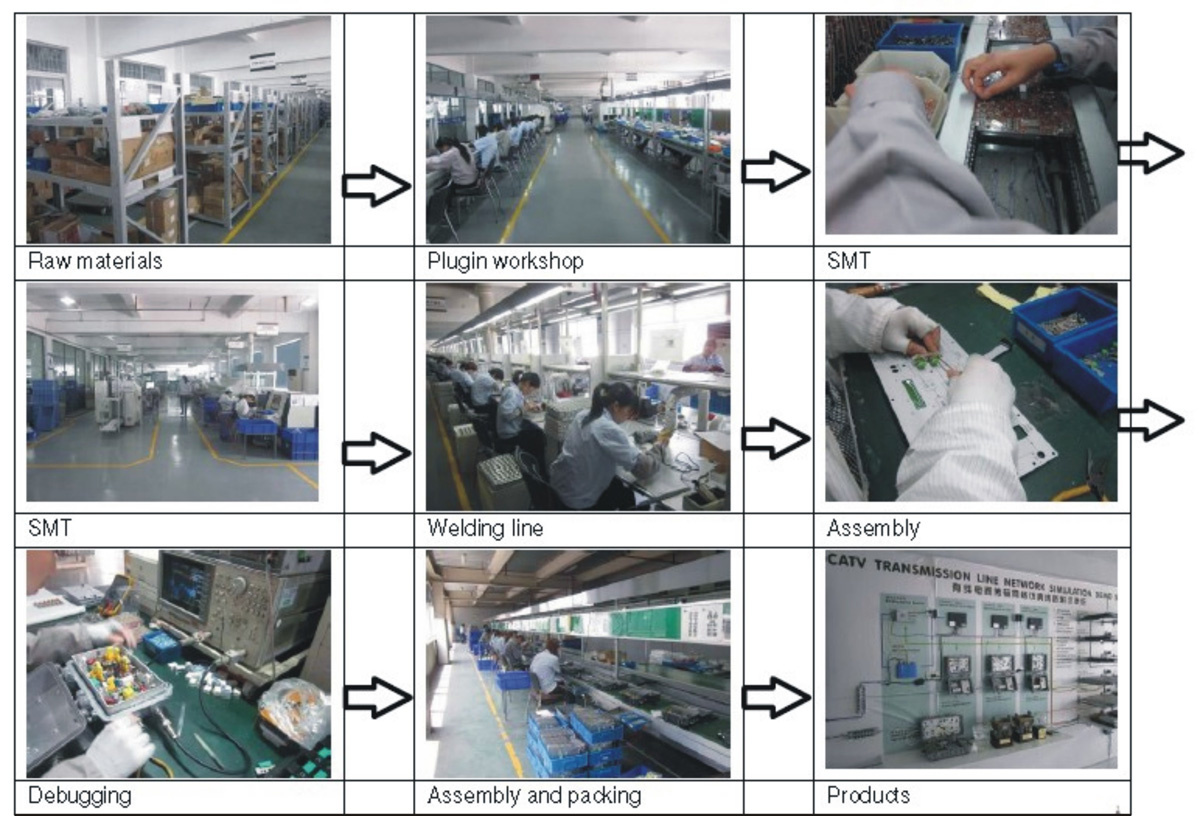

Flow Chart
Prevail was founded in 2001, Hangzhou Prevail Optoelectronic Equipment Co., Ltd. Which is one of the earliest, largest, and most professional factory in CATV industry.
The factory is located in Industrial Development area, Guali town, Xiaoshan Hangzhou City, near Hangzhou Xiaoshan International Airport and Shanghai-Hangzhou-NingboExpressway. It is a scale and specialization company of CATV equipment research, development and production. Its production scale, products' quality and marketcoverageis in front of other companies in domestic market.
We have perfect modern enterprisemanagement system, also have a high-quality new product development, design, testing and detection teams, technical personnel who have junior degree is more than 20% of the total number of workers.
With the effort of many years in CATV equipment manufacturing industry, the technology, performance, research and developmentlevel is in the leading position of domestic market. We are good at studying RF technology and optical fiber transmission equipment, and set up the research and development center of digital TV, which make our products cover with wholeCATVsystem, analog and digital head-end equipment, 1550nm and 1310nm optical fiber transmission equipment, RF system transmission (bi-directional) equipment. This center offers a variety of optimization solutions and technical support for tri-networks integration; Offers technology planning and support for backbone remote transmission and large-scale IP backbone network. We are the professional manufacturer of CATV with domestic largest selection of CATV products currently.
Our company always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing ISO9001 Quality Management System, actively implement the ISO 14001 Environmental Management System and OHSAS18001 Occupational Health and Safety Management Systems Certification.
We have million square meters of production workshop. Our company has industry-leading production assembly and debugging lines, SMT, high and low temperature oven room, the vibration test equipment, and other detection equipments, including HP, Rhodes and the gas, Anritsu and so on.
The aim of Prevail is doing good-quality products and taking the road of international brand. Our products cover with all cities and towns of domestic, even Europe, North America and other countries. To provide valuable, high-quality products and services to meet customer demand as our mission, with a new image and new fashion guide.
To build the best brand, and strive to become the domestic and world production and R &D base of Chinese CATV equipment.
