| Prod Model: |
QR500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Coaxial Cable |
| Module Number: |
Qr500 |
| Center Conductor: |
3.15±0.01mm Solid Copper/Copper Aluminum |
| Dielectric: |
13.03±0.05mm Foam PE |
| Outer Conductor: |
13.72mm Aluminum Tube |
| Outer Conductor Thickness: |
0.343mm |
| Jacket: |
15.49+0.05mm PVC / PE |
| Jacket Wall Thickness: |
0.89mm |
| Messenger(Optional): |
2.77mm Steel |
| Jelly/Apd: |
Per Customer' Special Requirement |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
CCC |
| Type: |
Coaxial Cable |
| Model: |
Qr500 |
Product Description

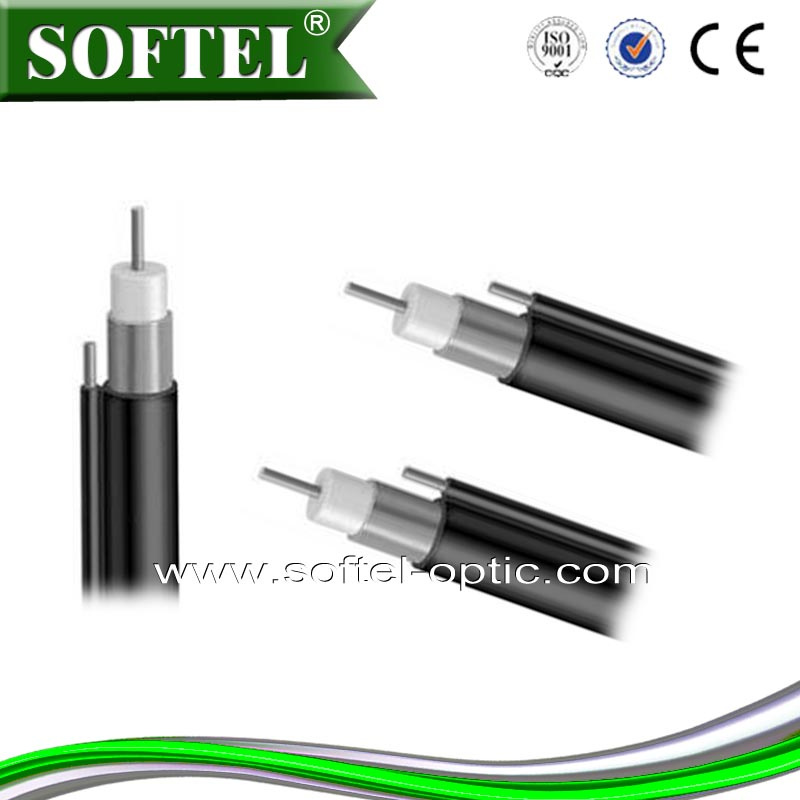

High Quality Outdoor CATV Trunk Coaxial Cable with figure 8 self Supporting Steel Messenger
-Construction
Center conductor: 3.15± 0.01mm Solid Copper/Copper Aluminum
Dielectric: 13.03± 0.05mm foam PE
Outer Conductor: 13.72mm Aluminum Tube
Outer Conductor: 0.343mm
Jacket: 15.49+0.05mm PVC / PE
Jacket Wall Thickness: 0.89mm
Messenger(optional): 2.77mm Steel
Jelly/APD: Per Customer' Special Requirement
-Characteristics
Min. Bending radius: 10.2mm(jacketed)
Max. Pulling tension: 100kg
Min. Thickness strength
Of messenger: 816kg
Impedance: 75+2Ohm
Capacitance: 50+3nF/km, 15.3+1pF/ft
Velocity of Propagation: 88%
-Construction
Center conductor: 3.15± 0.01mm Solid Copper/Copper Aluminum
Dielectric: 13.03± 0.05mm foam PE
Outer Conductor: 13.72mm Aluminum Tube
Outer Conductor: 0.343mm
Jacket: 15.49+0.05mm PVC / PE
Jacket Wall Thickness: 0.89mm
Messenger(optional): 2.77mm Steel
Jelly/APD: Per Customer' Special Requirement
-Characteristics
Min. Bending radius: 10.2mm(jacketed)
Max. Pulling tension: 100kg
Min. Thickness strength
Of messenger: 816kg
Impedance: 75+2Ohm
Capacitance: 50+3nF/km, 15.3+1pF/ft
Velocity of Propagation: 88%
1. Basic Construction
| | | 500 | 500JCA | 500 Messenger |
| | | | | |
| Conductor | Material | BC/CCA | BC/CCA | BC/CCA |
| | | | |
| Nom.Dia. | 2.77mm | 2.77mm | 2.77mm |
| |
| | | | | |
| Dielectric | Material | Foam PE | Foam PE | Foam PE |
| | | | |
| Nom.Dia. | 11.43mm | 11.43mm | 11.43mm |
| |
| | | | | |
| Out | Material | Al | Al | Al |
| | | | |
| No.Thick | 0.35mm/0.5mm | 0.35mm/0.5mm | 0.35mm/0.5mm |
| conductor |
| | | | |
| Nom.Dia | 12.7mm | 12.7mm | 12.7mm |
| |
| | | | | |
| | Material | PE | PE | PE |
| Jacket | | | | |
| Nom.Thick | 0.76mm | 0.76mm | 0.76mm |
| | | | | |
| | Nom.Dia. | 14.22mm | 14.22mm | 14.22mm |
| | | | | |
| Messenger | | / | / | 2.77mm |
| | | | | |
2. Basic Characteristics
| Nominal Impedance(ohm) | | 75±3 |
| Nominal Velocity of Propagation(%) | | 87 |
| Nominal Capacitance(pF/m) | | 55±3.0 |
| Sparker Test(VAC) | | 4000 |
| SRL(dB) | | 30-470 | | ≥20 |
| | | | | |
| | 470-1000 | | ≥18 |
| | | |
| | | | | |
| | | Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) |
| | | 5 | 0.16 | | 0.52 |
| | | | | | |
| | | 55 | 0.54 | | 1.77 |
| | | | | | |
| | | 211 | 1.09 | | 3.58 |
| | | | | | |
| | | 300 | 1.31 | | 4.3 |
| Attenuation | | | | | |
| | 350 | 1.43 | | 4.69 |
| 68°F (20ºC) | | | | | |
| | 400 | 1.53 | | 5.02 |
| | | | | | |
| | | 450 | 1.63 | | 5.35 |
| | | | | | |
| | | 500 | 1.82 | | 5.97 |
| | | | | | |
| | | 750 | 2.16 | | 7.09 |
| | | | | | |
| | | 865 | 2.34 | | 7.68 |
| | | | | | |
| | | 1000 | 2.52 | | 8.27 |
| | | | | | |
Purchase Notice:
Please select the material of inner conductor :BC or CCS
Please select the material of jacket:PVC,PVC with RoHs,PE or LSZH.
Please select the packing:reel with carton or wooden spool with carton.
Please show us your own specification if it's not the same as ours.
Please inform us if you have any other requirement.
DETAILS OF 500/500JCA/500M
3. Packing Details
| Item No.: | 500 | 500M |
| | | |
| Specification: | 2.77BC/CCA+11.43FPE+AL | 2.77BC/CCA+11.43FPE+ALTUBE |
| TUBE +14.22PE | +14.22PE+2.77MESSENGER |
| |
| | | |
| Packing: | 1000M/Wooden spool | 1000M/ Wooden spool |
| | | |
| Wooden Spool Size: | 84*57*40CM | 84*57*40CM |
| | | |
| Image: | | |
| | Wooden Spool |
| G.W.: | 151.94KG/ Wooden spool | 228.94KG/ Wooden spool |
| | | |
| N.W.: | 134.94KG/ Wooden spool | 198.94KG/ Wooden spool |
| | | |
| Quantity in a 20 | 48 Wooden spools | 48 Wooden spools |
| Feet Container |
| | |
| | | |
