| Prod Model: |
EKL4-32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Poles: |
1p+N |
| Certificate: |
CE |
| Electrical Life: |
2000 |
| Mechanical Life: |
2000 |
| Rated Current: |
6/10/16/20/32A |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
CCC |
Product Description

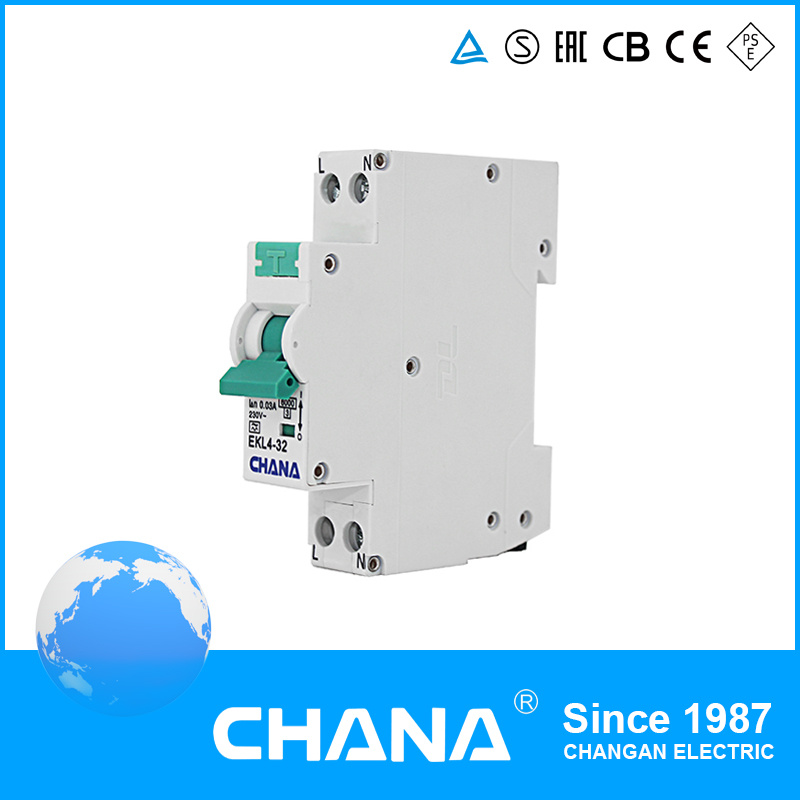

Product Description OF RCBO
EKL4-32 RCCB
Technical Data OF RCBO
RCBO Electrical Features
Type (wave form of the earth leakage sensed): AC
Thermo-magnetic release characteristic: C
Rated current In: 6, 10, 16, 20, 25, 32A
RCBO Poles: 1P+N
Rated voltage Ue: 230/240V
Rated sensitivity In: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A
Rated short-circuit capacity lcn: 6, 000A
RCBO Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
RCBO Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features OF RCBO
Electrical life: 2, 000
Mechanical life: 2, 000
Contact position indicator: Yes
RCBO Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation OF RCBO
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
Terminal size top/bottom for busbar: 16mm2 18-5AWG
RCBO Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top
About US:
Changan Group Co., Ltd specializing in the R&D, manufacture and sale of low voltage electric applicants, such as MCB, MCCB, RCCB, Indicators, AC contactors and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS.
2. We have 27 years of manufacture and 17 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Bengal, Thailand, south American, Mid-east market and so on.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptable
Warranty:
1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
| Items | Protection degree | Rated Current | Electrical Life | Mechanical Life |
| EKL4-32 | IP20 | 6/10/16/20/25/32A | 2000 | 2000 |
| EKL4-32 | IP20 | 6/10/16/20/25/32A | 2000 | 2000 |
| EKL4-32 | IP20 | 6/10/16/20/25/32A | 2000 | 2000 |
| EKL4-32 | IP20 | 6/10/16/20/25/32A | 2000 | 2000 |
