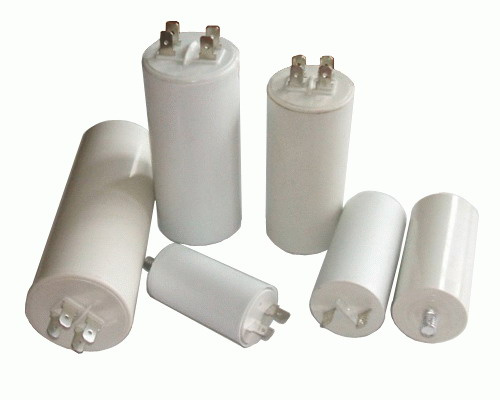

Cbb60 Motor Run Capacitors White Plastic

Prod Model:	CBB60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Aluminum Electrolytic Capacitor
Application:	High Voltage
Capacitance:	>100uf
Manufacturing Material:	Plastic

Product Description

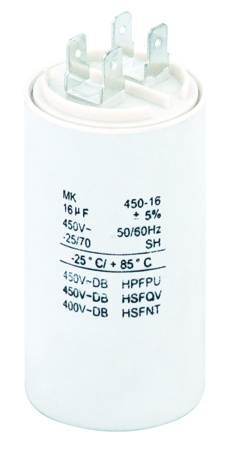

CBB60 Motor Run Capacitors
Plastic or Aluminum can, round type


Features and use:
It is small in bulk, has long life-span and good self-healing Characteristic. It is widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase water pump motor.

Technical SpecificationsAlternate design include the followings:
Flat bottom-metal fixing stud M8×12
Fasten terminals 0.8×6.35 simple or double
Standard distance p=13.2mm±0.5
Unipolar cable-bipolar cable
Discharge resistance-plastic cover

Special specs are available on request

Detailed Product Description
Specifications:
1) Climate type: 40 / 70 / 21
2) Capacitance tolerance: ±5%, ±10%
3) Testing voltage:
    a) Between leading-out: 1.75UR, 10S no breakdown
    b) Between leading-out end and shell: 2,200V AC, 10S no breakdown
4) Insulation resistance:
    a) Between leading-out ends: ≥3,000mΩ
    b) Between leading-out end and shell: ≥1,000mΩ
5) Tangent of loss angle: tgδ≤0.002 (50Hz)
6) Used especially for micro water pumps, cleaning machines, washing machines,
    and single-phase water pump motors
7) Small and light weight
8) Long lifespan and good self-healing

This product is of good electrical characteristics, self-concrescence, less spoilage. It is applied to the AC, DC and pulsant circuit of electromotor, water pump, air compressor, air-condition, etc.
